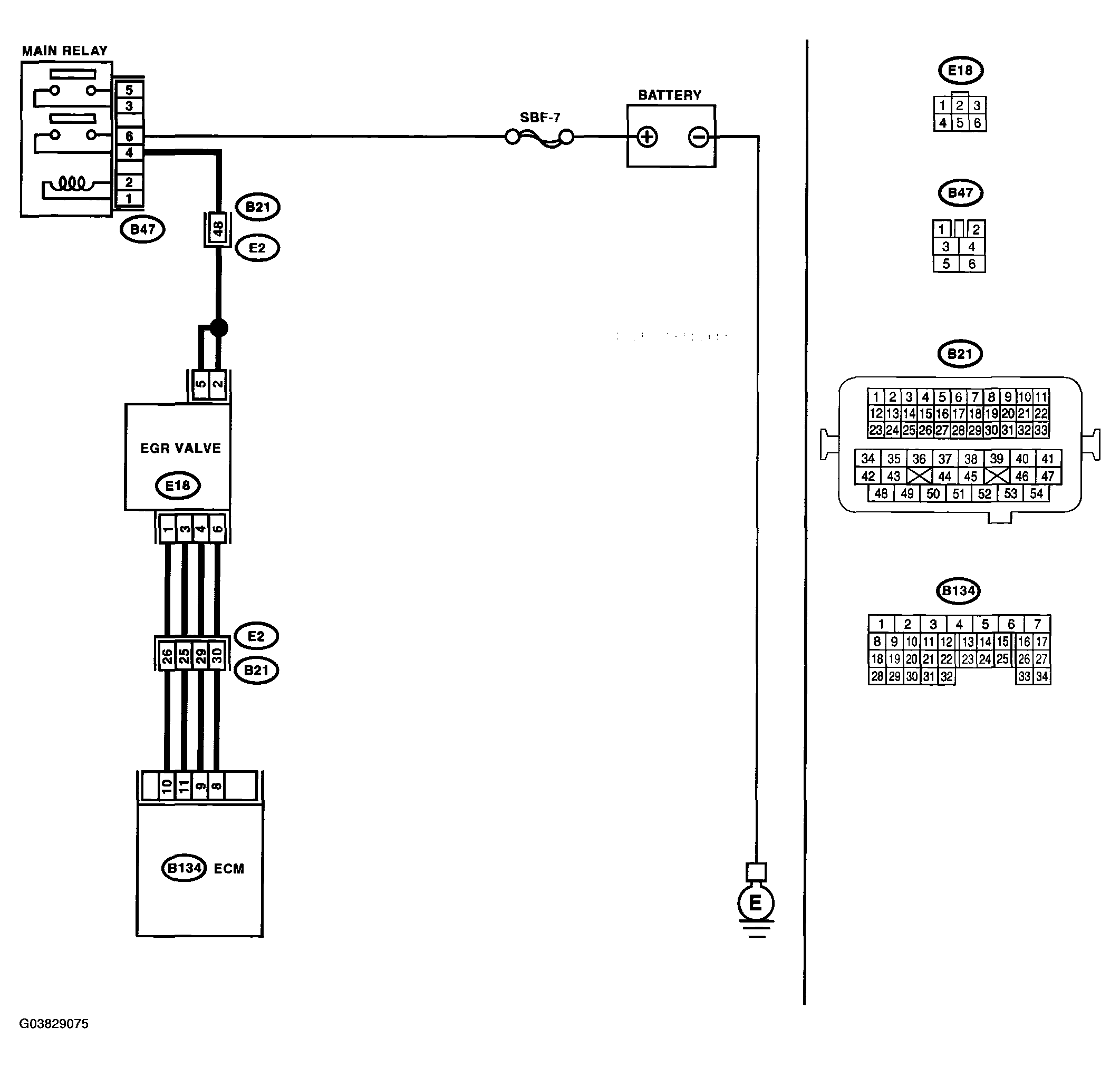

Wiring Diagram:
WARNING: This page is about a different variant/trim than selected.
DTC P1498 DIAGNOSTIC PROCEDURE
| Step | Check | Yes | No |
|---|---|---|---|
1. CHECK POWER SUPPLY TO EGR SOLENOID VALVE.
|
Is the measured value more than 10 V? | Go to step 2. | Repair harness and connector.
NOTE:
In this case, repair the following:
|
2. CHECK HARNESS BETWEEN ECM AND EGR SOLENOID VALVE.
|
Is the measured value less than 1 Ω? | Go to step 3. | Repair harness and connector.
NOTE:
In this case, repair the following:
|
3. CHECK HARNESS BETWEEN ECM AND EGR SOLENOID VALVE.
|
Is the measured value more than 1 MΩ? | Go to step 4. | Repair open or ground short circuit in harness between ECM and EGR solenoid valve connector. |
| 4. CHECK POOR CONTACT. Check poor contact in ECM and EGR solenoid valve connector. |
Is there poor contact in ECM or EGR solenoid valve connector? | Repair poor contact in ECM or EGR solenoid valve connector. | Replace EGR solenoid valve. < Ref. to EGR VALVE . > |
