Wiring Diagram:

WARNING: This page is about a different variant/trim than selected.

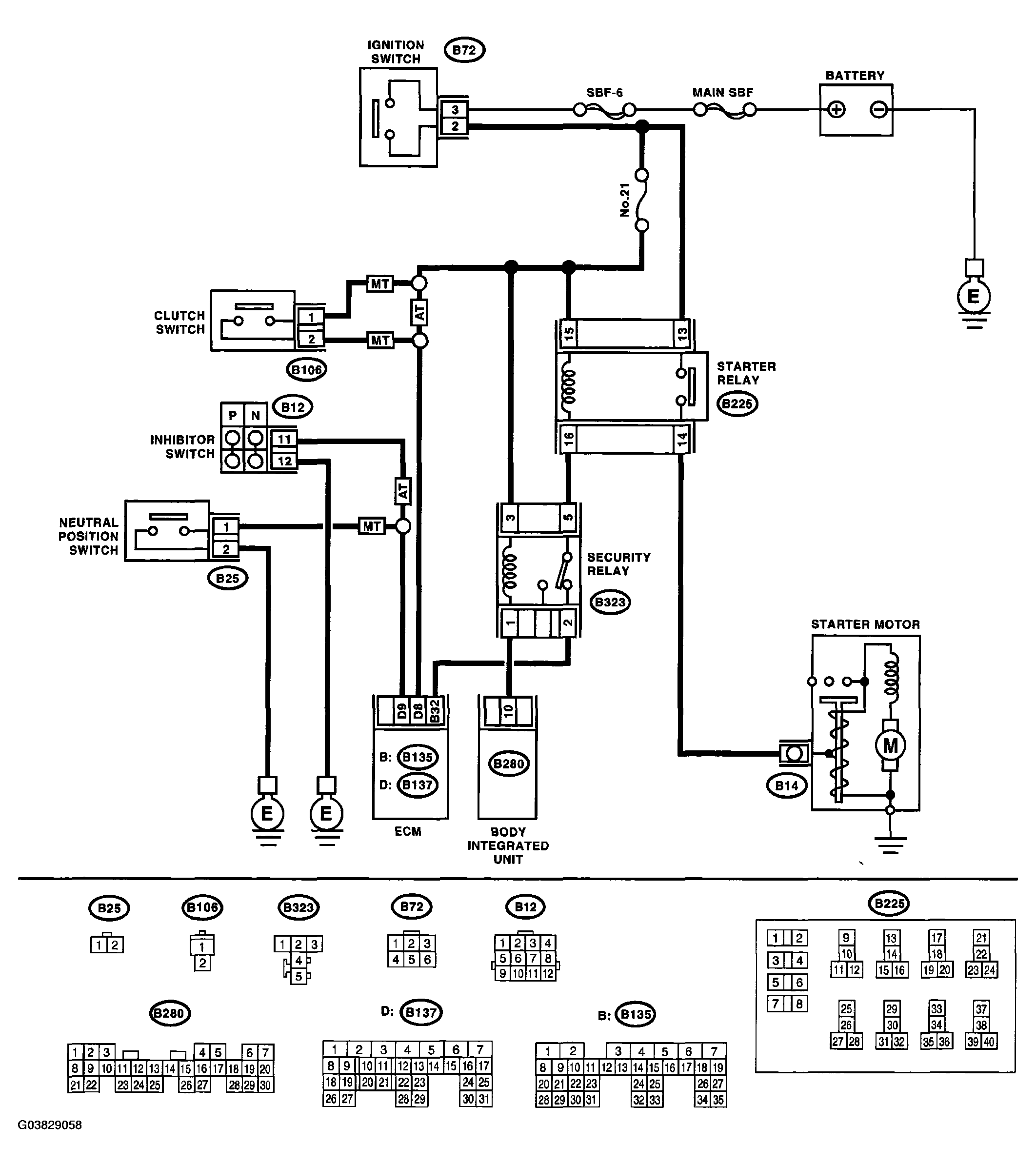

Fig 1: Wiring Diagram - DTC P0512 Starter Request Circuit

Courtesy of SUBARU OF AMERICA, INC.

DTC P0512 DIAGNOSTIC PROCEDURE

Step	Check	Yes	No
1. CHECK OPERATION OF STARTER MOTOR. Turn the ignition switch to ON. NOTE: Place the inhibitor switch in each position. (AT model) Depress the clutch pedal. (MT model) Check the security alarm is not sounding.	Does the starter motor operate?	Repair battery short circuit in starter motor circuit.	Check starter motor circuit. < Ref. to , STARTER MOTOR CIRCUIT , Diagnostics for Engine Starting Failure. >
