Wiring Diagram:

WARNING: This page is about a different variant/trim than selected.

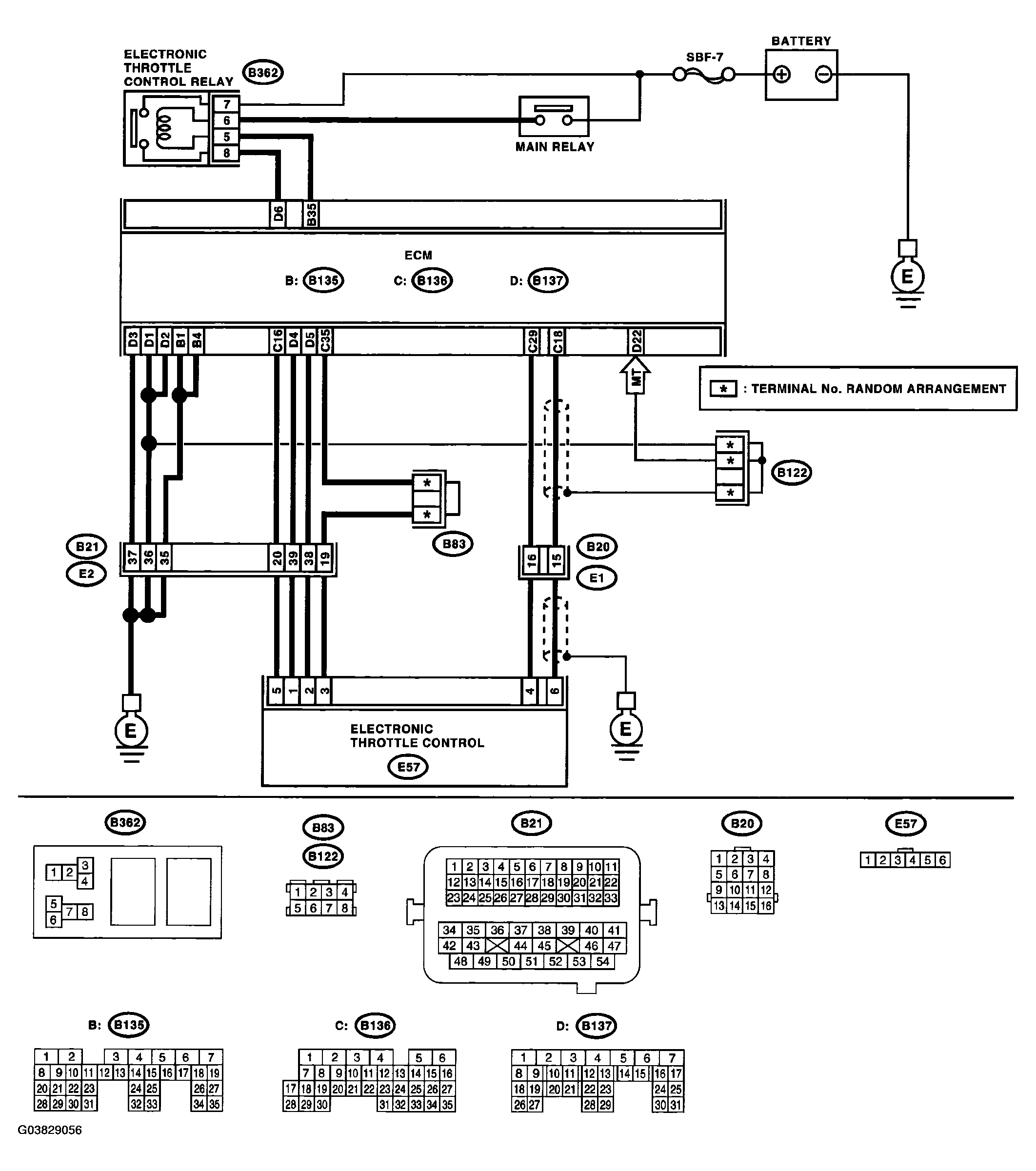

Fig 1: Wiring Diagram - DTC P0506 Idle Control System Rpm Lower Than Expected

G03829056

Courtesy of SUBARU OF AMERICA, INC.

DTC P0506 DIAGNOSTIC PROCEDURE

Step	Check	Yes	No
1. CHECK FOR ANY OTHER DTC ON DISPLAY.	Is any other DTC displayed?	Inspect the relevant DTC using "List of Diagnostic Trouble Code (DTC)". < Ref. to , LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . > NOTE: In this case, it is not necessary to inspect to inspect DTC P0506.	Go to step 2.
2. CHECK AIR CLEANER ELEMENT. Turn the ignition switch to OFF. Check air cleaner element.	Is there excessive clogging on air cleaner element.	Replace the air cleaner element. < Ref. to AIR CLEANER ELEMENT . >	Go to step 3.
