Wiring Diagram:

WARNING: This page is about a different variant/trim than selected.

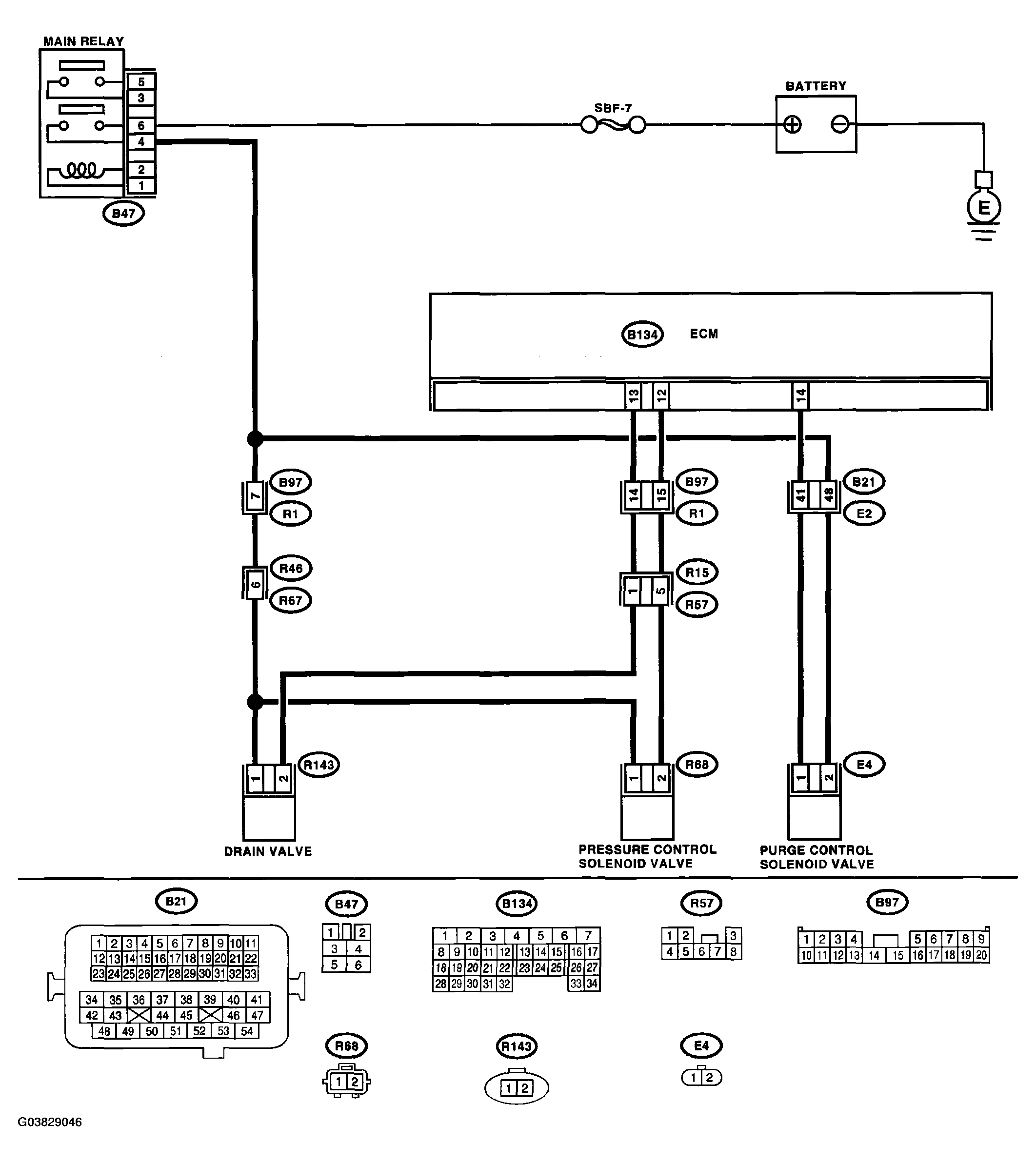

Fig 1: Wiring Diagram - DTC P0442 Evaporative Emission Control System Leak Detected
G03829046Courtesy of SUBARU OF AMERICA, INC.
DTC P0442 DIAGNOSTIC PROCEDURE

Step Check Yes No
1. CHECK FOR ANY OTHER DTC ON DISPLAY.  Is any other DTC displayed? Inspect the relevant DTC using "List of Diagnostic Trouble Code (DTC)". < Ref. to , LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . > Go to step 2.
2. CHECK FUEL FILLER CAP.
  1. Turn ignition switch to OFF.
  2. Check the fuel filler cap.
    NOTE: The DTC is stored in memory if fuel filler cap is or was loose or if the cap chain was caught while tightening.
 Is the fuel filler cap tightened securely? Go to step 3.  Tighten fuel filler cap securely.
3. CHECK FUEL FILLER CAP.  Is the fuel filler cap genuine? Go to step 4.  Replace with a genuine fuel filler cap.
4. CHECK FUEL FILLER PIPE PACKING.  Is there any damage to the seal between fuel filler cap and fuel filler pipe? Repair or replace the fuel filler cap and fuel filler pipe. < Ref. to FUEL FILLER PIPE . > Go to step 5.
5. CHECK DRAIN VALVE.
  1. Connect the test mode connector.
  2. Turn ignition switch to ON.
  3. Operate the drain valve.
    NOTE: Drain valve operation can also be executed using Subaru Select Monitor. For the procedure, refer to , COMPULSORY VALVE OPERATION CHECK MODE . >
 Does the drain valve operate? Go to step 6.  Replace the drain valve. < Ref. to DRAIN VALVE . >
6. CHECK PURGE CONTROL SOLENOID VALVE.
Operate the purge control solenoid valve.
NOTE: Purge control solenoid valve operation can also be executed using Subaru Select Monitor. For the procedure, refer to COMPULSORY VALVE OPERATION CHECK MODE . >
 Does the purge control solenoid valve operate? Go to step 7.  Replace the purge control solenoid valve. < Ref. to PURGE CONTROL SOLENOID VALVE . >
7. CHECK PRESSURE CONTROL SOLENOID VALVE.
Operate the pressure control solenoid valve.
NOTE: Pressure control solenoid valve operation can also be executed using Subaru Select Monitor. For the procedure, refer to COMPULSORY VALVE OPERATION CHECK MODE . >
 Does the pressure control solenoid valve operate? Go to step 8.  Replace the pressure control solenoid valve. < Ref. to PRESSURE CONTROL SOLENOID VALVE . >
8. CHECK EVAPORATIVE EMISSION CONTROL SYSTEM LINE.
Turn ignition switch to OFF.		 Is there a hole of more than 1.0 mm (0.04 in) dia. on evaporation line? Repair or replace the evaporation line. < Ref. to FUEL DELIVERY, RETURN AND EVAPORATION LINES . > Go to step 9.
9. CHECK CANISTER.  Is the canister damaged or is there a hole of more than 1.0 mm (0.04 in) dia. in it? Repair or replace the canister. < Ref. to CANISTER . > Go to step 10.
10. CHECK FUEL TANK.
Remove the fuel tank. < Ref. to FUEL TANK . >		 Is the fuel tank damaged or is there a hole of more than 1.0 mm (0.04 in) dia. in it? Repair or replace the fuel tank. < Ref. to FUEL TANK . > Go to step 11.
11. CHECK ANY OTHER MECHANICAL TROUBLE IN EVAPORATIVE EMISSION CONTROL SYSTEM.  Are there holes of more than 1.0 mm (0.04 in) dia., cracks, clogging, disconnections or bend of hoses or pipes in evaporative emission control system? Repair or replace the hoses or pipes. Contact SOA Service Center.
