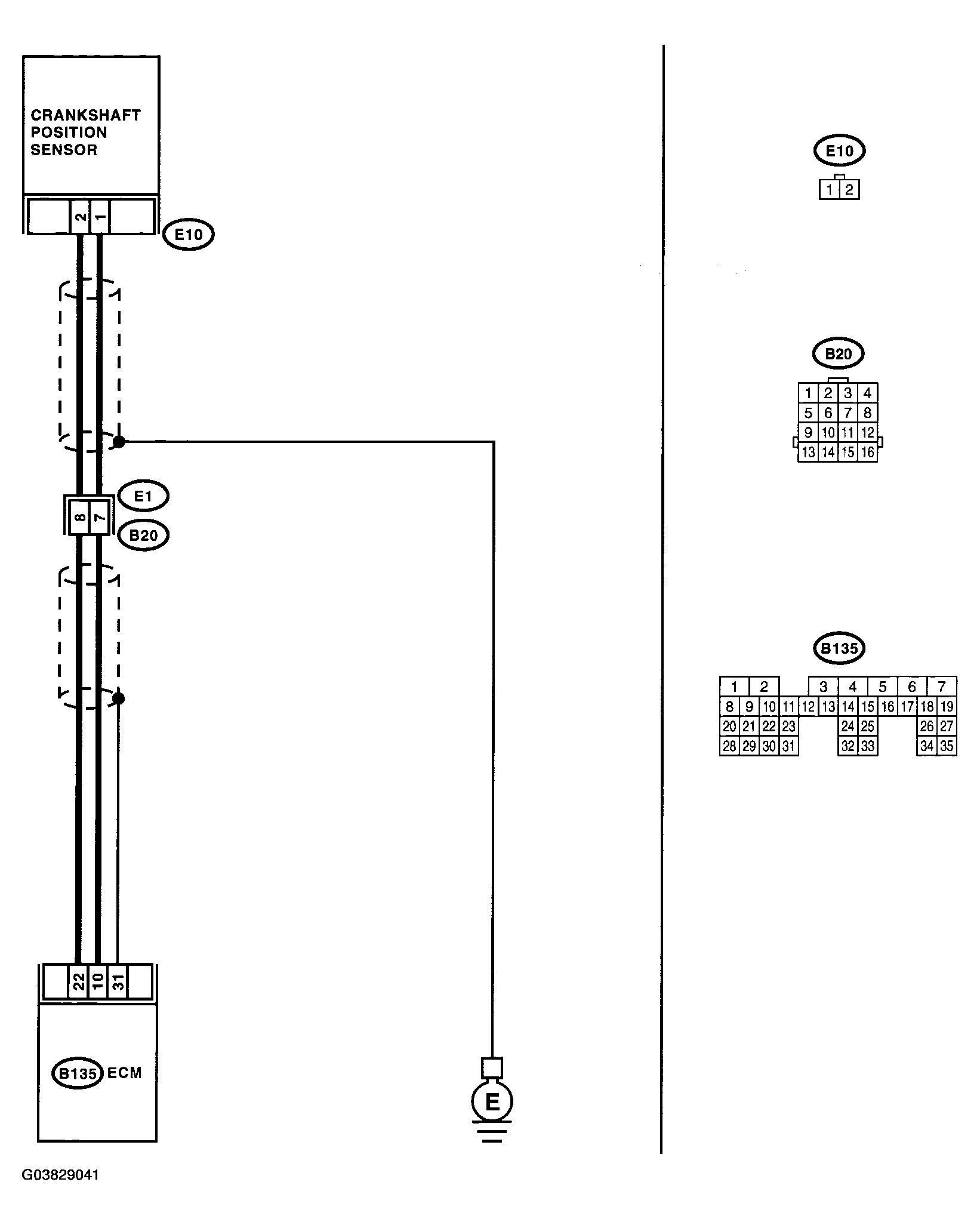

Wiring Diagram:
WARNING: This page is about a different variant/trim than selected.
DTC P0336 DIAGNOSTIC PROCEDURE
| Step | Check | Yes | No |
|---|---|---|---|
| 1. CHECK FOR ANY OTHER DTC ON DISPLAY. | Is any other DTC displayed? | Inspect DTC using "List of Diagnostic Trouble Code (DTC)". < Ref. to , LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . > | Go to step 2. |
| 2. CHECK CONDITION OF CRANKSHAFT POSITION SENSOR. Turn the ignition switch to OFF. |
Is the crankshaft position sensor installation bolt tightened securely? | Go to step 3. | Tighten crankshaft position sensor installation bolt securely. |
| 3. CHECK CRANK SPROCKET. Remove the timing belt cover. |
Are crank sprocket teeth cracked or damaged? | Replace the crank sprocket. < Ref. to CRANK SPROCKET . > | Go to step 4. |
| 4. CHECK INSTALLATION CONDITION OF TIMING BELT. Turn the crankshaft to align alignment mark on crank sprocket with alignment mark on cylinder block. |
Is the timing belt dislocated from its proper position? | Repair installation condition of timing belt. < Ref. to TIMING BELT . > | Replace the crankshaft position sensor. < Ref. to CRANKSHAFT POSITION SENSOR . > |
