DTC P0181 Fuel Temperature Sensor "A" Circuit Range/Performance
WARNING: This page is about a different variant/trim than selected.
DTC DETECTING CONDITION:
- Fault occurs in two consecutive driving cycles
- GENERAL DESCRIPTION < Ref. to DTC P0181 FUEL TEMPERATURE SENSOR "A" CIRCUIT RANGE/PERFORMANCE , Diagnostic Trouble Code (DTC) Detecting Criteria. >
CAUTION:
After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE < Ref. to
, OPERATION , Clear Memory Mode.> and INSPECTION MODE < Ref. to
, OPERATION , Inspection Mode.>.

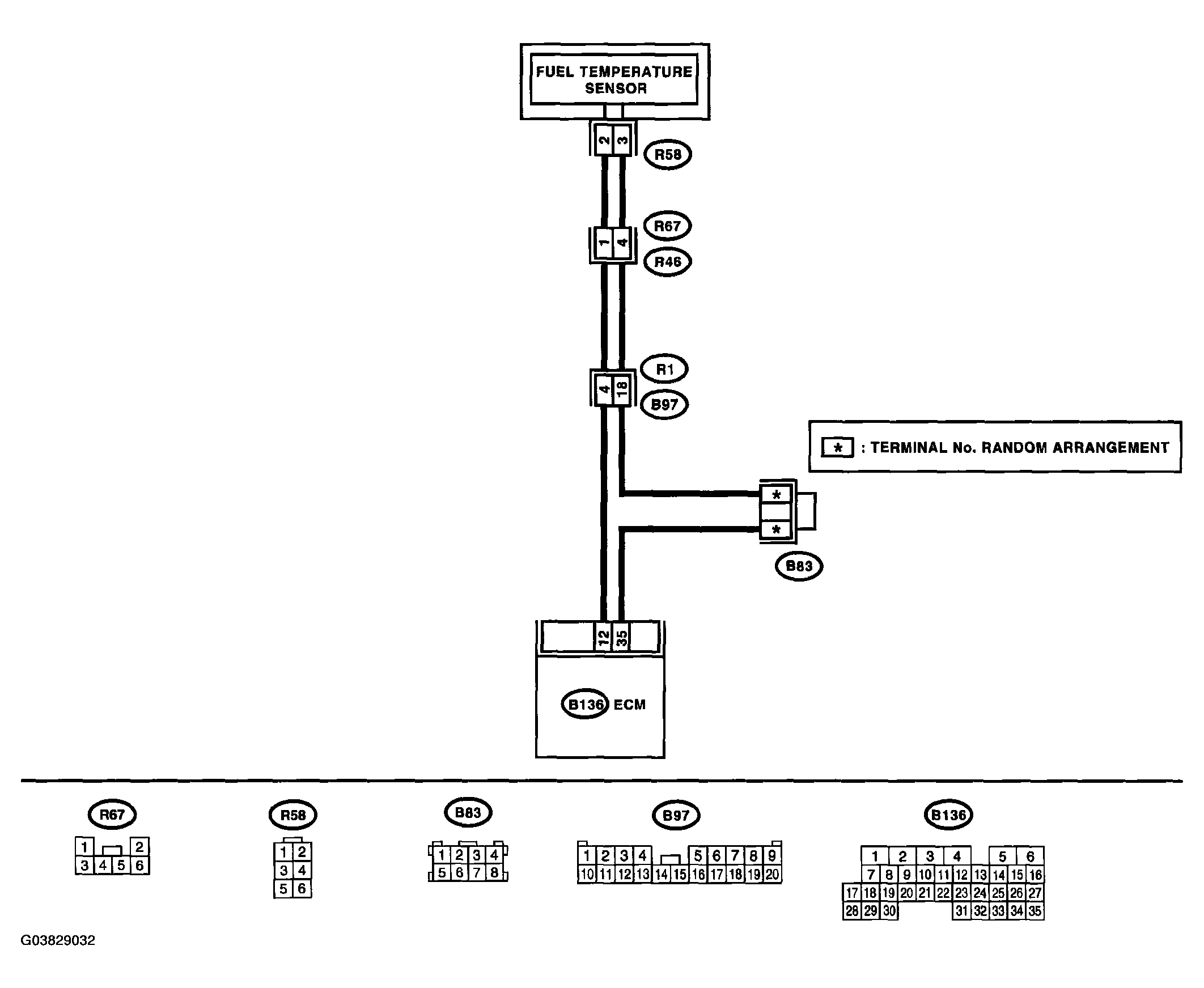

WIRING DIAGRAM:
DTC P0181 DIAGNOSTIC PROCEDURE
| Step | Check | Yes | No |
|---|---|---|---|
| 1. CHECK FOR ANY OTHER DTC ON DISPLAY. | Is any other DTC displayed? | Inspect DTC using "List of Diagnostic Trouble Code (DTC)". < Ref. to
, LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . >
NOTE:
In this case, it is not necessary to inspect DTC P0181.
|
Replace the fuel temperature sensor. < Ref. to FUEL TEMPERATURE SENSOR . > |
