DTC P0052 Ho2S Heater Control Circuit High (Bank 2 Sensor 1)

WARNING: This page is about a different variant/trim than selected.

DTC DETECTING CONDITION:

Detect as soon as malfunction occurs.
GENERAL DESCRIPTION < Ref. to DTC P0052 HO2S HEATER CONTROL CIRCUIT HIGH (BANK 2 SENSOR 1) , Diagnostic Trouble Code (DTC) Detecting Criteria. >

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode < Ref. to , OPERATION , Clear Memory Mode.> and Inspection Mode < Ref. to , OPERATION , Inspection Mode.>.

WIRING DIAGRAM:

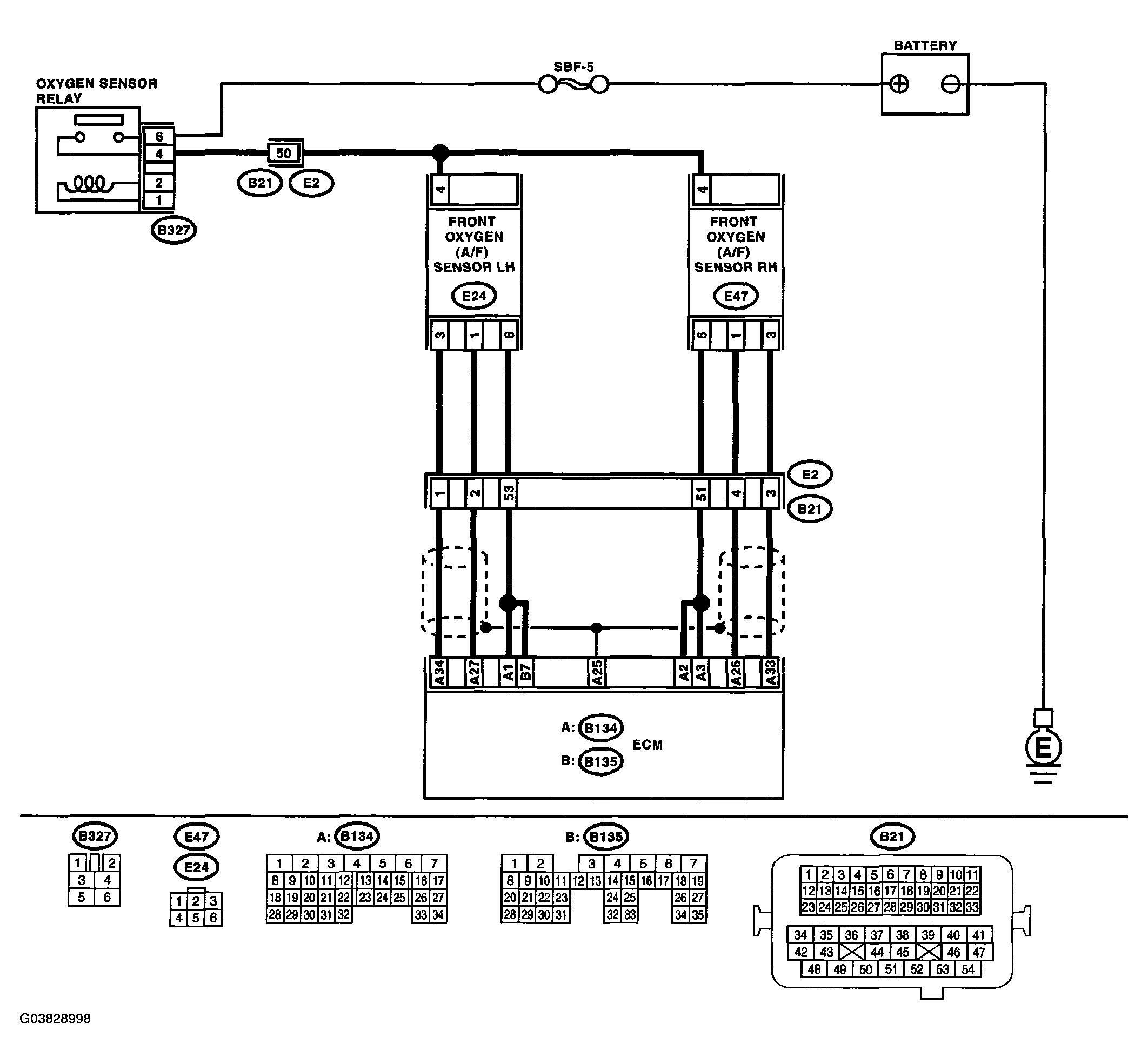

Fig 1: Wiring Diagram - DTC P0052 HO2S Heater Control Circuit High (Bank 2 Sensor 1)

Courtesy of SUBARU OF AMERICA, INC.

DTC P0052 DIAGNOSTIC PROCEDURE

Step	Check	Yes	No
1. CHECK OUTPUT SIGNAL FROM ECM. Turn the ignition switch to ON Measure the voltage between ECM connector and chassis ground. Connector & terminal (B134) No. 1 (+) - Chassis ground (-): (B135) No. 7 (+) - Chassis ground (-):	Is the measured value more than 8 V?	Go to step 2 .	Go to step 3 .
2. CHECK FRONT OXYGEN (A/F) SENSOR HEATER CURRENT. Turn the ignition switch to OFF Repair the battery short circuit in harness between ECM and front oxygen (A/F) sensor connector Turn the ignition switch to ON Read the data of front oxygen (A/F) sensor heater current using Subaru Select Monitor or OBD-II general scan tool NOTE: Subaru Select Monitor For detailed operation procedure, refer to the "READ CURRENT DATA FOR ENGINE" < Ref. to , SUBARU SELECT MONITOR > OBD-II general scan tool For detailed operation procedure, refer to the OBD-II general scan tool instruction manual	Is the measured value more than 2 3 A?	Replace the ECM < Ref. to ENGINE CONTROL MODULE (ECM) >	END
3. CHECK OUTPUT SIGNAL FROM ECM. Measure the voltage between ECM connector and chassis ground Connector & terminal (B134) No. 1 (+) - Chassis ground (-): (B135) No. 7 (+) - Chassis ground (-):	Does the voltage change by shaking the ECM harness and connector?	Repair battery short circuit in harness between ECM and front oxygen (A/F) sensor connector	END
