Components With Torque Specifications

WARNING: This page is about a different variant/trim than selected.

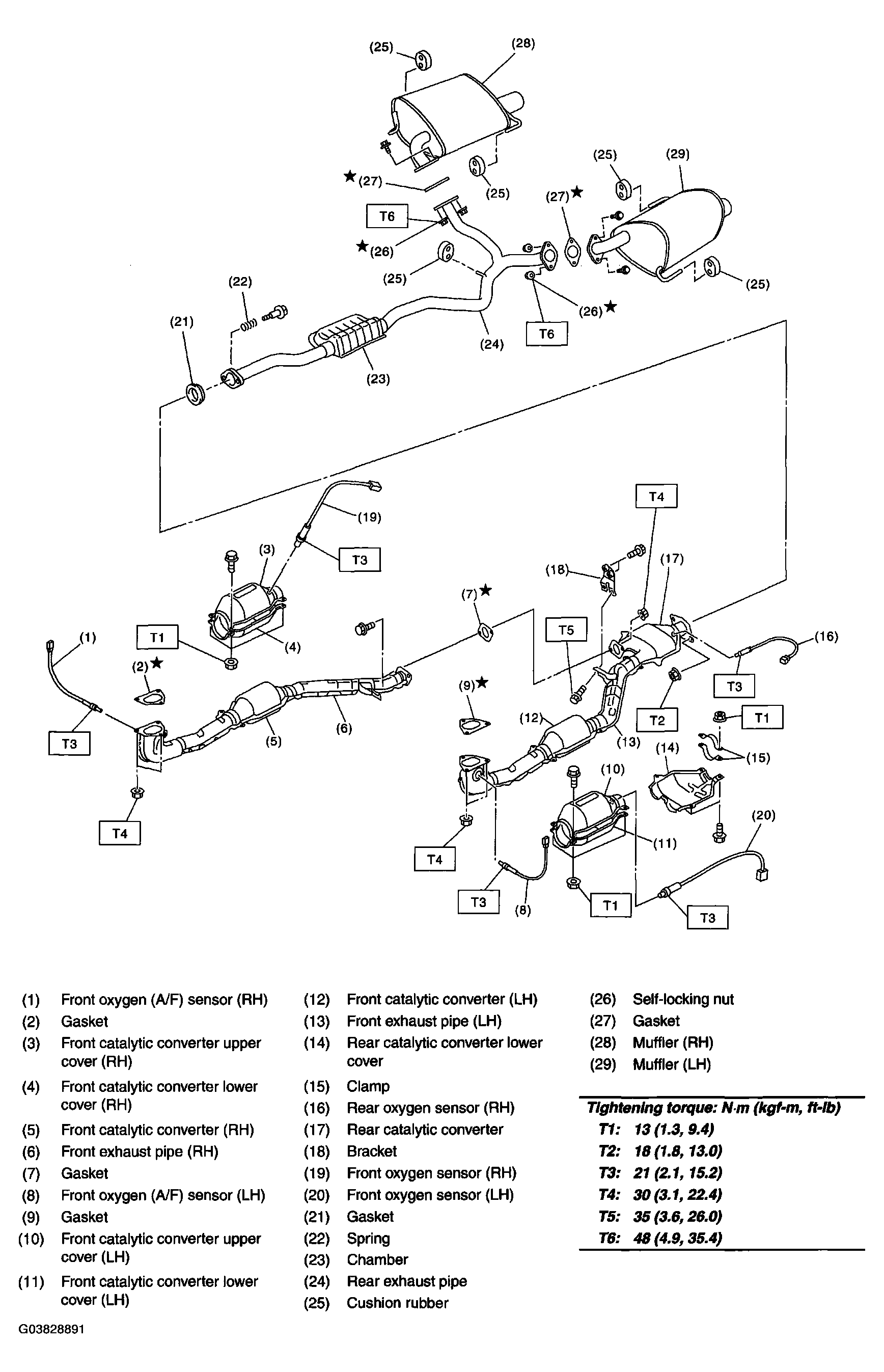

Fig 1: Exploded View Of Exhaust (H4SO U5) Components With Torque Specifications
G03828891Courtesy of SUBARU OF AMERICA, INC.
