Front Exhaust Pipe: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery ground cable.

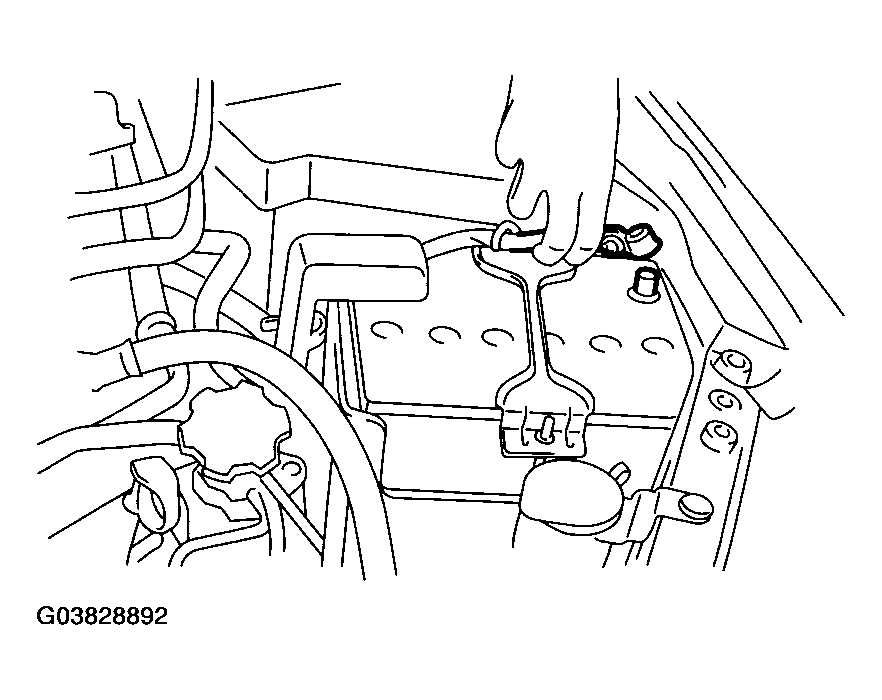

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the front oxygen (A/F) sensor connector.
- LH side

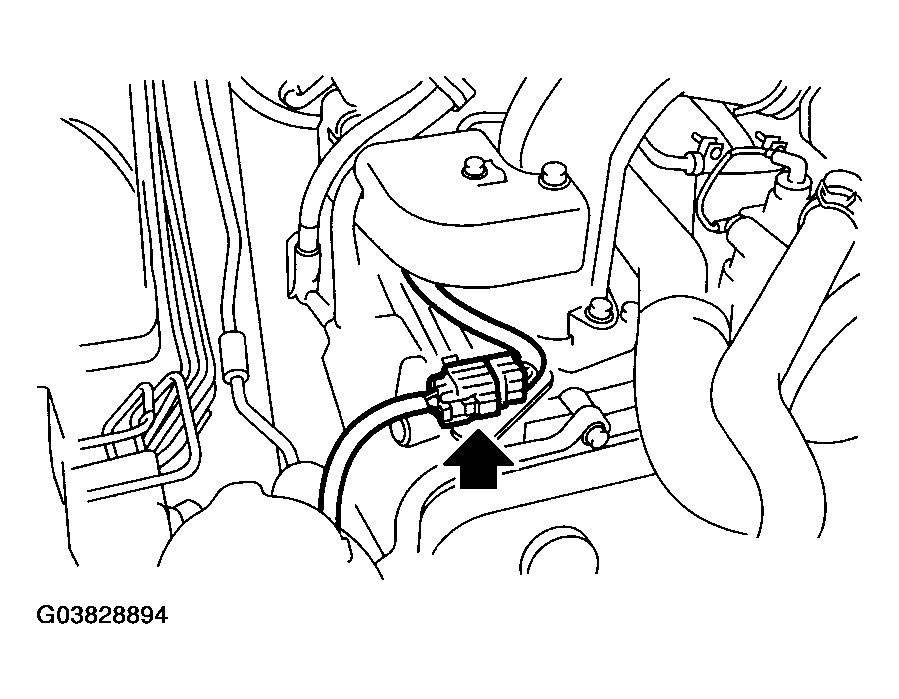

  Fig 2: Disconnecting Front Oxygen (A/F) Sensor Connector - LH Side
  Courtesy of SUBARU OF AMERICA, INC.
- RH side

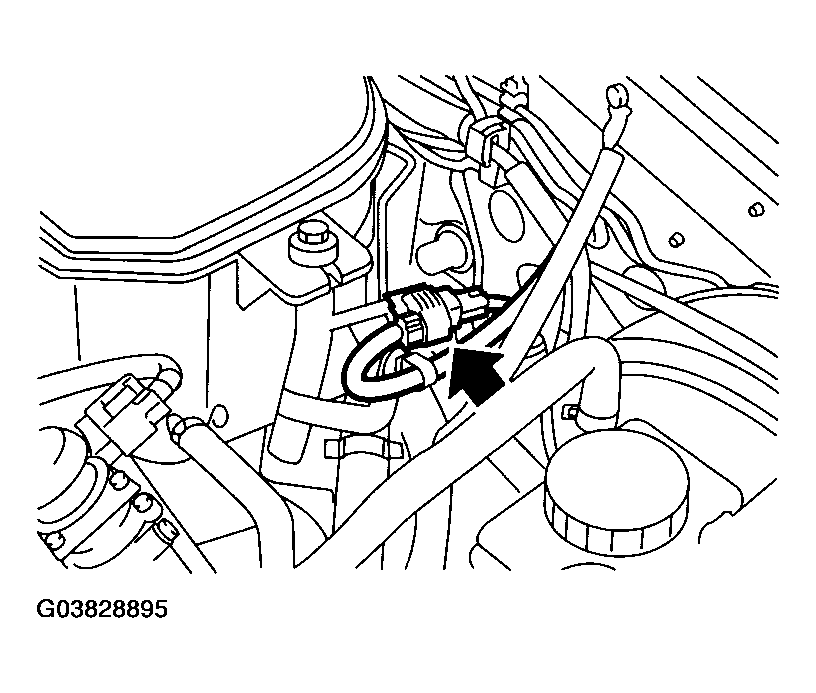

Fig 3: Disconnecting Front Oxygen (A/F) Sensor Connector - RH Side
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the front oxygen sensor connector.
- LH side

  Fig 4: Disconnecting Front Oxygen Sensor Connector - LH Side
  Courtesy of SUBARU OF AMERICA, INC.
- RH side

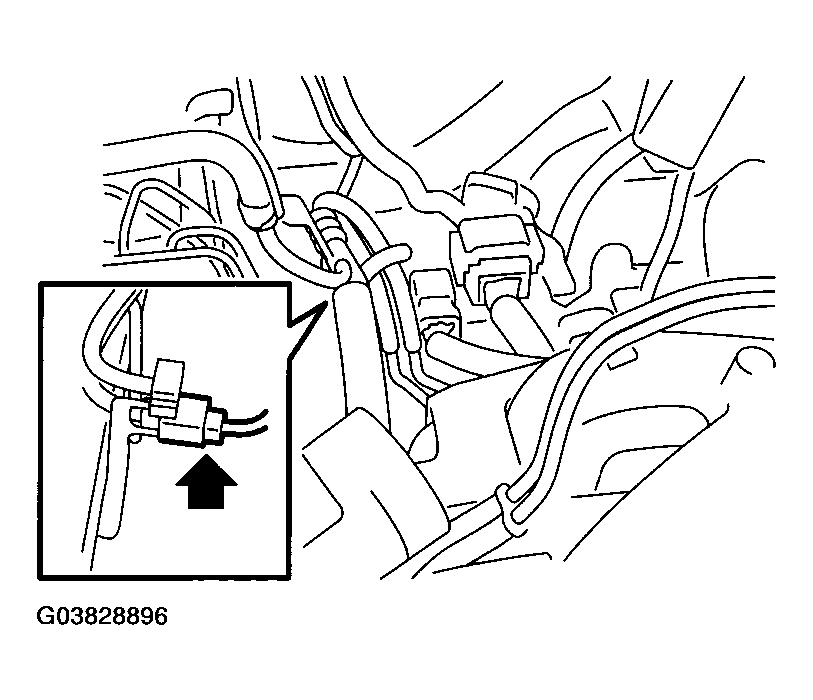

Fig 5: Disconnecting Front Oxygen Sensor Connector - RH Side
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Remove the under cover.
Remove the front oxygen (A/F) sensor harness from bracket.
- LH side

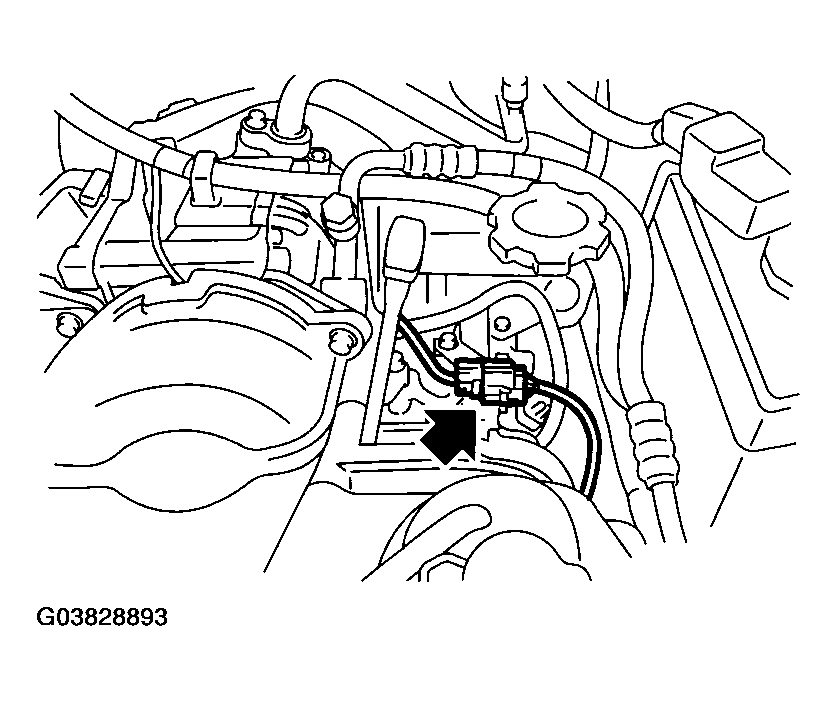

  Fig 6: Removing Front Oxygen (A/F) Sensor Harness From Bracket - LH Side
  Courtesy of SUBARU OF AMERICA, INC.
- RH side
Fig 7: Removing Front Oxygen (A/F) Sensor Harness From Bracket - RH Side
Courtesy of SUBARU OF AMERICA, INC.
Remove the clips which hold LH side oxygen sensor harness.

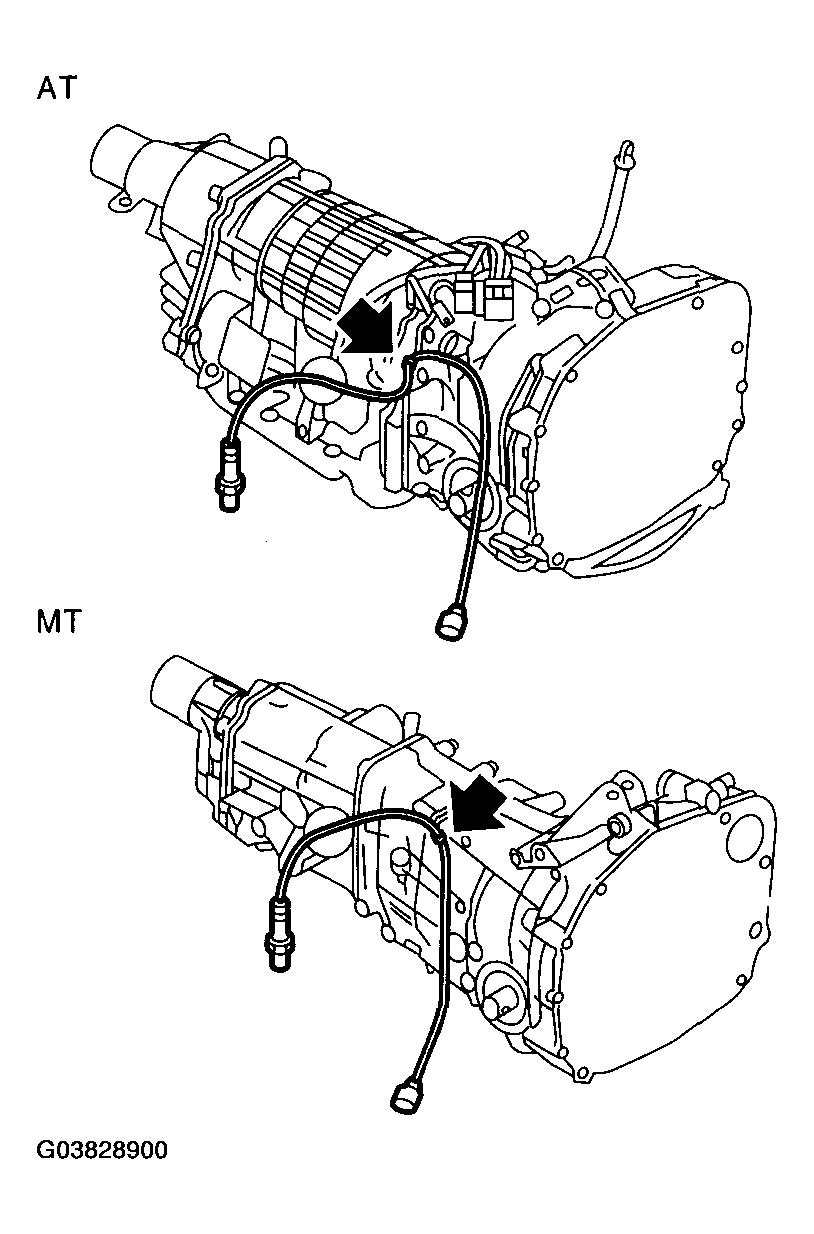

Fig 8: Removing Clips Which Hold LH Side Oxygen Sensor Harness
Courtesy of SUBARU OF AMERICA, INC.
Remove the RH side front oxygen sensor harness from bracket.

Fig 9: Removing RH Side Front Oxygen Sensor Harness From Bracket
Courtesy of SUBARU OF AMERICA, INC.

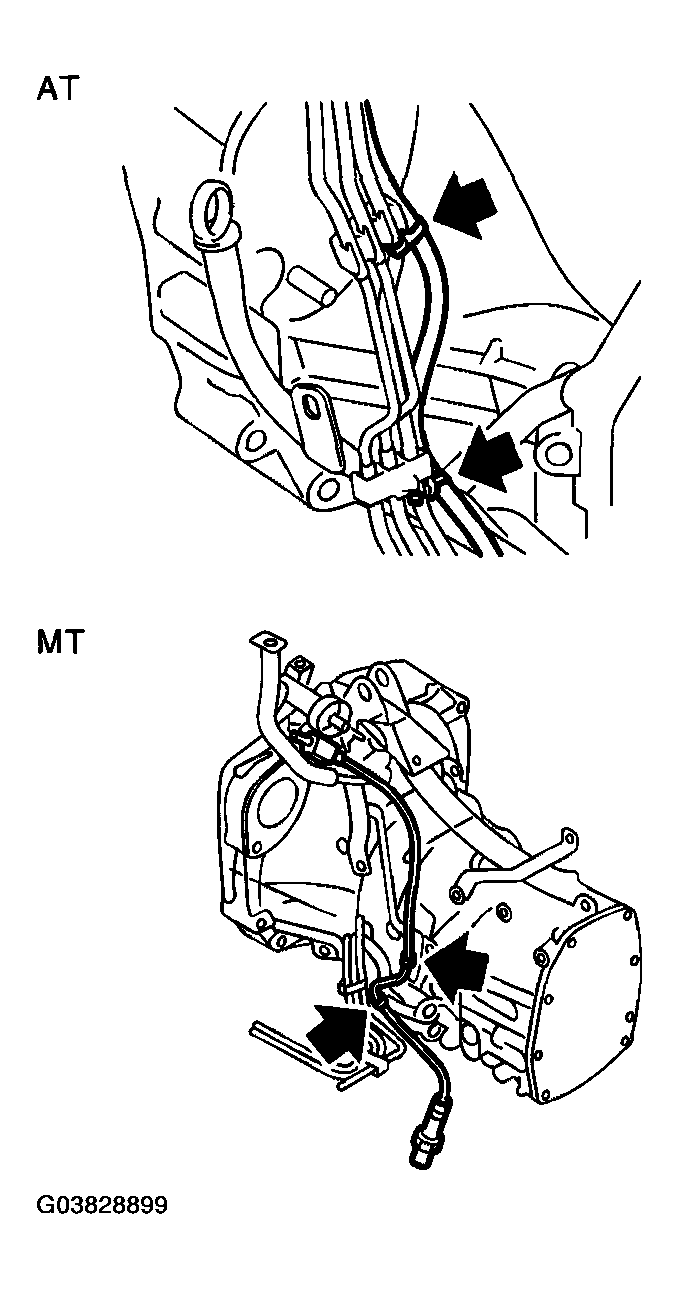

Disconnect the rear oxygen sensor connector.

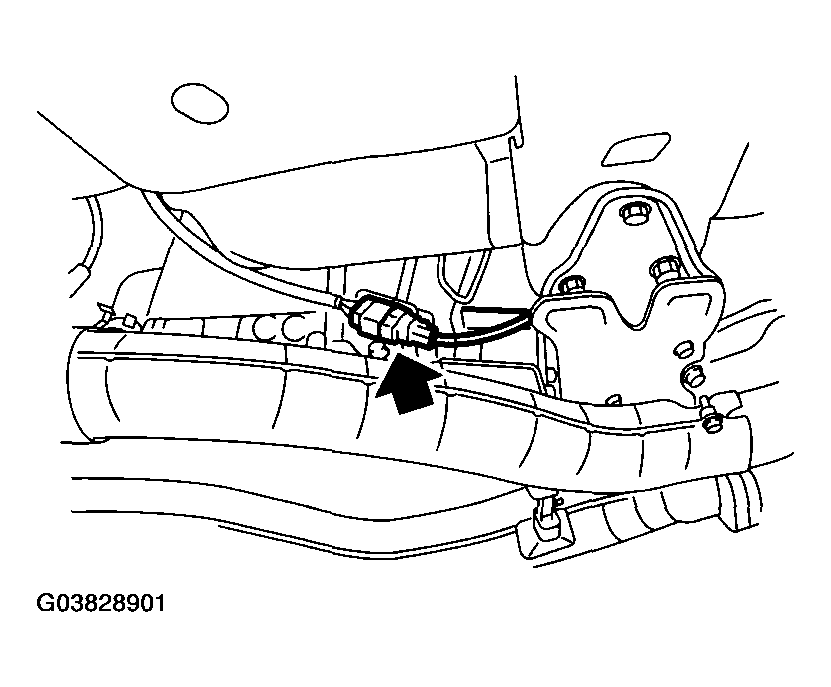

Fig 10: Disconnecting Rear Oxygen Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Separate the front exhaust pipe assembly from rear exhaust pipe.
WARNING: Be careful, exhaust pipe is hot.

Fig 11: Separating Front Exhaust Pipe Assembly From Rear Exhaust Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove the nuts which hold front exhaust pipe onto cylinder heads.
CAUTION: Be careful not to pull down front exhaust pipe assembly.

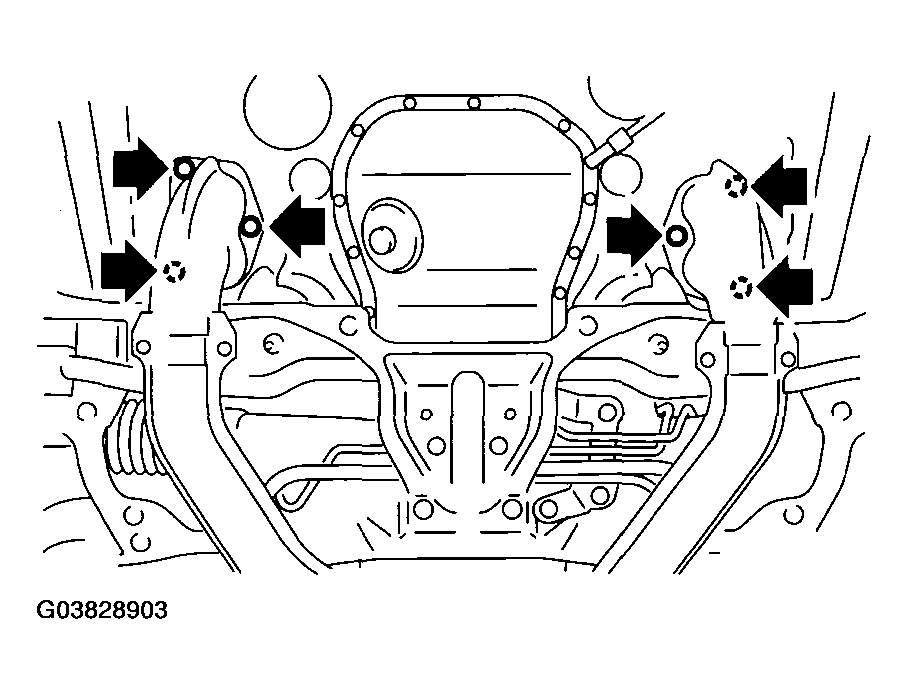

Fig 12: Removing Nuts Which Hold Front Exhaust Pipe Onto Cylinder Heads
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which secures front exhaust pipe assembly to hanger bracket.

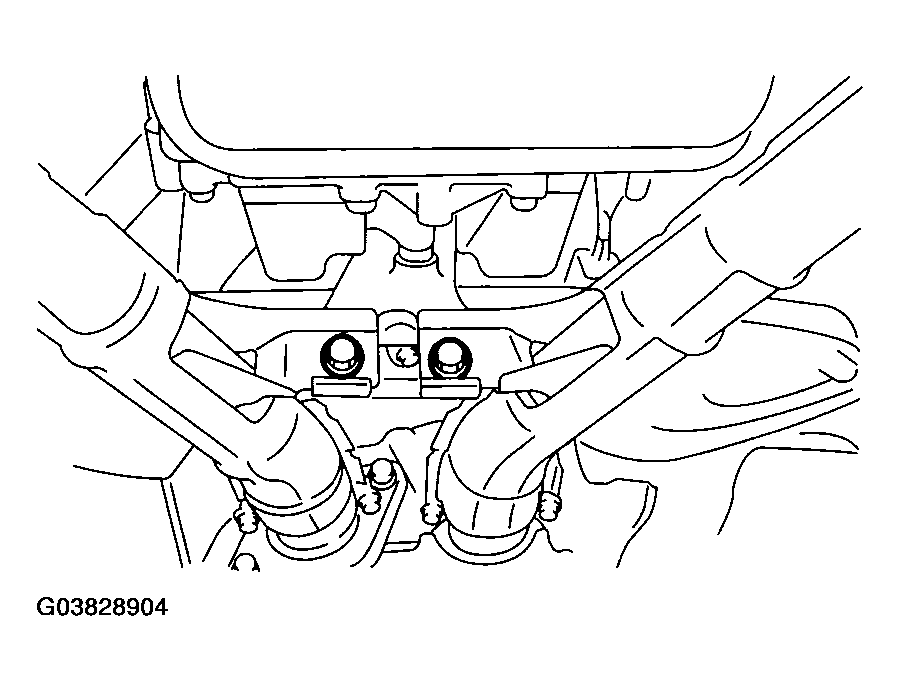

Fig 13: Removing Bolt Which Secures Front Exhaust Pipe Assembly To Hanger Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the front exhaust pipe from the vehicle.
CAUTION:
- Disconnect front oxygen (A/F) sensor, front oxygen sensor and rear oxygen sensor harness from bracket.
- Be careful not to let front exhaust pipe assembly fall off when removing as it is quite heavy.
- After removing front exhaust pipe assembly, do not apply excessive pulling force on rear exhaust pipe.
Separate the front exhaust pipe (RH) from front exhaust pipe assembly.

Fig 14: Separating Front Exhaust Pipe (RH) From Front Exhaust Pipe Assembly
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the front oxygen (A/F) sensor, front oxygen sensor and rear oxygen sensor. Refer to FRONT OXYGEN (A/F) SENSOR , FRONT OXYGEN SENSOR or REAR OXYGEN SENSOR .
