Tumble Generator Valve Actuator: Removal

WARNING: This page is about a different variant/trim than selected.

Release the fuel pressure.
< Ref. to , RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
Open the fuel filler flap lid and remove the fuel filler cap.
Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the throttle body.
< Ref. to , REMOVAL , Throttle Body. >
Disconnect the connector from tumble generator valve actuator.
Remove the tumble generator valve actuator.

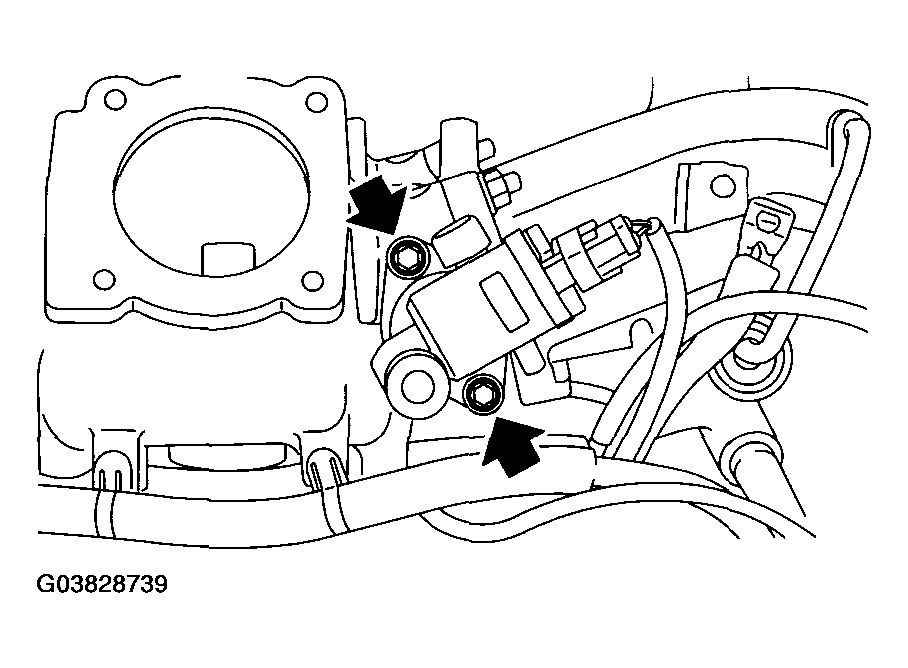

Fig 2: Removing Tumble Generator Valve Actuator
Courtesy of SUBARU OF AMERICA, INC.
