RH Side

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.

NOTE: Use new O-rings.

Fig 1: Installing O-Ring

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.9 kgf-m, 14 ft-lb)

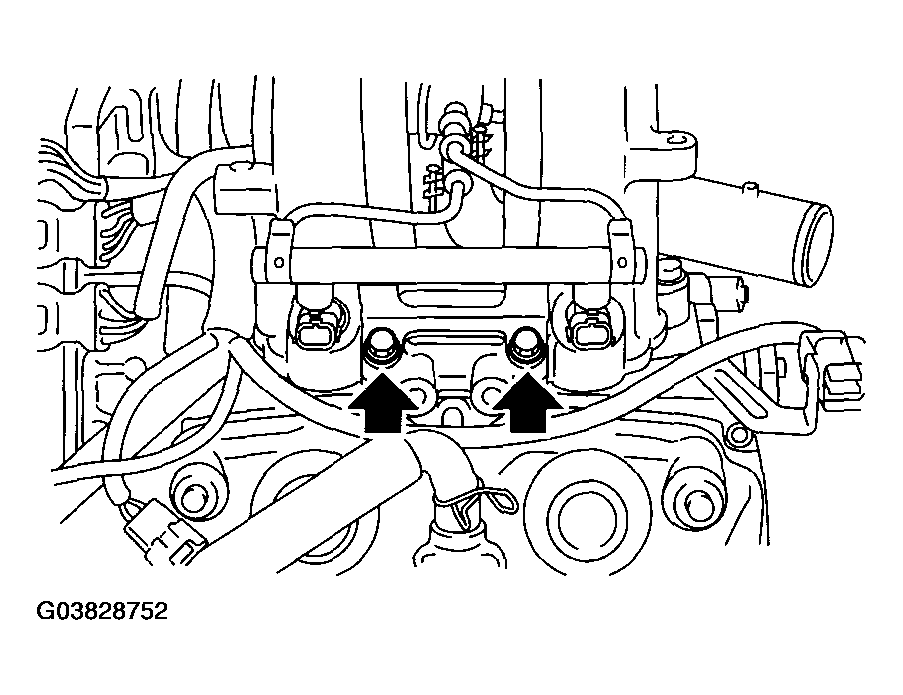

Fig 2: Tightening Bolts With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.9 kgf-m, 14 ft-lb)

Fig 3: Tightening Bolts With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.
