RH side

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground cable from battery.

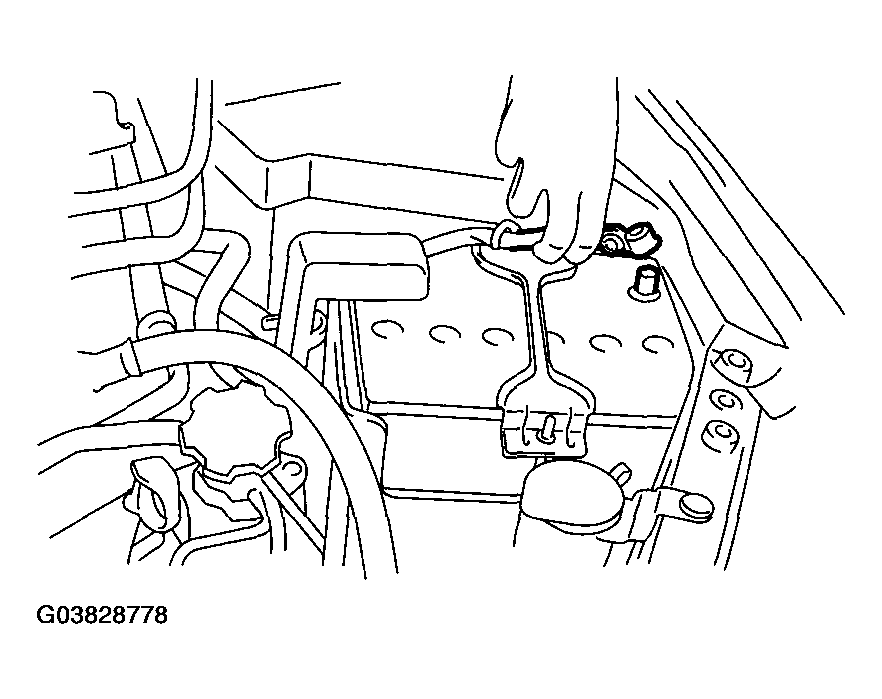

    Fig 1: Disconnecting Ground Cable From Battery
    G03828778Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the connector of front oxygen sensor.

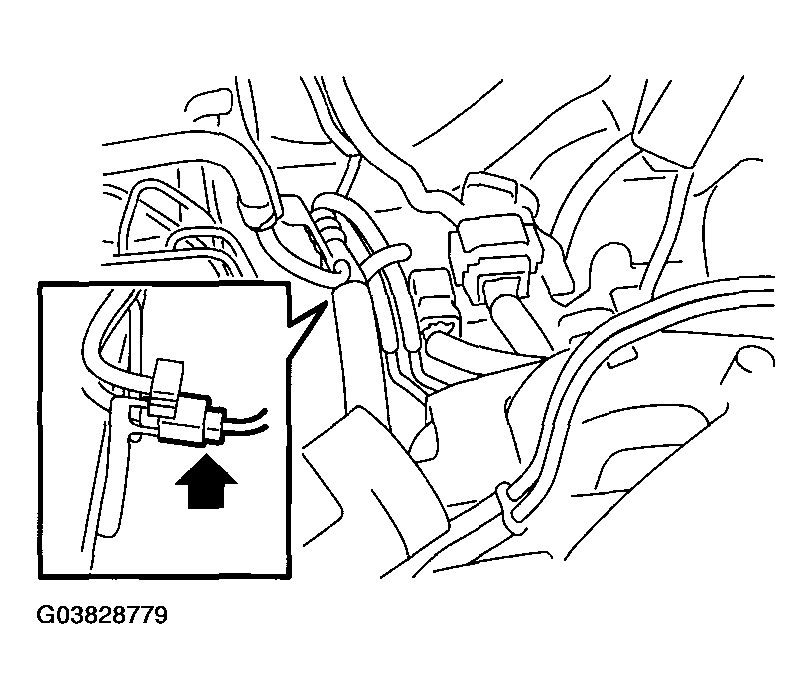

    Fig 2: Removing Connector Of Front Oxygen Sensor
    G03828779Courtesy of SUBARU OF AMERICA, INC.
  3. Lift-up the vehicle.
  4. Remove the front oxygen sensor harness from bracket.

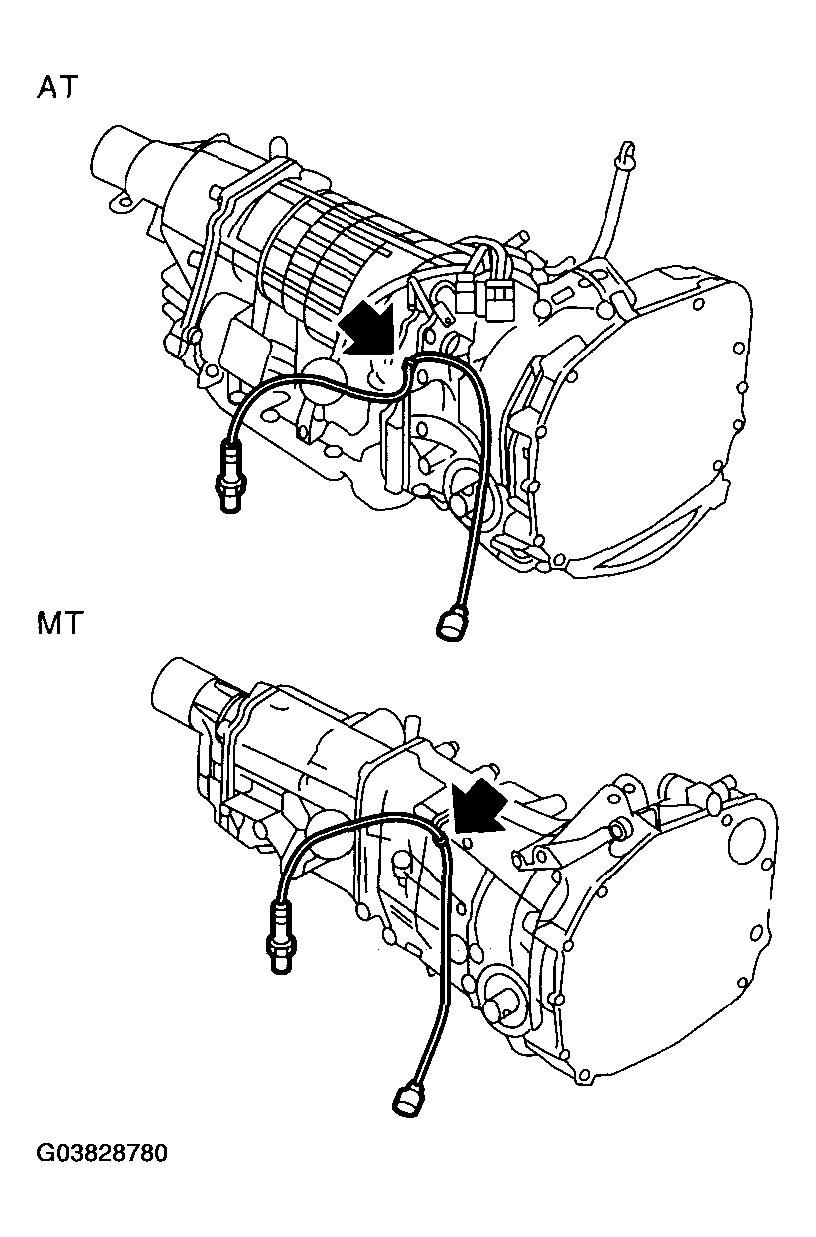

    Fig 3: Removing Front Oxygen Sensor Harness From Bracket
    G03828780Courtesy of SUBARU OF AMERICA, INC.
  5. Apply spray-type lubricant to the threaded portion of front oxygen sensor, and leave it for one minute or more.
  6. Remove the front oxygen sensor.
    CAUTION: When removing the front oxygen sensor, wait until exhaust pipe cools, otherwise it will damage the exhaust pipe.

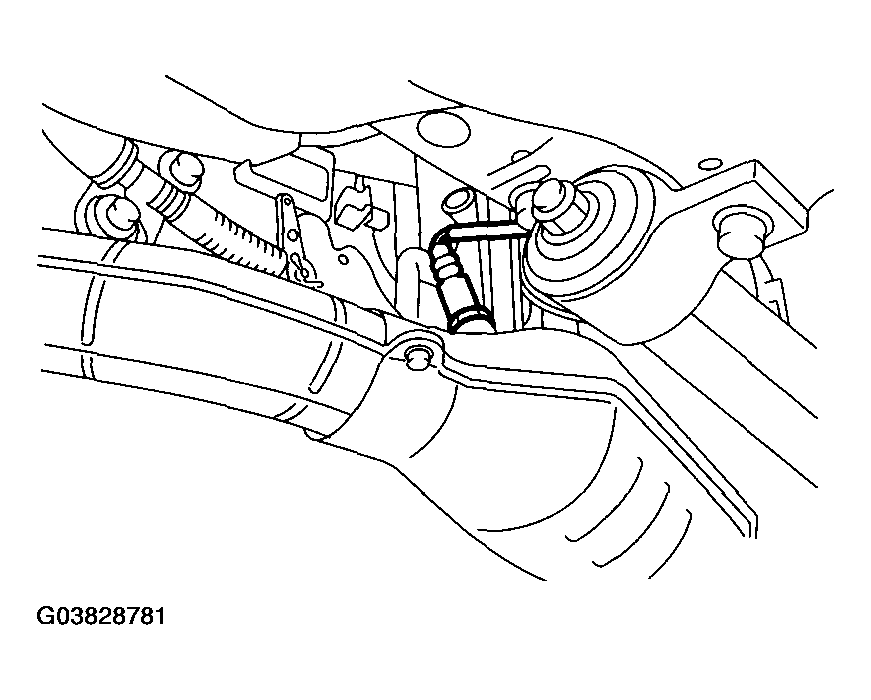

    Fig 4: Removing Front Oxygen Sensor
    G03828781Courtesy of SUBARU OF AMERICA, INC.
