Crankshaft Position, Camshaft Position And Knock Sensors

WARNING: This page is about a different variant/trim than selected.

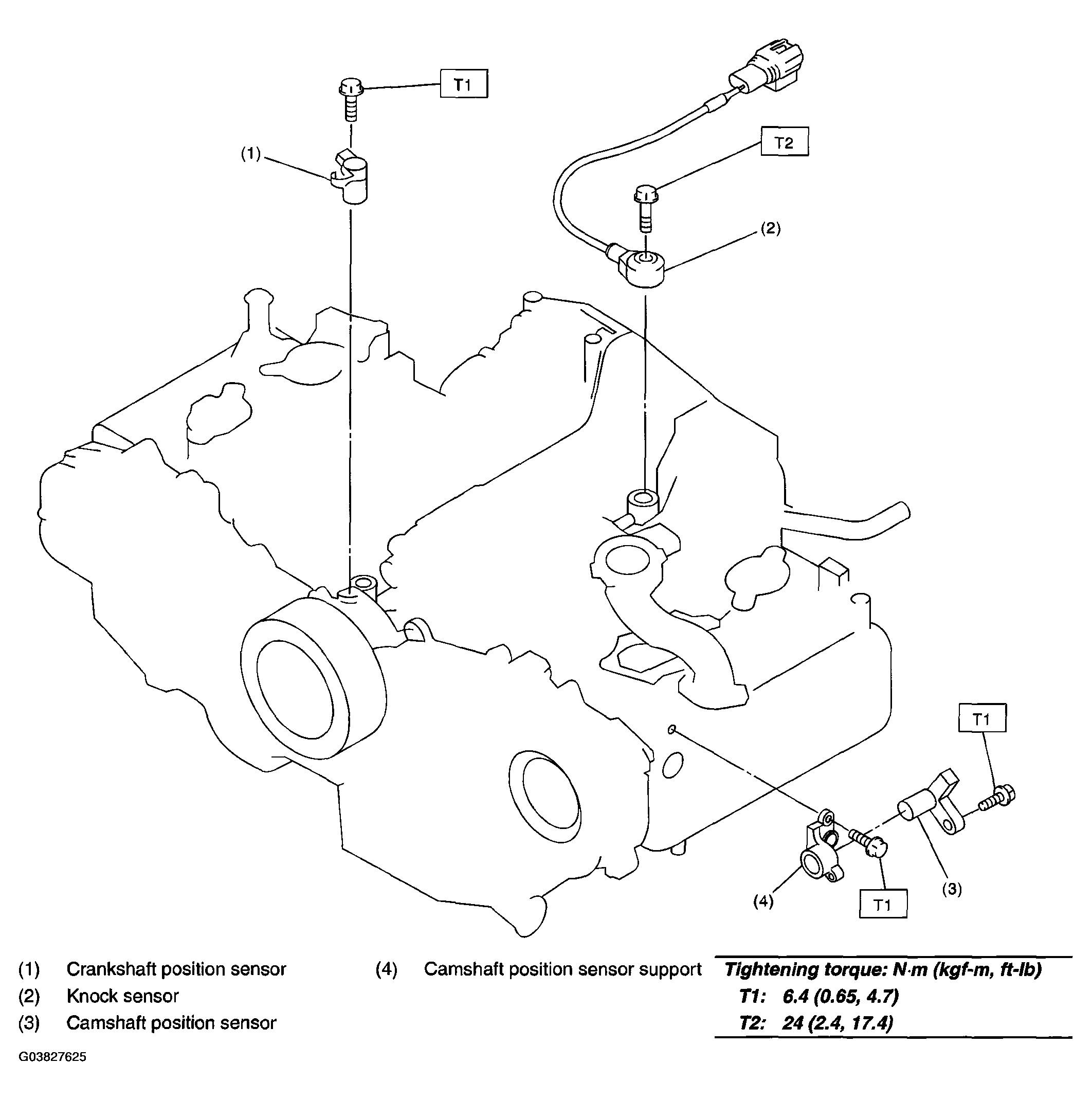

Fig 1: Crankshaft Position, Camshaft Position & Knock Sensors With Torque Specifications
G03827625Courtesy of SUBARU OF AMERICA, INC.
