Engine Mechanical (H6DO): V-belt: Removal

  1. Install the tool to belt tension adjuster assembly installation bolt.
  2. Rotate the tool clockwise and loosen the V-belt to remove.

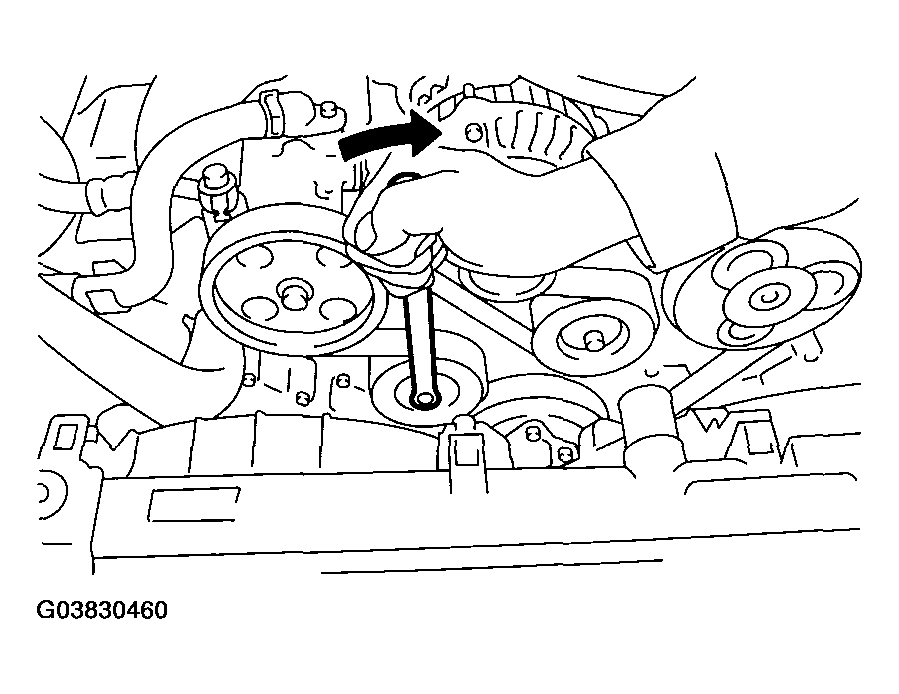

    Fig 1: Removing V-Belt
    G03830460Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the V-belt covers.
