Engine Mechanical (H6DO): V-belt: Inspection

  1. Replace the V-belt, if cracks, fraying or wear is found.
  2. Check that the V-belt automatic belt tension indicator (A) is within the range (D).

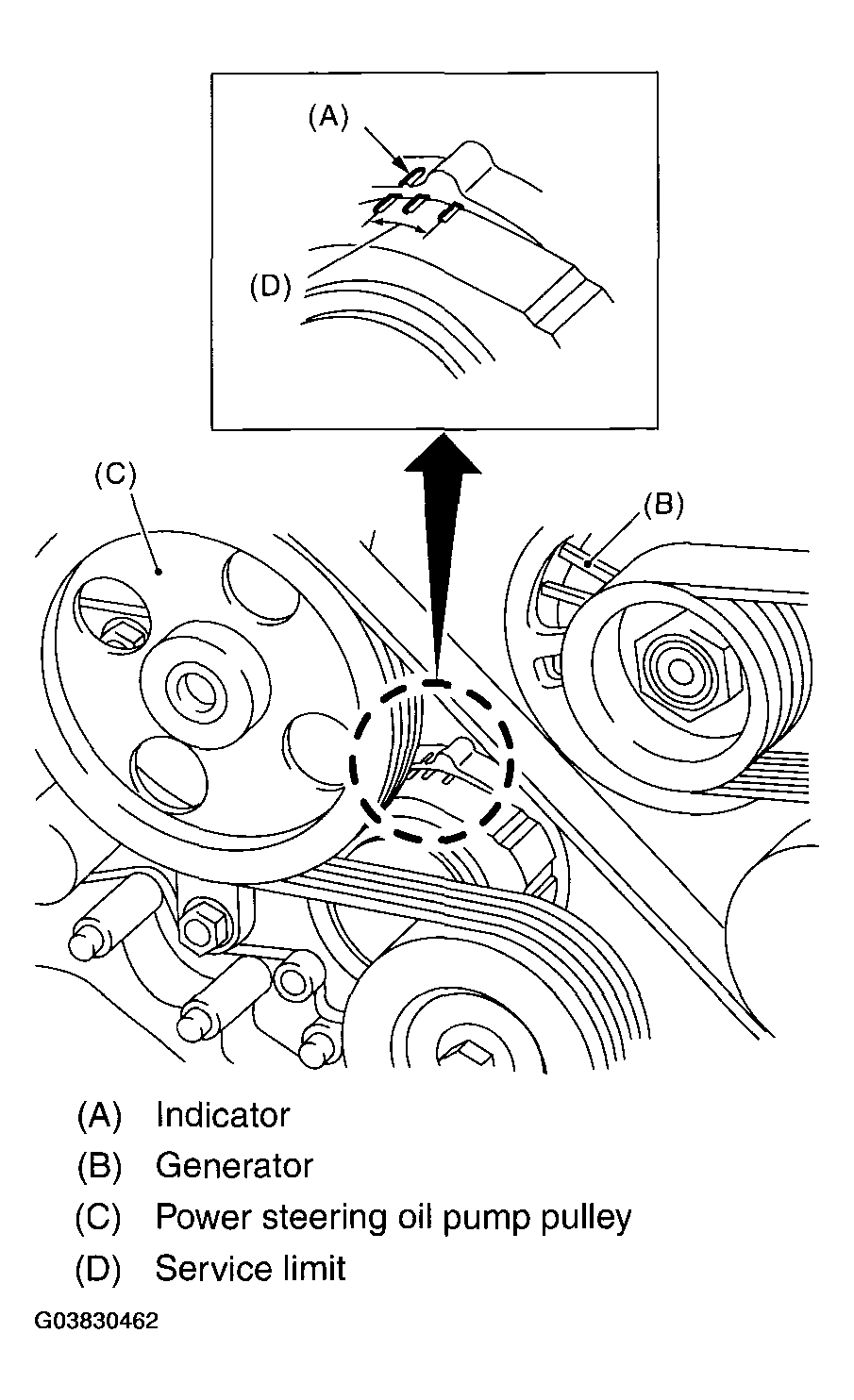

Fig 1: Identifying V-Belt Automatic Belt Tension Indicator
G03830462Courtesy of SUBARU OF AMERICA, INC.
