Front Exhaust Pipe: Installation

Install the front oxygen (A/F) sensor and rear oxygen sensor. < Ref. to INSTALLATION , Front Oxygen (A/F) Sensor.> < Ref. to INSTALLATION , Rear Oxygen Sensor. >
Install the front exhaust pipe (RH) to front exhaust pipe assembly.
NOTE: Use a new gasket.

Tightening torque:

30 N.m (3.1 kgf-m, 22.4 ft-lb)

Fig 1: Installing Front Exhaust Pipe (RH) To Front Exhaust Pipe Assembly
Courtesy of SUBARU OF AMERICA, INC.
Install the front exhaust pipe assembly to vehicle.
Temporarily tighten the bolts which hold front exhaust pipe assembly to hanger bracket.

Fig 2: Tightening Bolts Holding Front Exhaust Pipe Assembly To Hanger Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install the nuts to cylinder head which hold front exhaust pipe.
Tightening torque:

30 N.m (3.1 kgf-m, 22.4 ft-lb)

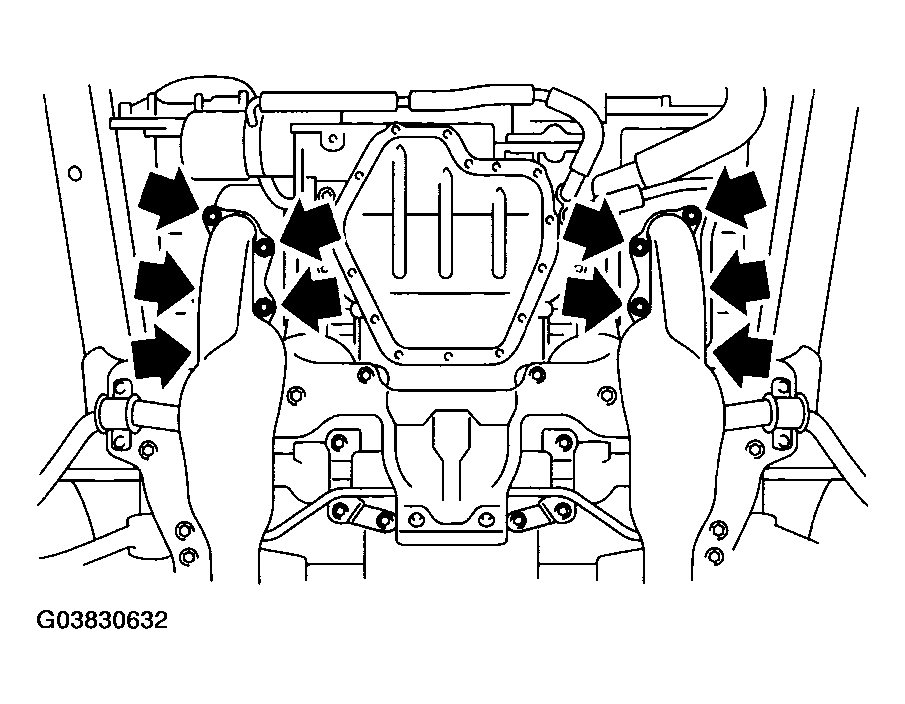

Fig 3: Installing Front Exhaust Pipe Nuts
Courtesy of SUBARU OF AMERICA, INC.
Install the under cover.
Tighten the bolts which install the front exhaust pipe to rear exhaust pipe.
Tightening torque:

18 N.m (1.8 kgf-m, 13.0 ft-lb)

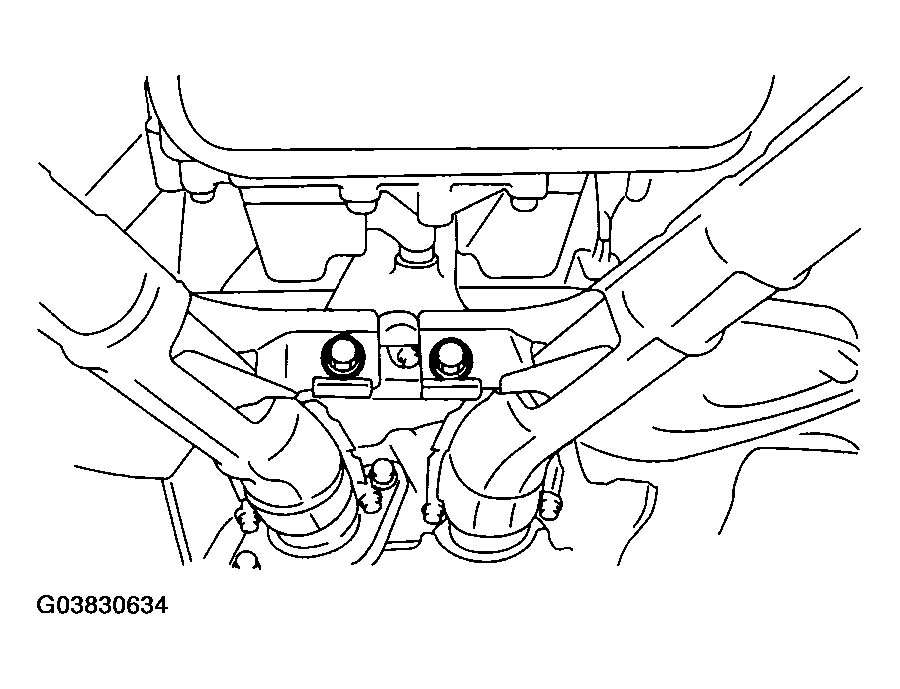

Fig 4: Tightening Bolts Installing Front Exhaust Pipe To Rear Exhaust Pipe
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts which hold the front exhaust pipe assembly to hanger bracket.
Tightening torque:

35 N.m (3.6 kgf-m, 26.0 ft-lb)

Fig 5: Tightening Bolts Holding Front Exhaust Pipe Assembly To Hanger Bracket
Courtesy of SUBARU OF AMERICA, INC.
Connect the front oxygen (A/F) sensor connector (A) and rear oxygen sensor connector (B).

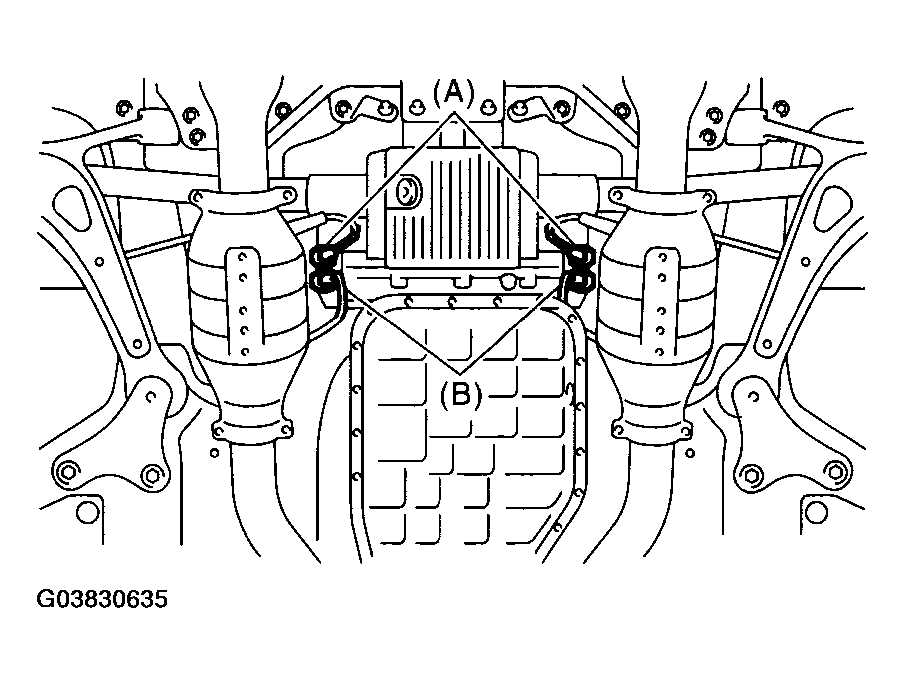

Fig 6: Connecting Front Oxygen (A/F) Sensor And Rear Oxygen Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Connect the ground cable to battery.

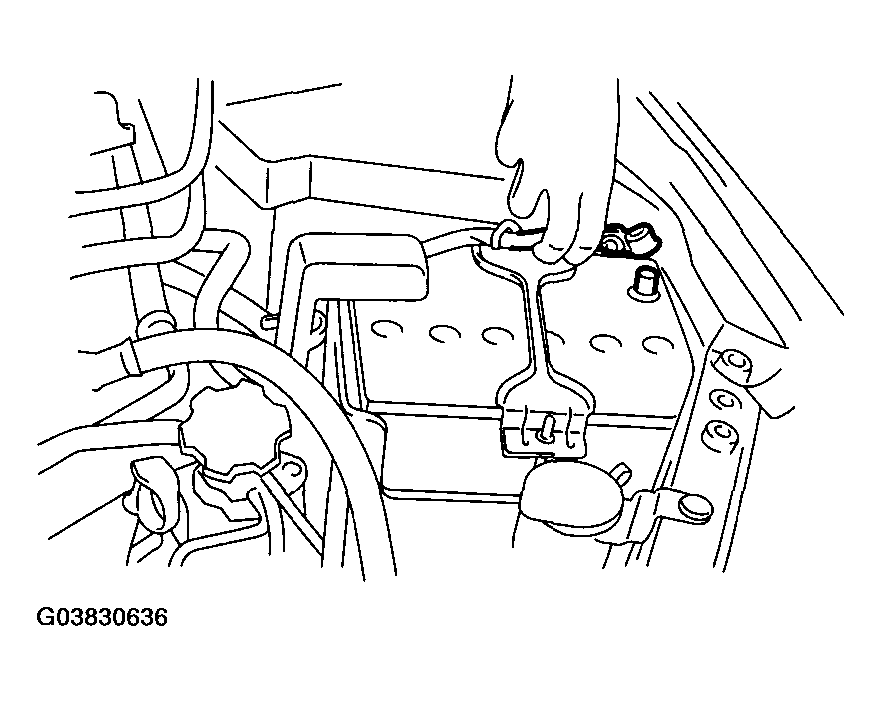

Fig 7: Connecting Ground Cable To Battery

Courtesy of SUBARU OF AMERICA, INC.
