| Step 0. Processing to self-diagnosis mode |
| Operating initial operation |
Initial illuminating |
Normal |
Normal |
Initial illuminating |
Initial illuminating |
Not beep. |
| Step 1-1. Check each indication after initial operation |
| Repeat the sweep operation (After holding on lowest position for one second, reaches to highest position within 5 seconds, and after holding on highest position for one second, reaches to lowest position within 5 seconds). |
Light ON |
With the highest brightness, illuminate the position sequentially at a cycle of 1.5 seconds. |

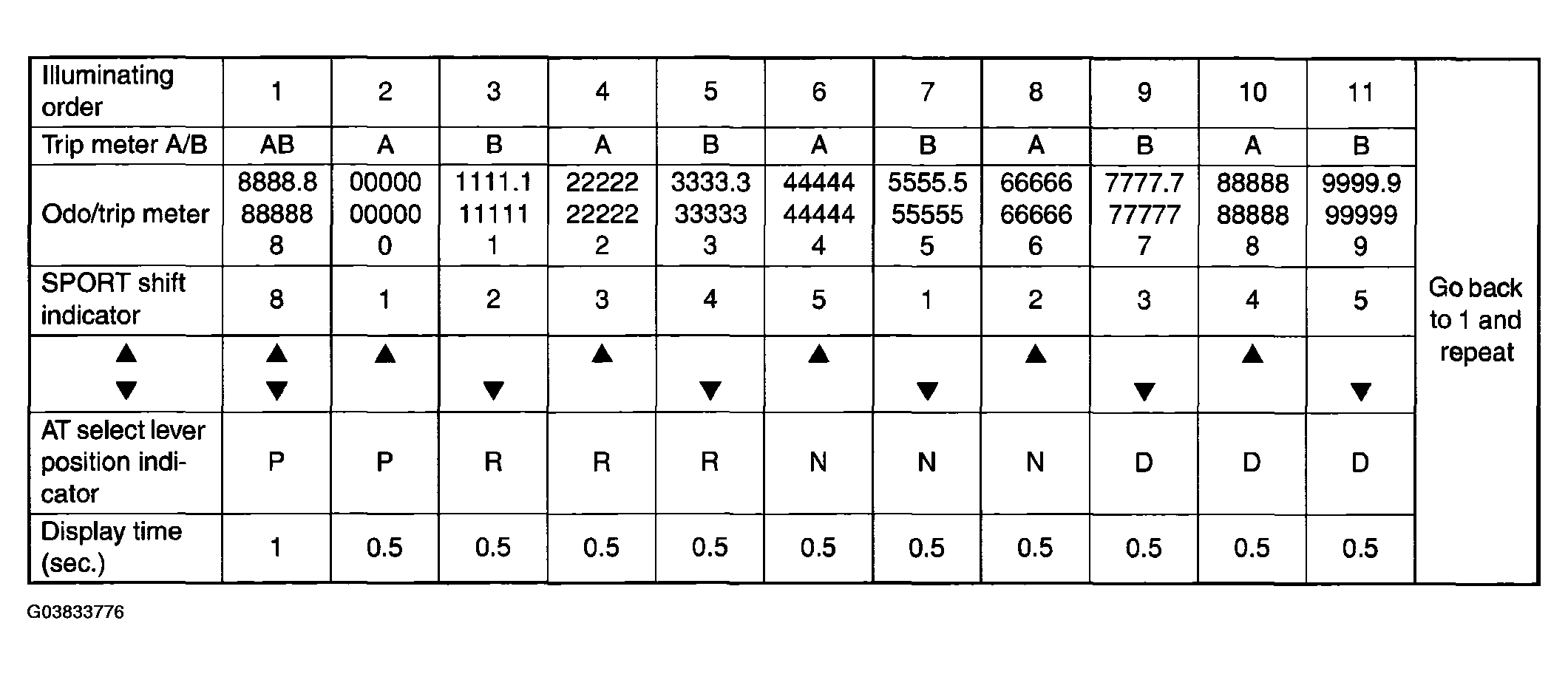

Perform the segment check. For the illumination order, refer to the illumination order table. |
Perform the segment check. For the illumination order, refer to the illumination order table. |
Light at the highest brightness. |
Not beep. |
| Step 1-2. Press the trip knob (trip knob input is not accepted till the meter indicator needle reaches the highest position): sweep complete, AT select lever position indicator display is set |
| After completing sweep in step 1-1, back to lowest position. |
Light ON |
Keep the position indicated when the trip knob is pressed. |
Underbar" _" is displayed. |
"1" is displayed. |
Light at the highest brightness. |
Not beep. |
| Step 2-1. Press the trip knob, and hold it: Check each meter |
| All meters are moved simultaneously in every 0.5 sec. from the lowest position to highest position. Speedometer/Tachometer: Approx. 5 degrees at every movement. Water temperature gauge/Fuel gauge: Approx. 2 degrees at every movement. |
Light OFF |
Keep the position indicated that set in step 1-2. |
Display the current meter directing angle on odometer. Ex.) Display "135054" when Speedometer/Tachometer: 135 degree, Water temperature gauge/Fuel gauge: 54 degree. |
" 2" is displayed. |
Light at the highest brightness. |
Not beep. |
| Step 2-2. Release the trip knob: Specifying the meter directing position |
| Stop at directing position when the trip knob is released. |
Light OFF |
Keep the position indicated that specified at step 1-2. |
Display the current meter directing angle on odometer. |
"2" is displayed. |
Light at the highest brightness. |
Not beep. |
| Step 3-1. Press the trip knob, and hold it: Check illumination |
| Keep the position that specified at step 2-2. |
Light OFF |
Varying from the highest brightness (ILL6) to the lowest luminescence (ILL1) every second. After reaching at ILL1, repeat it from ILL6. |
Illumination brightness is displayed. (From ILL6 to ILL1) |
"3"is displayed. |
Varying from the highest brightness (ILL6) to the lowest luminescence (ILL1) every second. After reaching at ILL1, repeat it from ILL6. |
Not beep. |
| Step 3-2. Release the trip knob: Specifying the illumination brightness |
| Keep the position that specified at step 2-2. |
Light OFF |
Keep the brightness at the time when the trip knob is released. |
Display the brightness at the time when the trip knob is released. |
"3" is displayed. |
Keep the brightness at the time when the trip knob is released. |
Not beep. |
| Step 4-1. Press the trip knob: Check the beeping of SPORT shift buzzer (AT model) |
| All meter indicator needle returns to lowest position. |
Light OFF |
Light at the highest brightness. Keep the position indicated that set in step 1-2. |
Illumination brightness is displayed. |
" & 8"is displayed. Blinks with buzzer. |
Light at the highest brightness. |
SPORT shift buzzer beeps. |
| Step 4-2. Press the trip knob: Check the VDC indicator light (Model with VDC) |
| All meter indicator needle returns to lowest position. |
VDC warning light and VDC operation indicator light blink. |
Light at the highest brightness. Keep the position indicated that set in step 1-2. |
Illumination brightness is displayed. |
"4" is displayed. |
Light at the highest brightness. |
Not beep. |
| Step 5. Press the trip knob: Complete the self-diagnosis 1 cycle |
| All meter indicator needle returns to lowest position, and go back to step 1 after completion. |
