Headlight Assembly: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the air intake duct. (When removing the headlight RH)

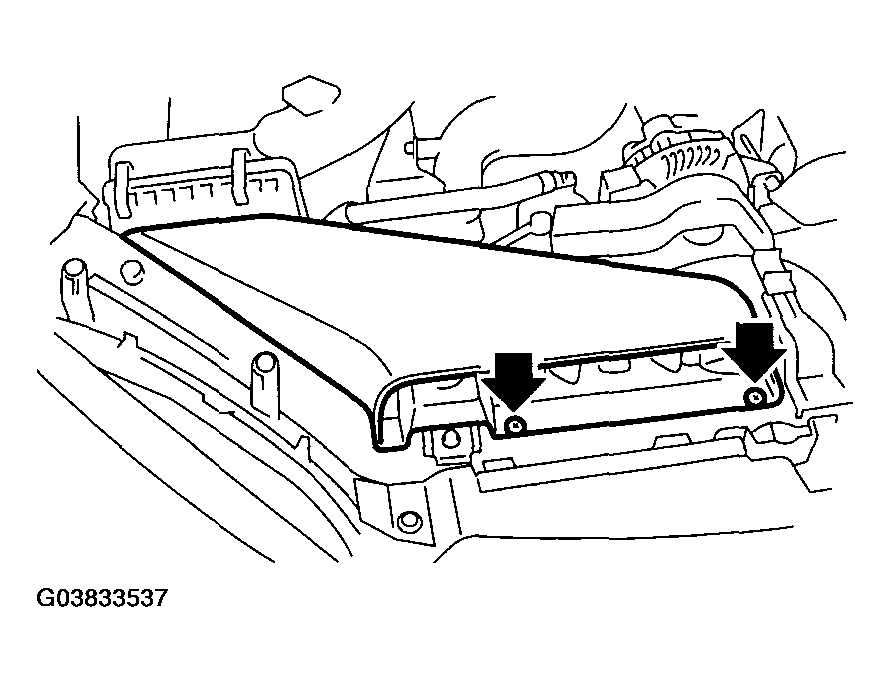

    Fig 1: Removing Air Intake Duct
    G03833537Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the front grille. < Ref. to REMOVAL , Front Grille. >
  4. Remove the front bumper. < Ref. to REMOVAL , Front Bumper. >
  5. Disconnect each harness connector.
  6. Remove the 5 bolts, disengage the clip, and then detach the headlight assembly.

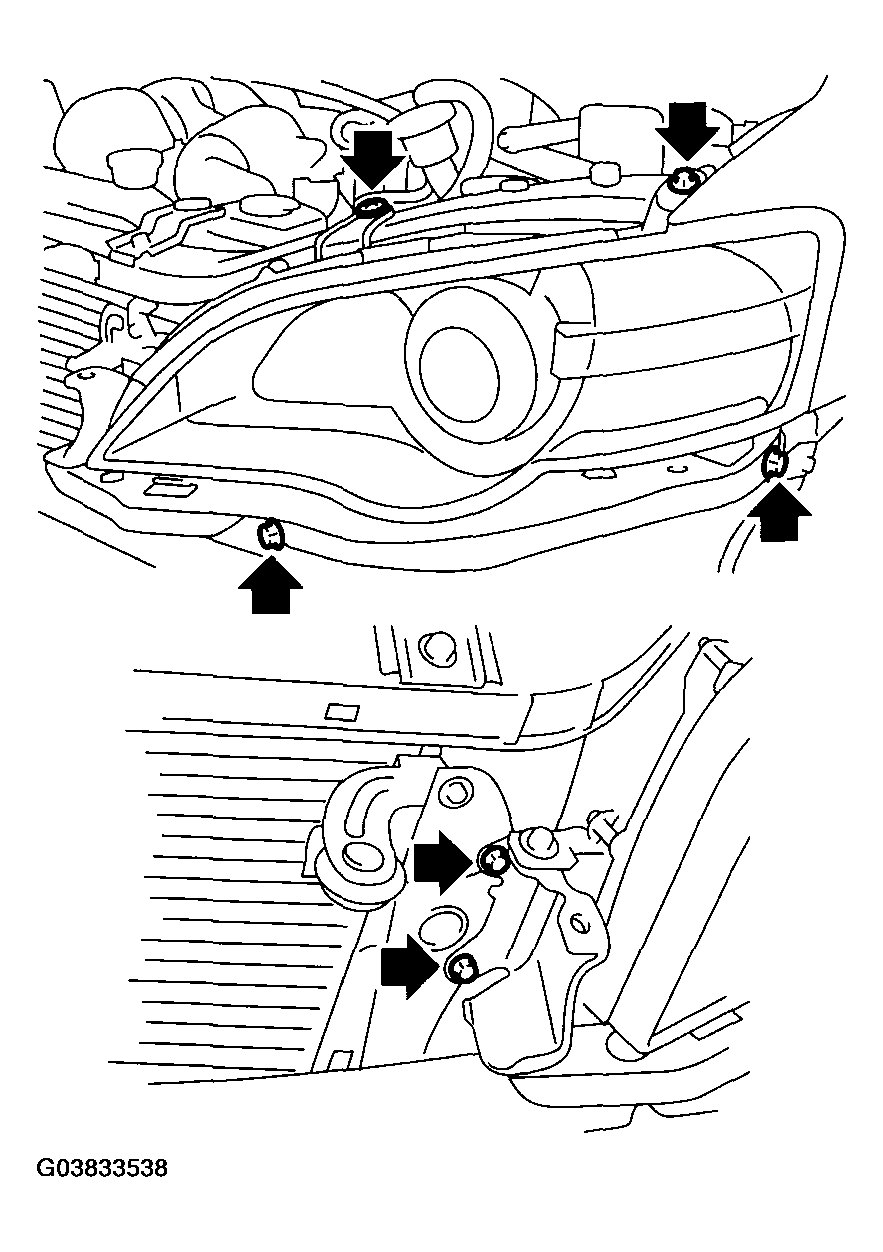

Fig 2: Removing Bolts
G03833538Courtesy of SUBARU OF AMERICA, INC.
