LEMON Manuals: Even more car manuals for everyone
Home >> Subaru >> 2005 >> Outback F6-3.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Restraints and Safety Systems >> Seat Occupant Sensor >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostic Strategies >> Basic Diagnostic Procedure

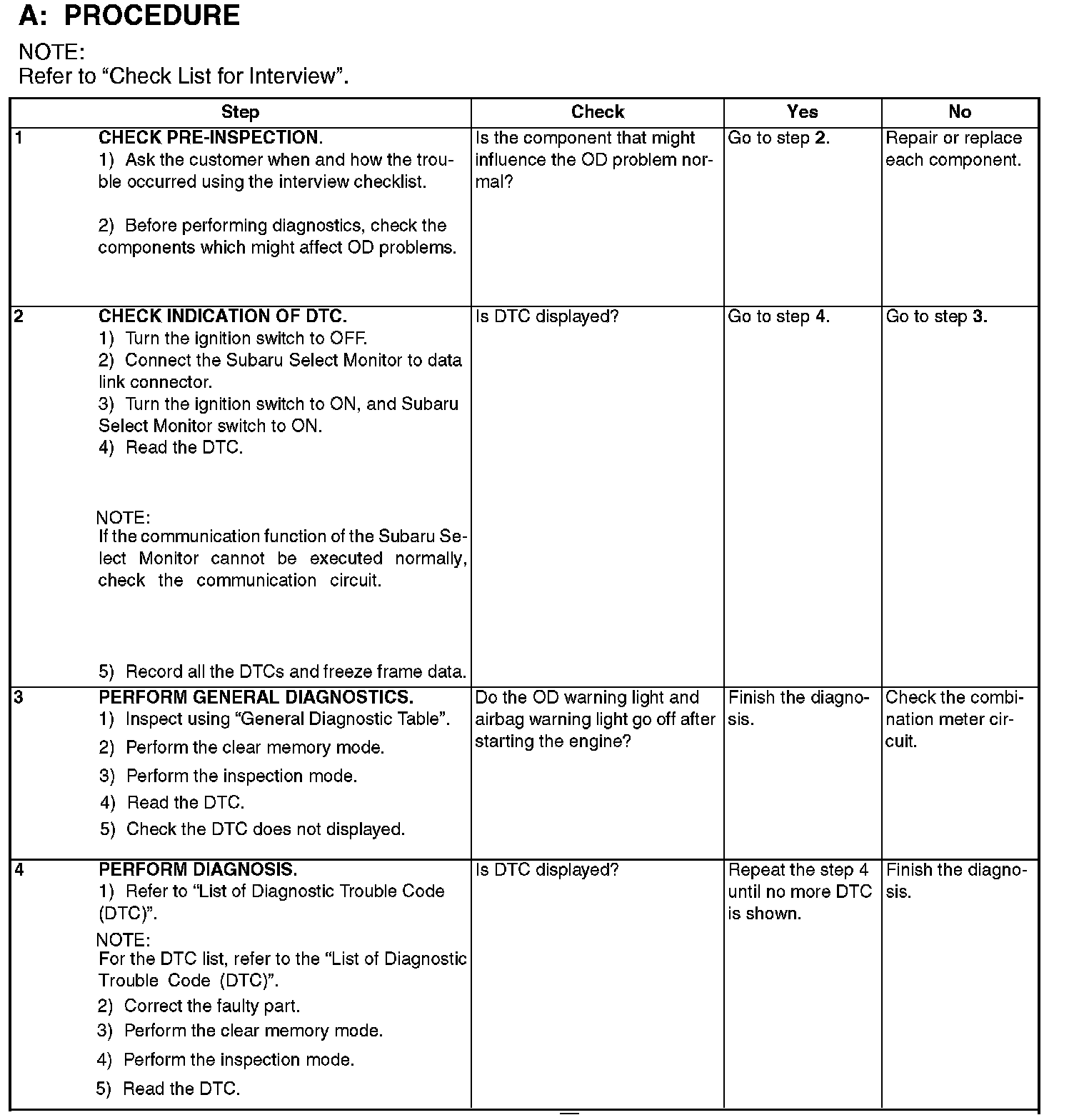

Basic Diagnostic Procedure

Step 1 - 4:
