Pinout Values and Diagnostic Parameters

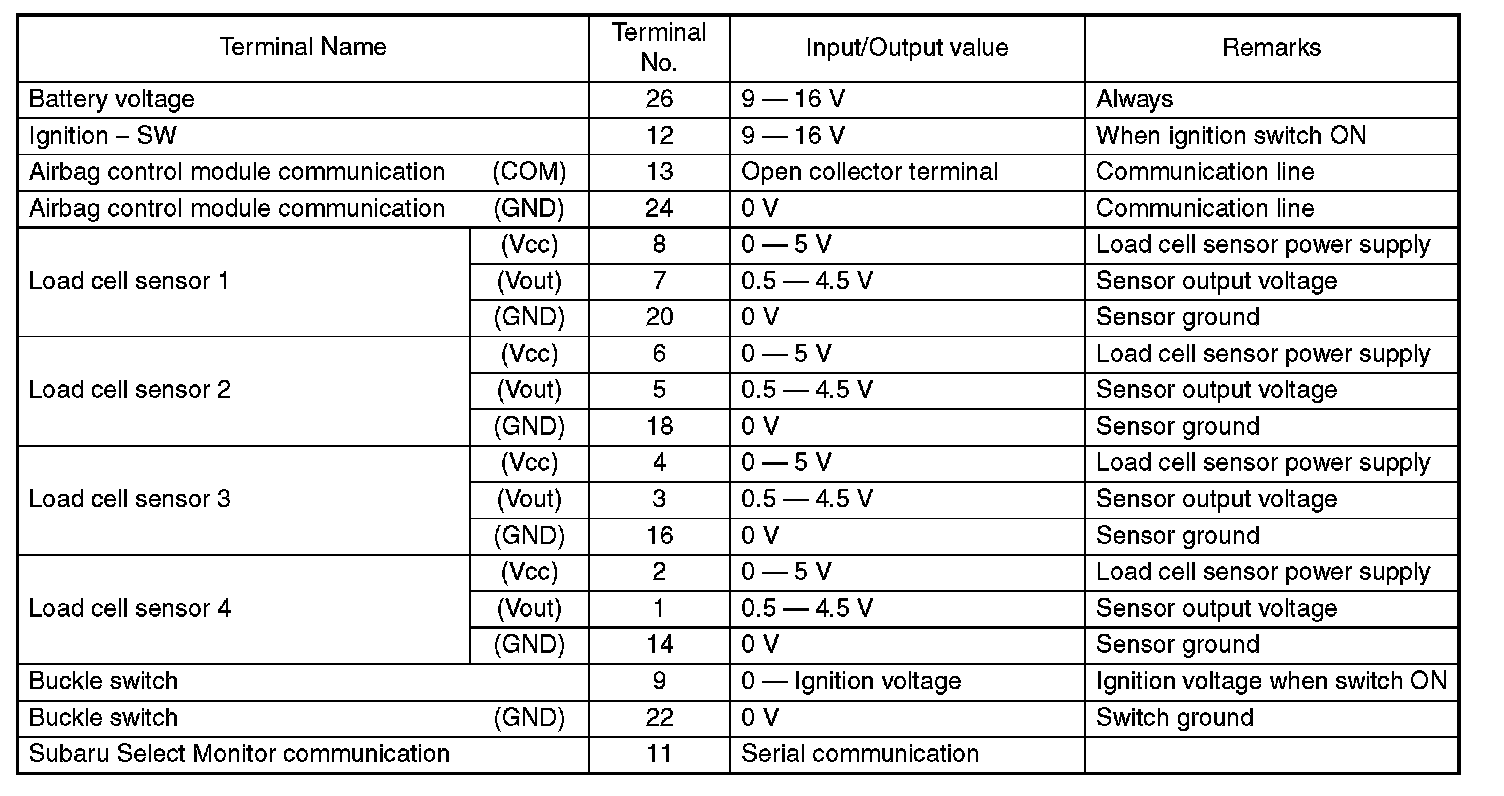

Control Module I/O Signal

ELECTRICAL SPECIFICATION

Wiring Diagram:

CAUTION: Never disassemble or disconnect the control module, load cell sensor or coupling harness, since each component of occupant detection system is assembled as seat frame assembly. (Disconnection from body harness connector, and disconnection of side airbag, buckle switch and power seat circuit connector are OK.)
