Home >> Subaru >> 2005 >> Outback F6-3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> S/R(SEDAN)-01

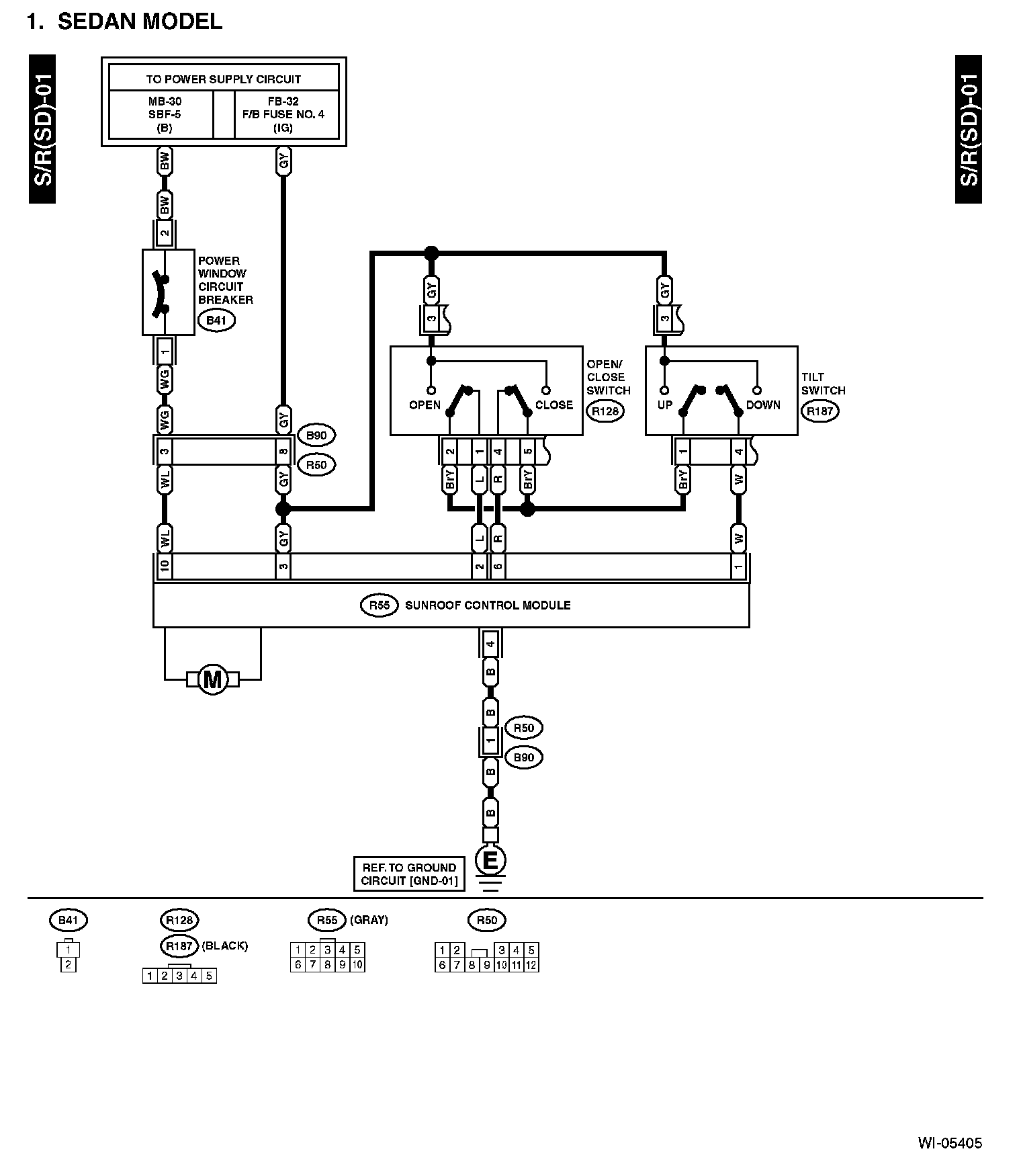

S/R(SEDAN)-01

S/R(SD)-01:
