P2102

DTC P2102 THROTTLE ACTUATOR CONTROL MOTOR CIRCUIT LOW

DTC DETECTING CONDITION:
- Detect as soon as malfunction occurs.
- GENERAL DESCRIPTION

TROUBLE SYMPTOM:
- Erroneous idling
- Poor driving performance
- Engine stalls.

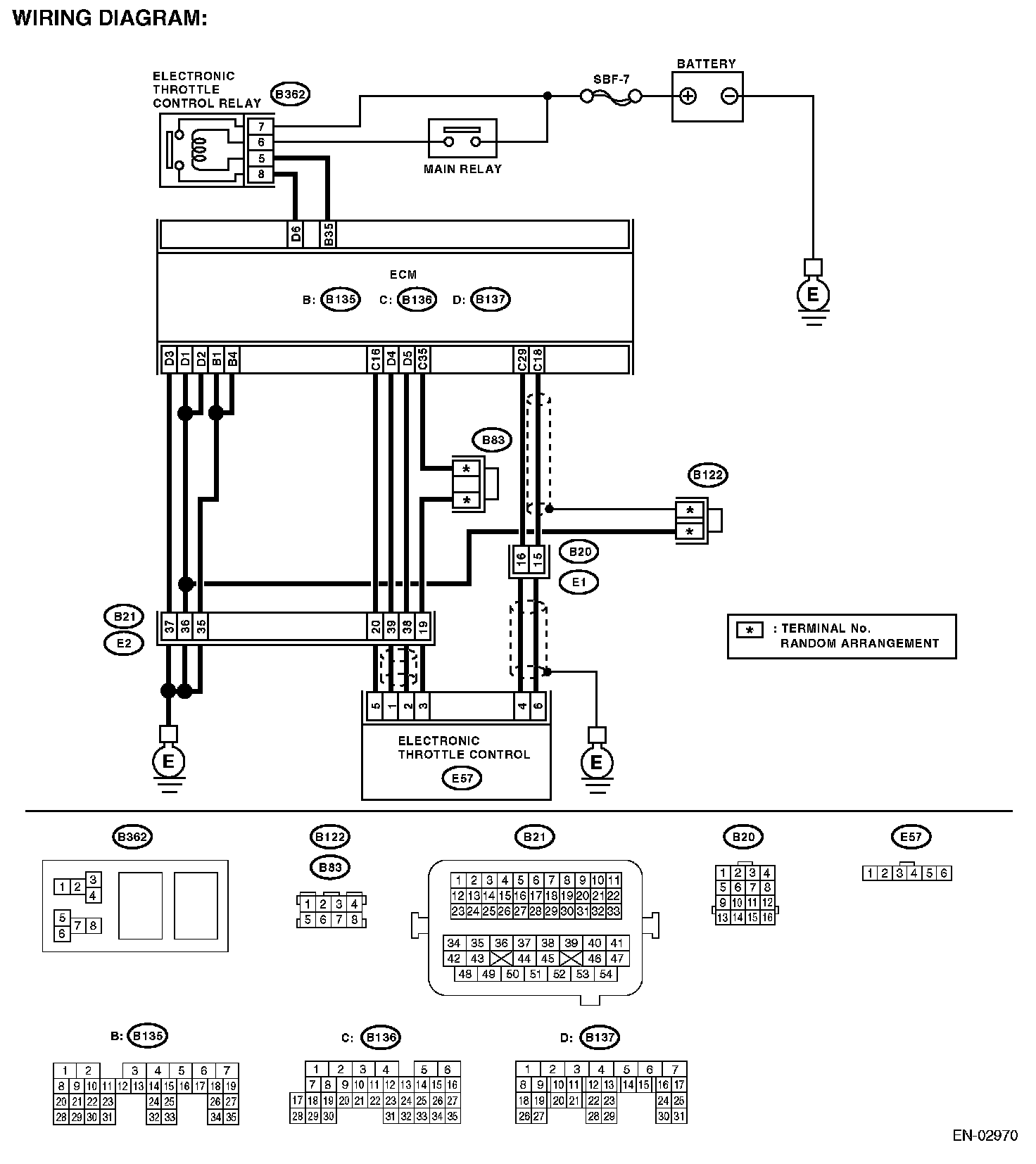

Wiring Diagram:

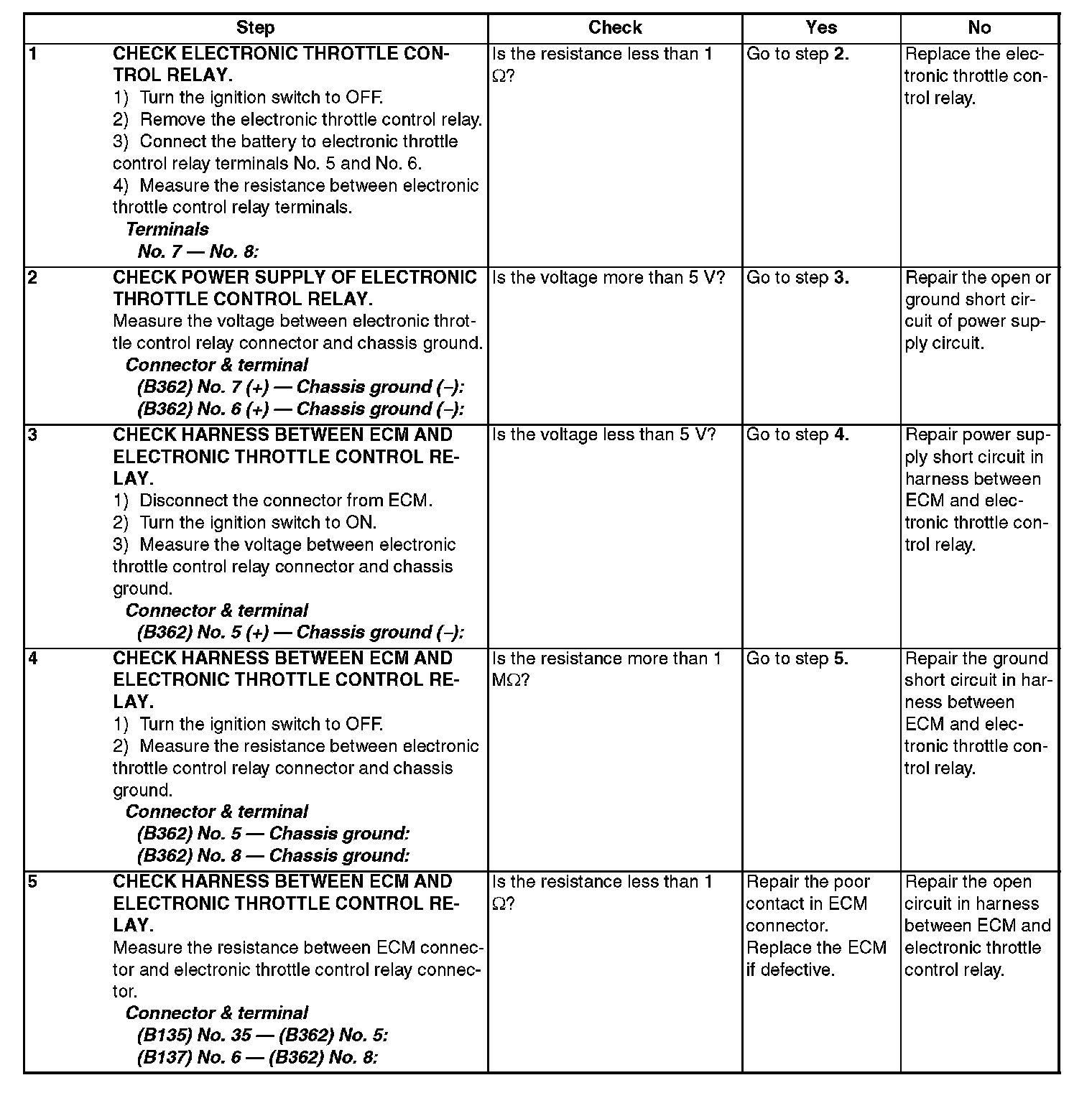

Step 1 - 5:
