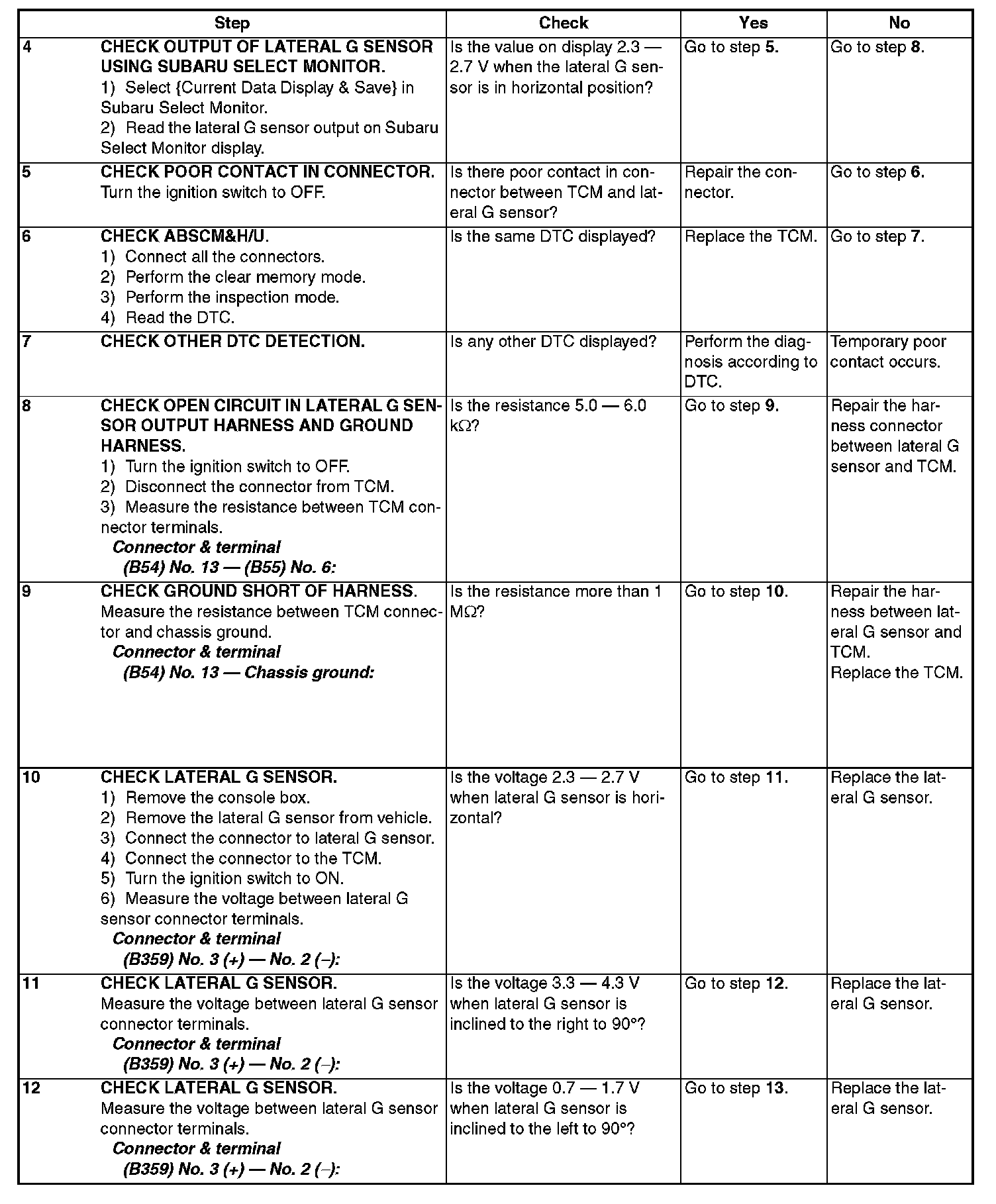

DTC P1761 LATERAL ACCELERATION SENSOR CIRCUIT LOW
DTC DETECTING CONDITION
-
Faulty lateral G sensor output voltage
WIRING DIAGRAM
