C0127

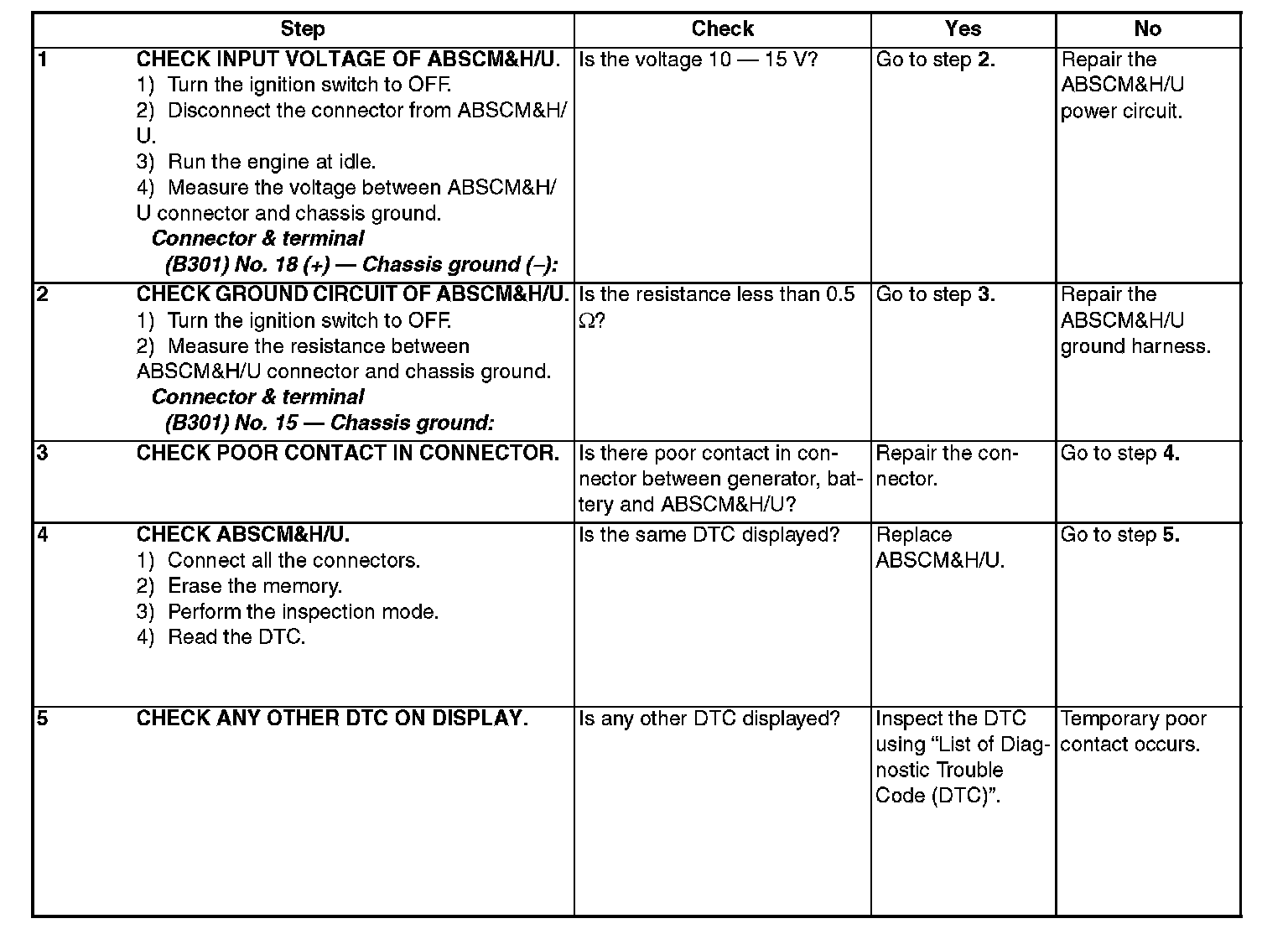

DTC C0127 REAR OUTLET SOLENOID VALVE RH MALFUNCTION IN ABS CONTROL MODULE AND HYDRAULIC CONTROL UNIT (ABSCM&H/U)
DTC DETECTING CONDITION:
- Defective harness connector
- Defective outlet solenoid valve in ABSCM&H/U

TROUBLE SYMPTOM:
- ABS does not operate.
- EBD does not operate.

NOTE: Brake warning light comes on as well as ABS warning light.








WIRING DIAGRAM
