A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
C Code Charts
>>
C0116
C0116

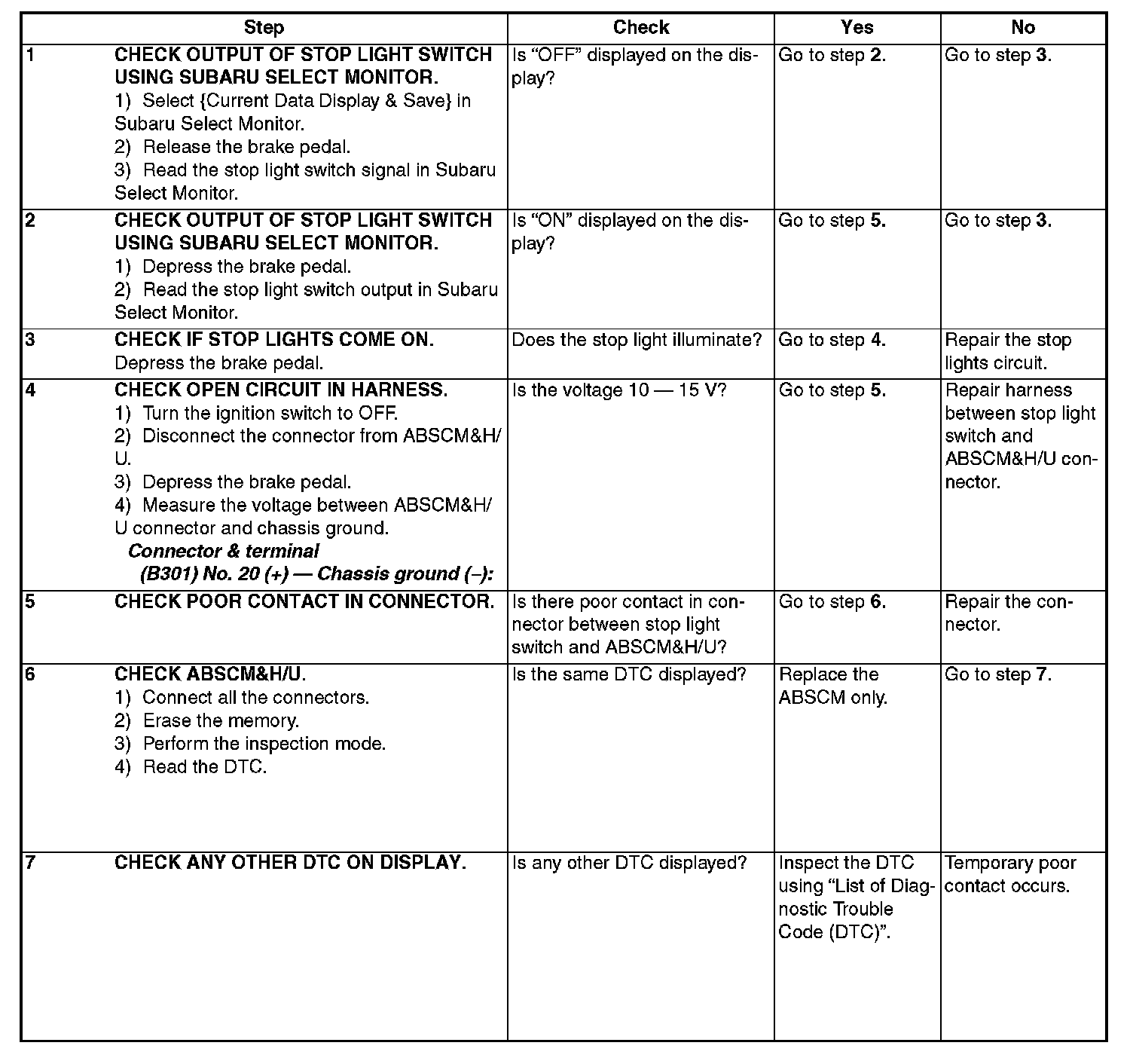

DTC C0116 FAULTY STOP LIGHT SWITCH
DTC DETECTING CONDITION: Defective stop light switch
WIRING DIAGRAM
