C0114

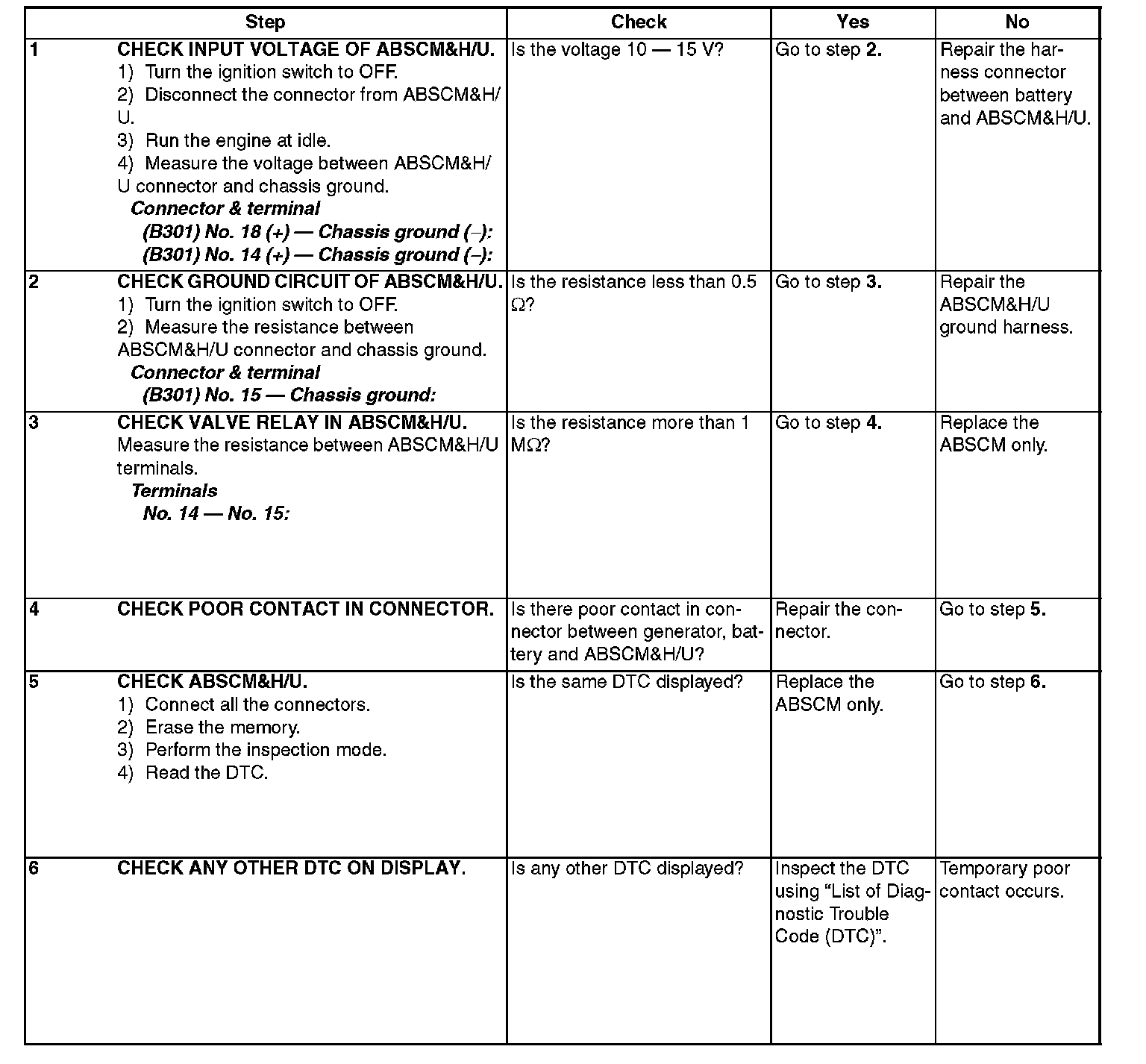

DTC C0114 VALVE RELAY MALFUNCTION
DTC DETECTING CONDITION: Defective valve relay

TROUBLE SYMPTOM:
- ABS does not operate.
- EBD does not operate depending on the trouble contents.

NOTE: Brake warning light comes on as well as ABS warning light when EBD does not operate.








WIRING DIAGRAM
