C0109

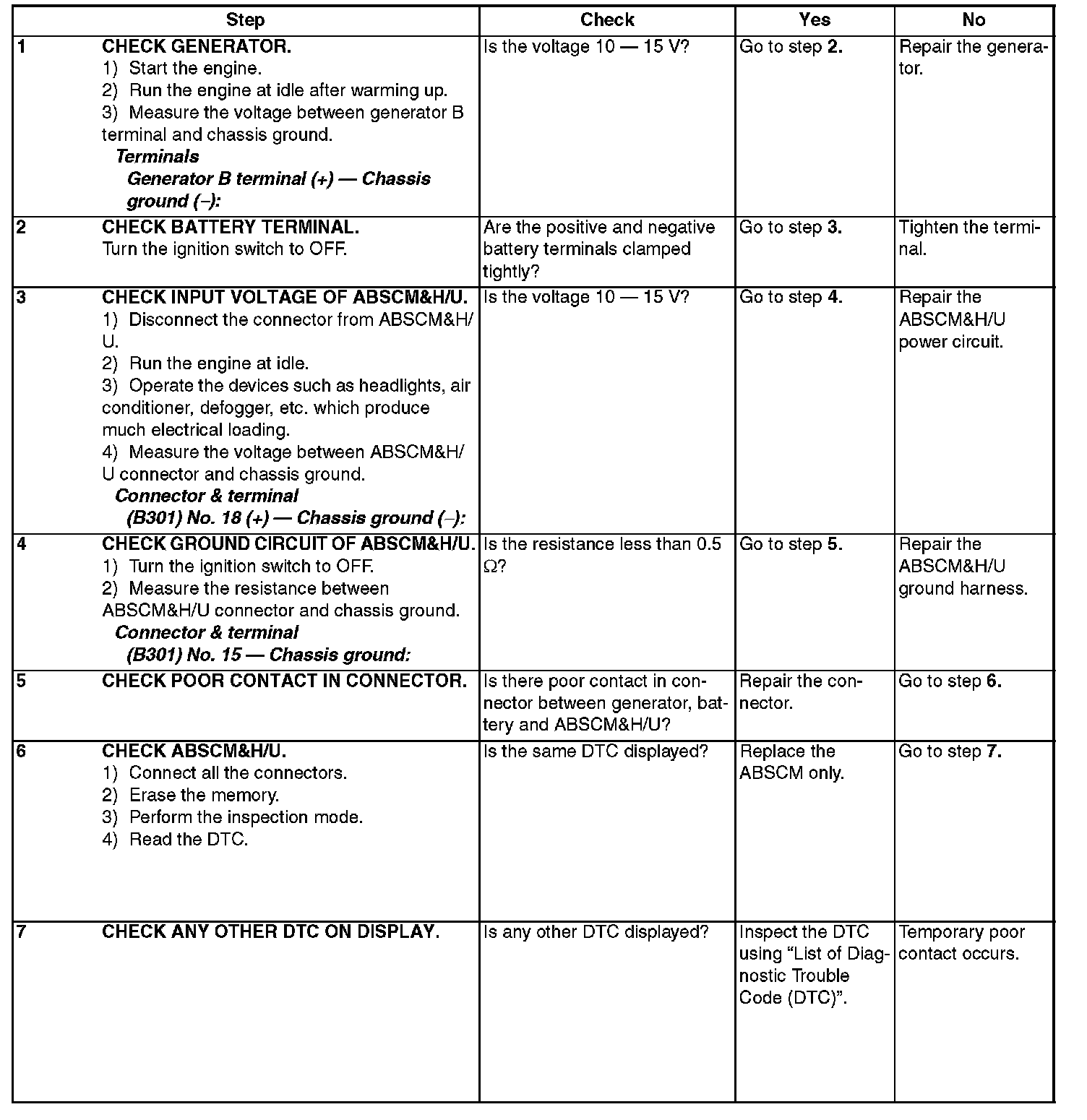

DTC C0109 POWER VOLTAGE MALFUNCTION
DTC DETECTING CONDITION:
Power voltage of the ABSCM&H/U is too low or too high.

TROUBLE SYMPTOM:
- ABS does not operate.
- EBD may not operate.

NOTE: If EBD does not operate, brake warning light comes on as well as ABS warning light. Both warning lights go off if voltage returns.








WIRING DIAGRAM
