C0104

The content of this article/image reflects the changes Identified in
TSB # 18-97-06
as of 01/04/06
and applies to 2005 Legacy and Baja models

DTC C0104 ABS WHEEL SPEED SENSOR MALFUNCTION FL SENSOR (BROKEN WIRE, INPUT VOLTAGE TOO HIGH)
DTC DETECTING CONDITION:
- Defective ABS wheel speed sensor (broken wire, input voltage too high)
- Defective harness connector
TROUBLE SYMPTOM: ABS does not operate.

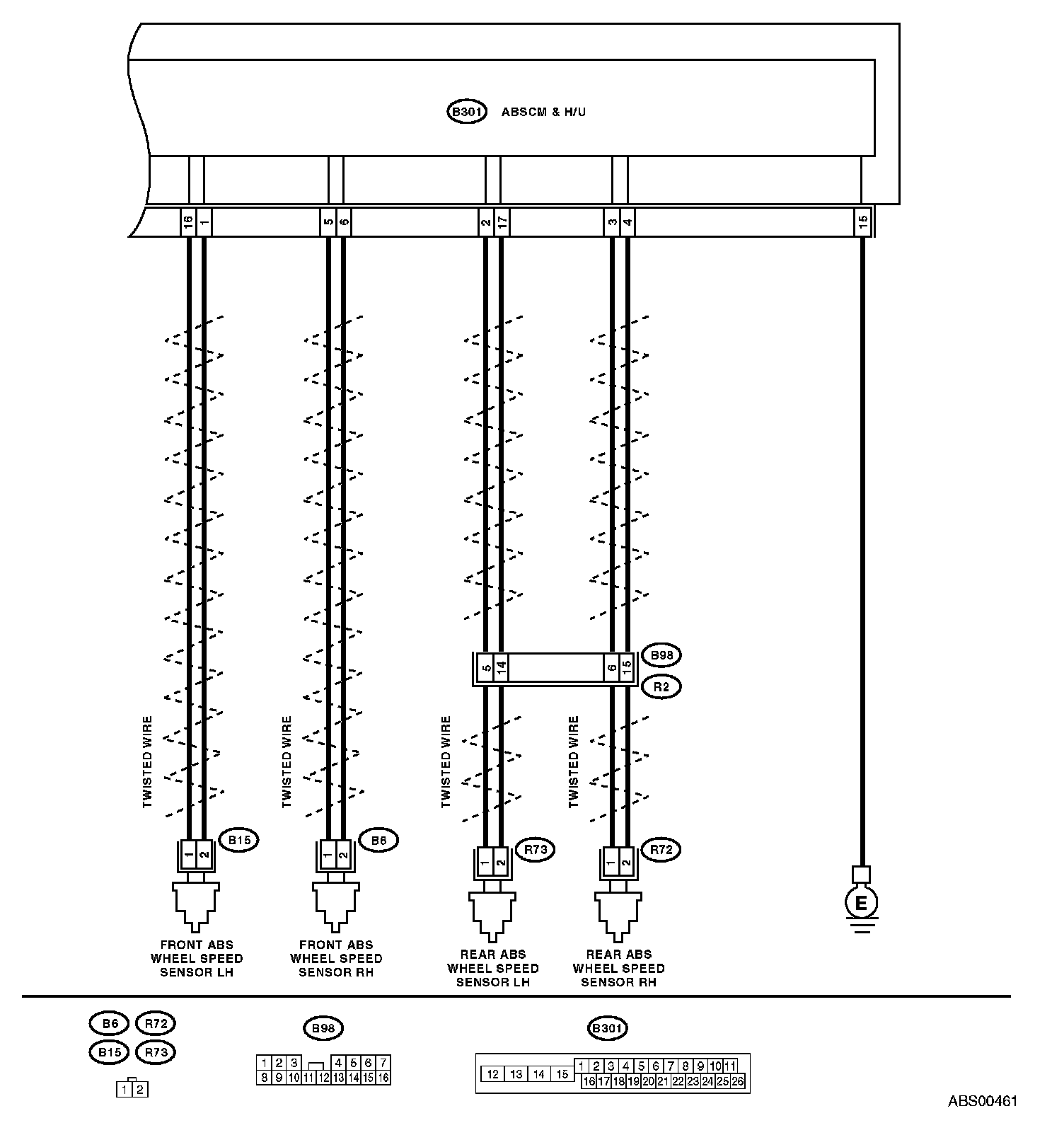

WIRING DIAGRAM
