Yaw Rate Sensor Output

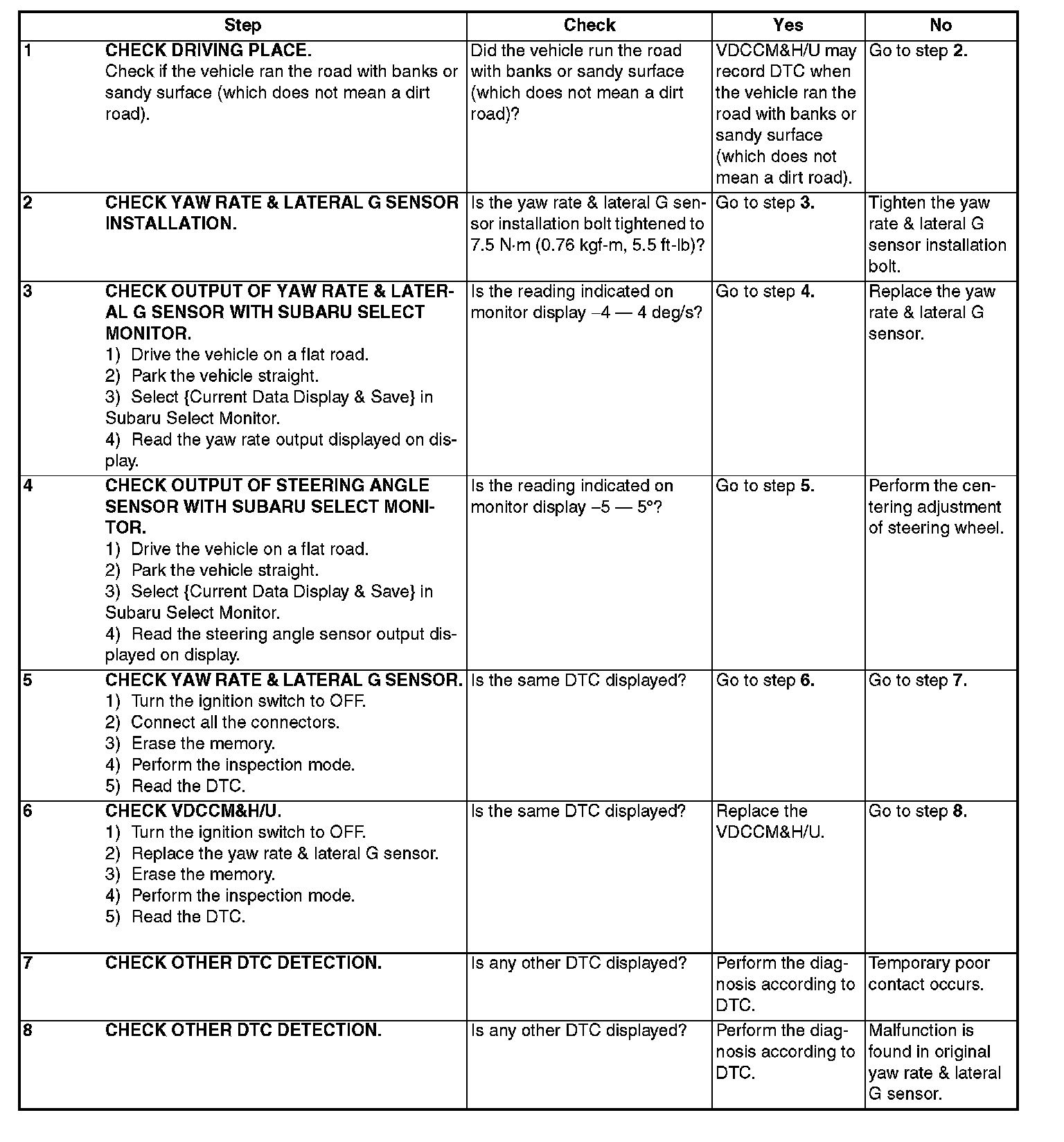

DTC C0072 YAW RATE SENSOR OUTPUT
DTC DETECTING CONDITION:
Defective yaw rate sensor

TROUBLE SYMPTOM: VDC does not operate.








WIRING DIAGRAM
