Bus Open Circuit

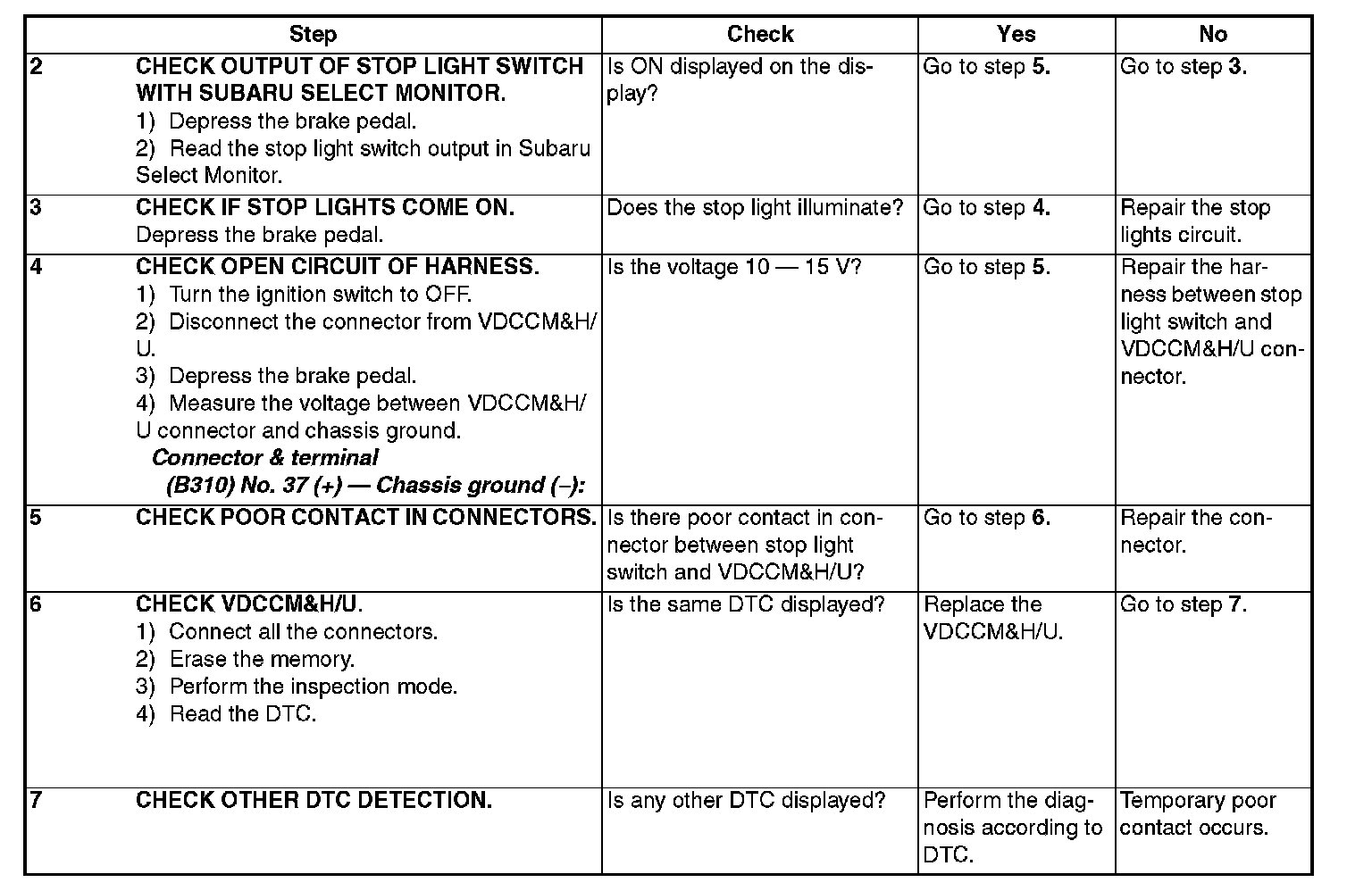

DTC C0054 BUS OPEN CIRCUIT
DTC DETECTING CONDITION:
Defective stop light switch

TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.











WIRING DIAGRAM
