Open/High Input of Rear ABS Wheel Speed Sensor LH

DTC C0027 OPEN/HIGH INPUT OF REAR ABS WHEEL SPEED SENSOR LH
DTC DETECTING CONDITION:
- Defective ABS wheel speed sensor (broken wire, input voltage too high)
- Defective harness connector

TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

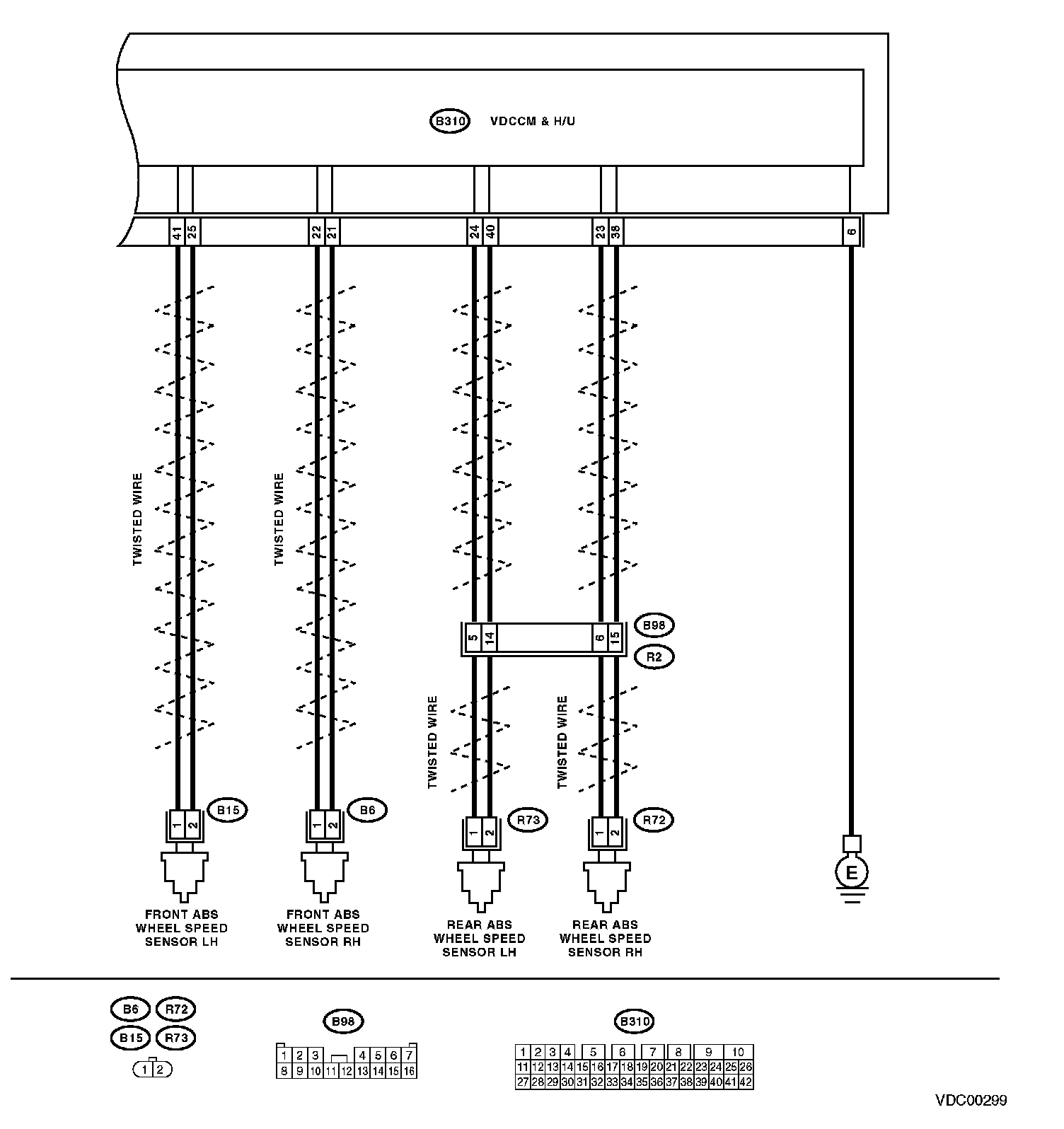

WIRING DIAGRAM
