B0500

DTC B0500 KEYLESS UART COM. MALFUNCTION

DTC DETECTING CONDITION:
UART between keyless control unit and body integrated unit is open or shorted, connector is not connected securely, the terminal has poor caulking.

TROUBLE SYMPTOM:
Door lock does not operate with keyless.

Wiring Diagram:

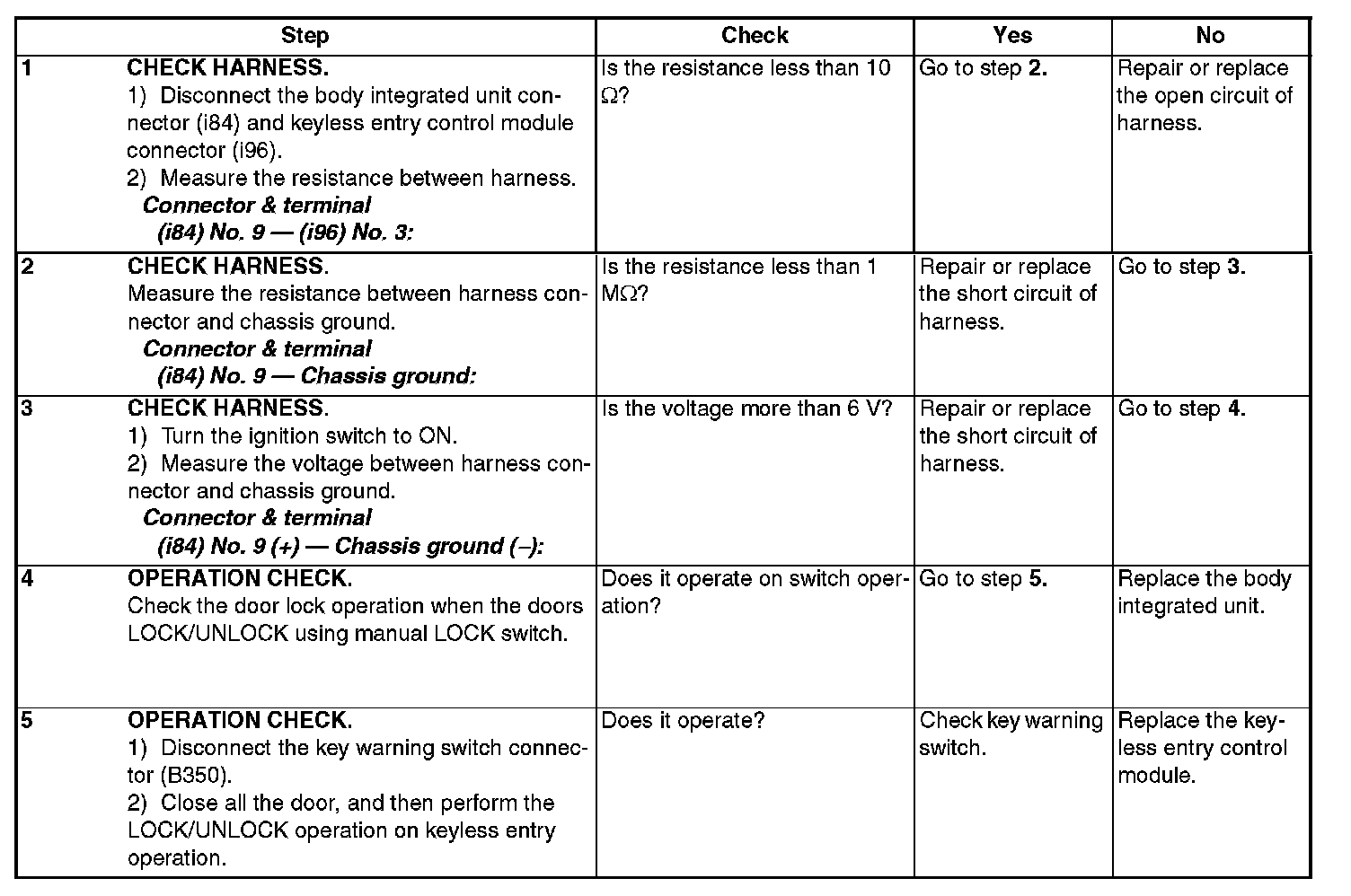

Step 1 - 5:
