B0321

DTC B0321 CAN-LS METER NO-RECEIVE DATA

DTC DETECTING CONDITION:
Combination meter unit error, or harness between the main harness splice and combination meter unit is open or short, the connector is not connected securely and the terminal has poor caulking.

TROUBLE SYMPTOM:
Fail mode occurs because the data is not received from combination meter unit.

Wiring Diagram:

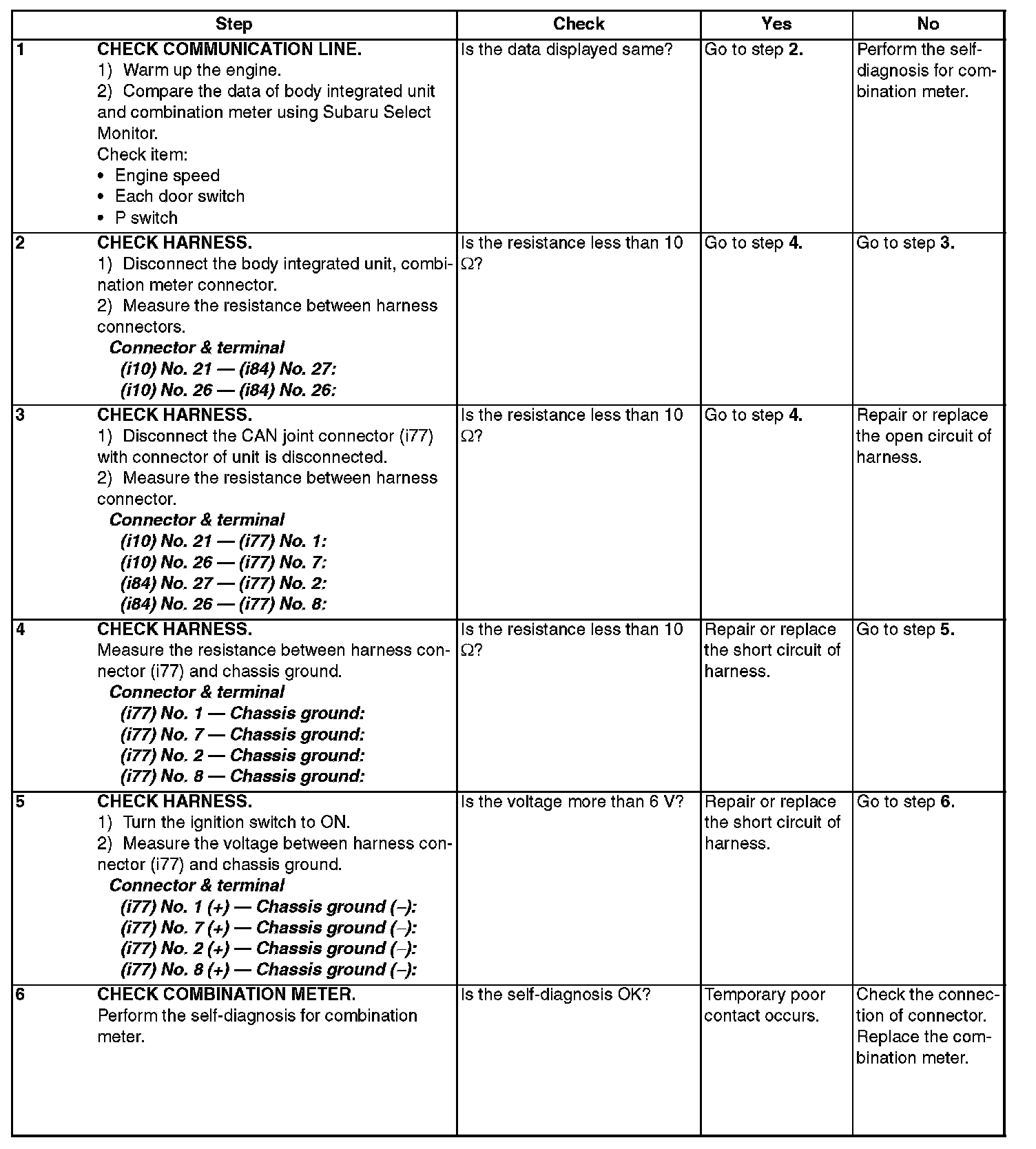

Step 1 - 6:
