B0302
DTC B0302 CAN-LS BUS OFFDTC DETECTING CONDITION:
Because of occurring a lot of error data, some units are disconnected not to affect other units.
Communication error from the unit which error is occurred is input at the same time.
TROUBLE SYMPTOM:
"Er LC" is displayed in odo/trip meter.
Wiring Diagram:

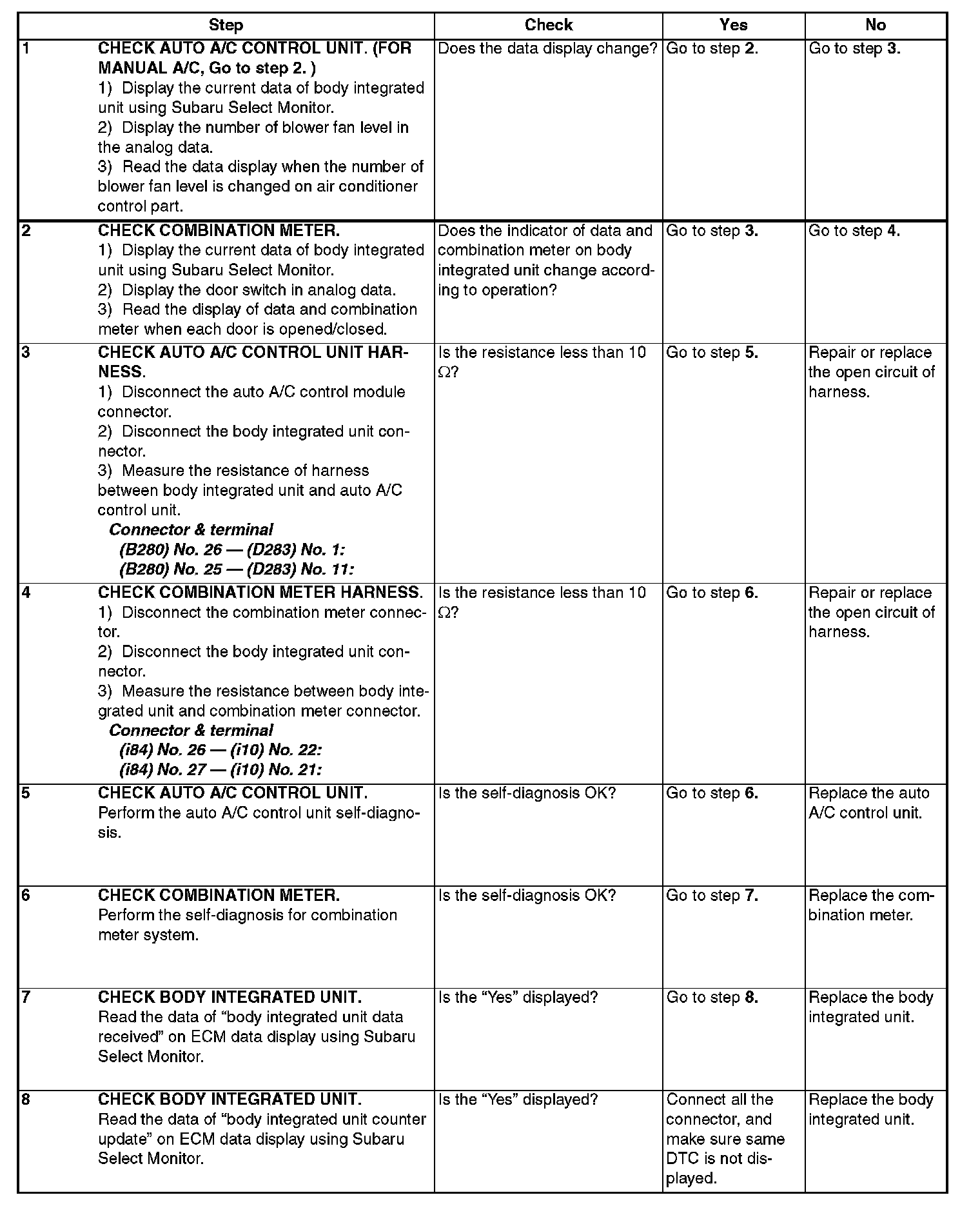

Step 1 - 8:
