B0202

DTC B0202 CAN-HS BUS OFF

DTC DETECTING CONDITION:
- Locate the unit or CAN line which trouble occurs, and repair and replace it.
- Not received data and error data may be detected at the same time.

TROUBLE SYMPTOM:
"Er HC" is displayed in odo/trip meter.

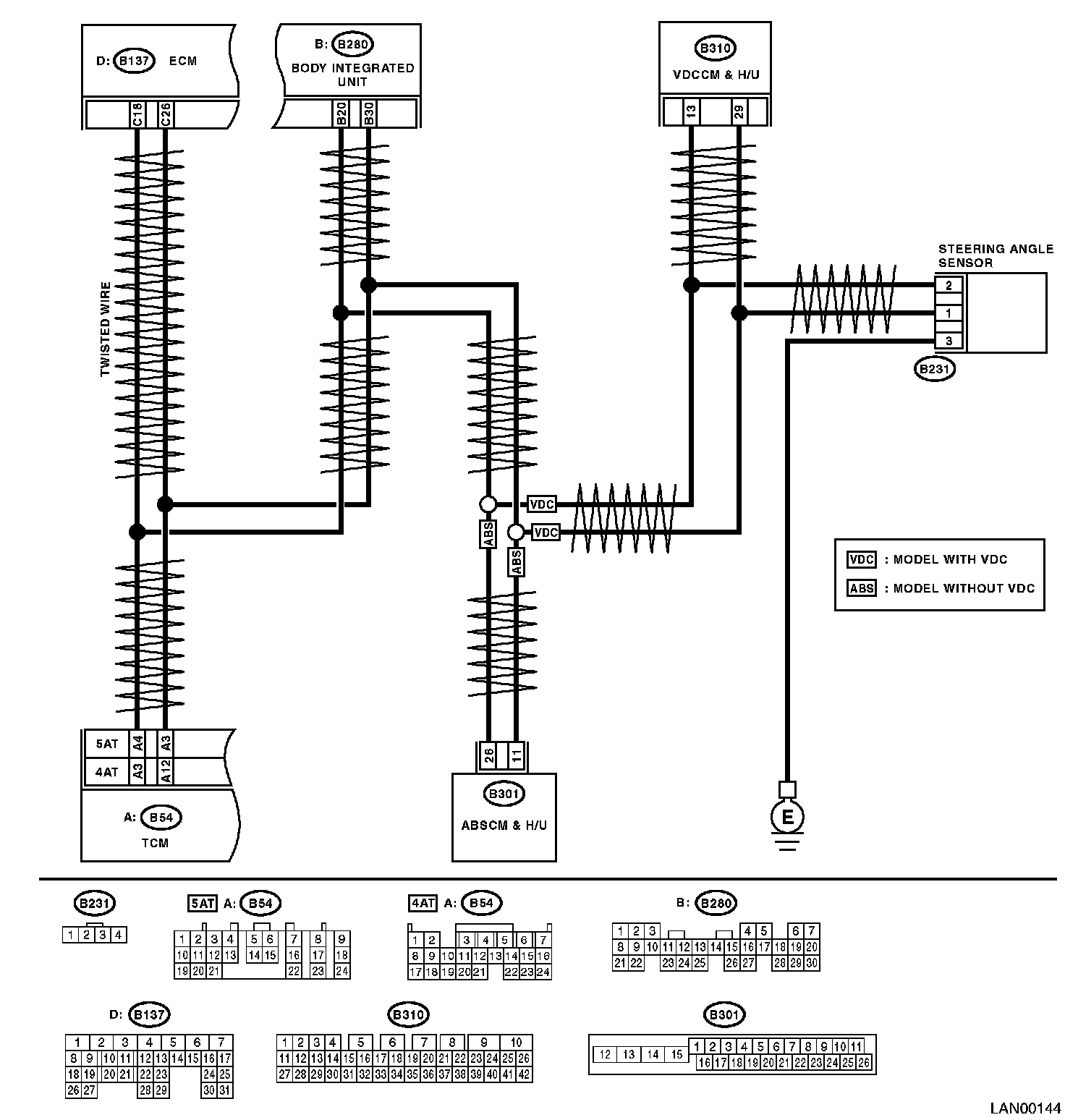

Wiring Diagram:

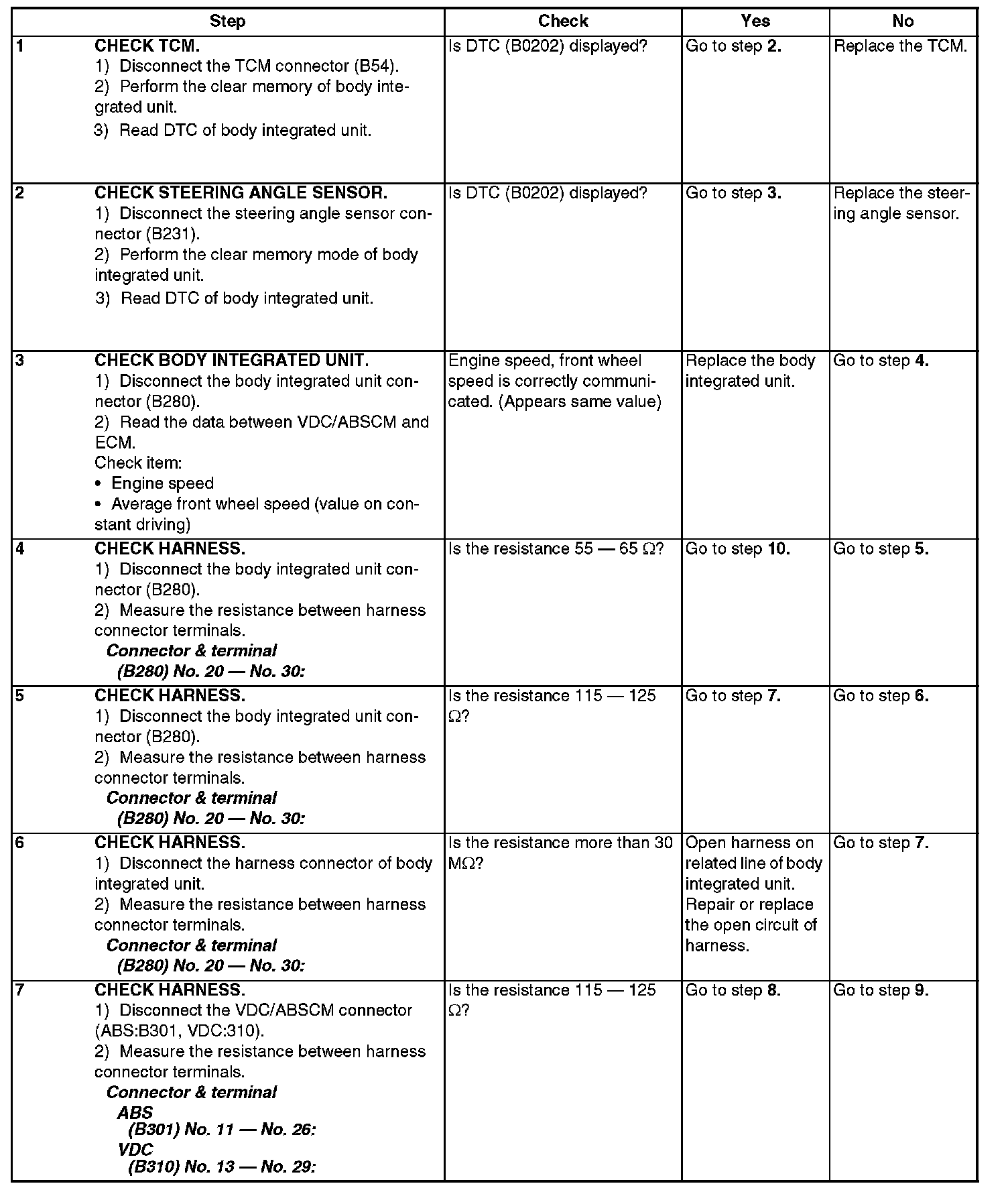

Step 1 - 7:

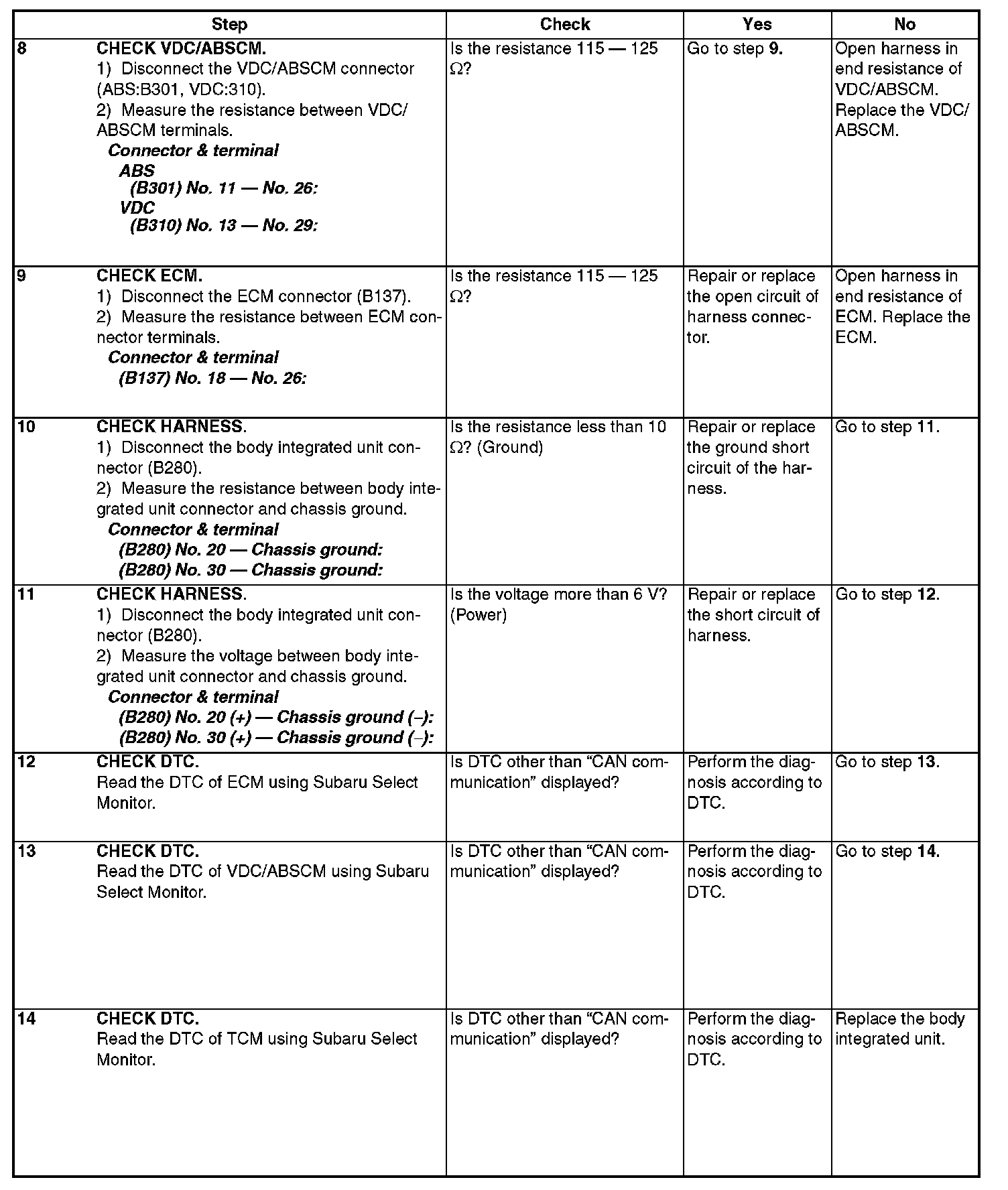

Step 8 - 14:
