B0102

DTC B0102 BATT P/SUPPLY MALFUNCTION CONT.

DTC DETECTING CONDITION:
BATT power backup circuit is open or shorted.

TROUBLE SYMPTOM:
- Engine malfunction indicator light may be illuminates.
- Keyless entry, room light, key illumination does not operate.
- "En IU" may display in combination meter.

NOTE: When some B0101 BATT p/supply malfunction cont. are output at the same time, all function of body integrated unit may not function.

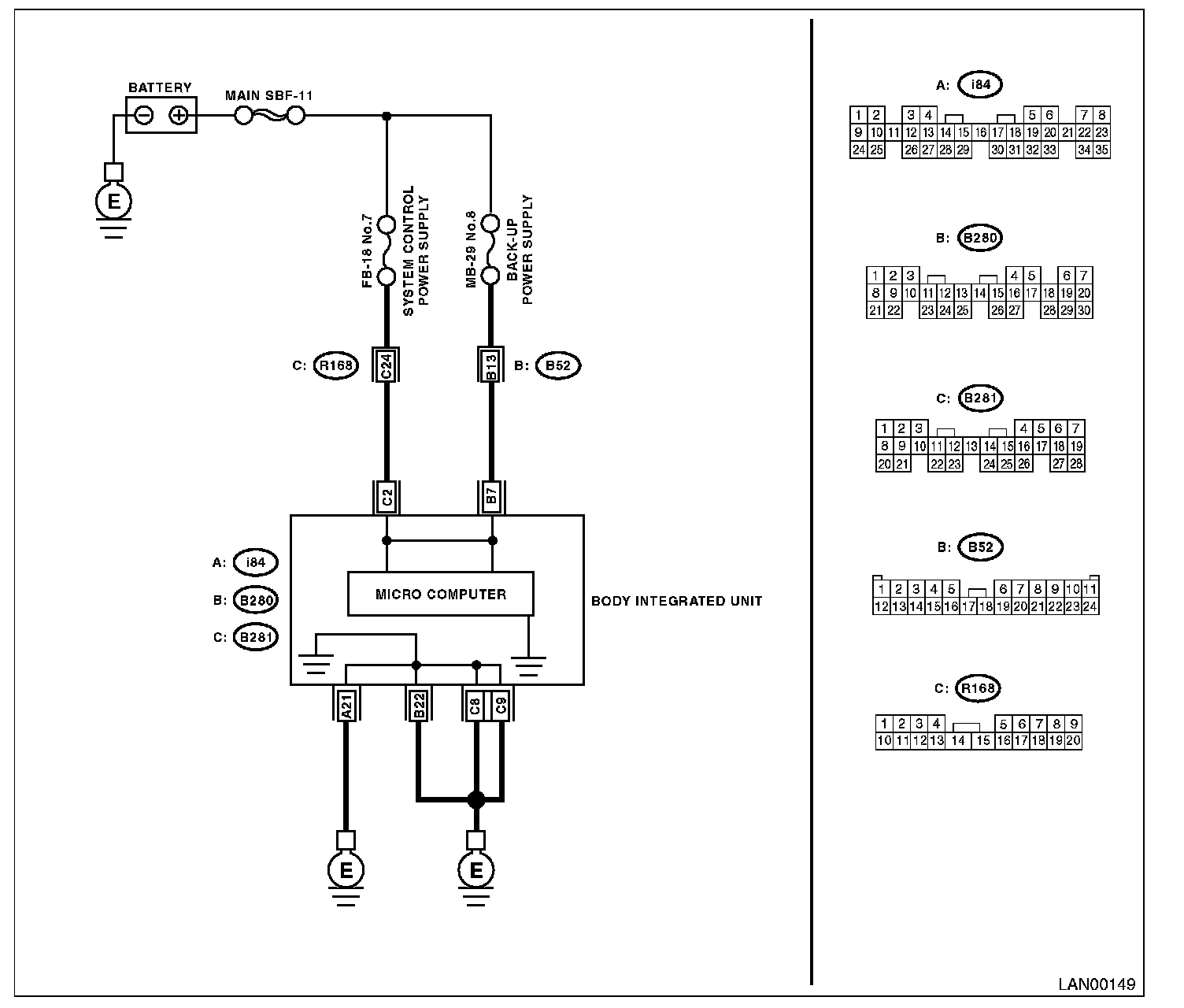

Wiring Diagram:

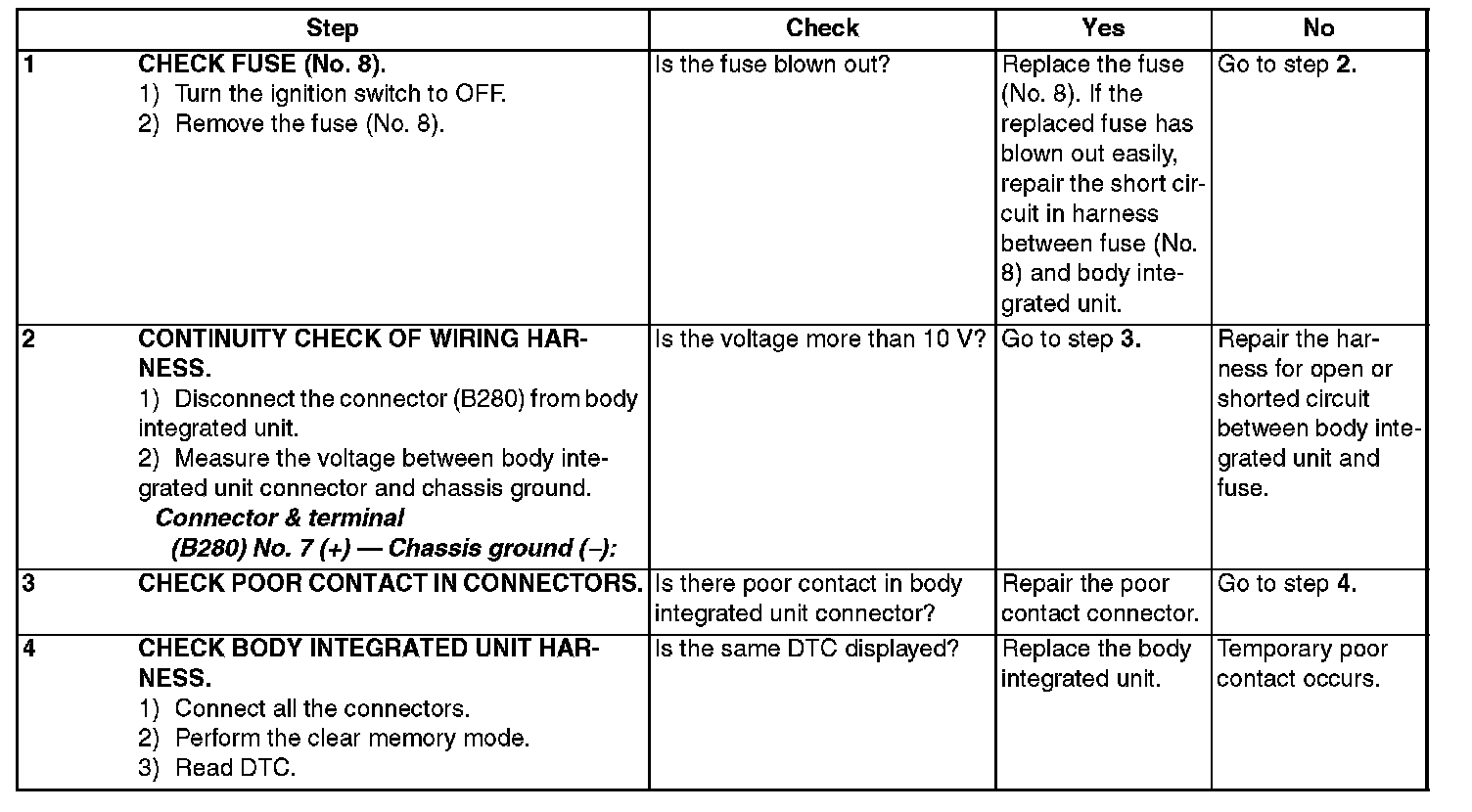

Step 1 - 4:
