Operation

OPERATION

STARTER INTERLOCK MECHANISM

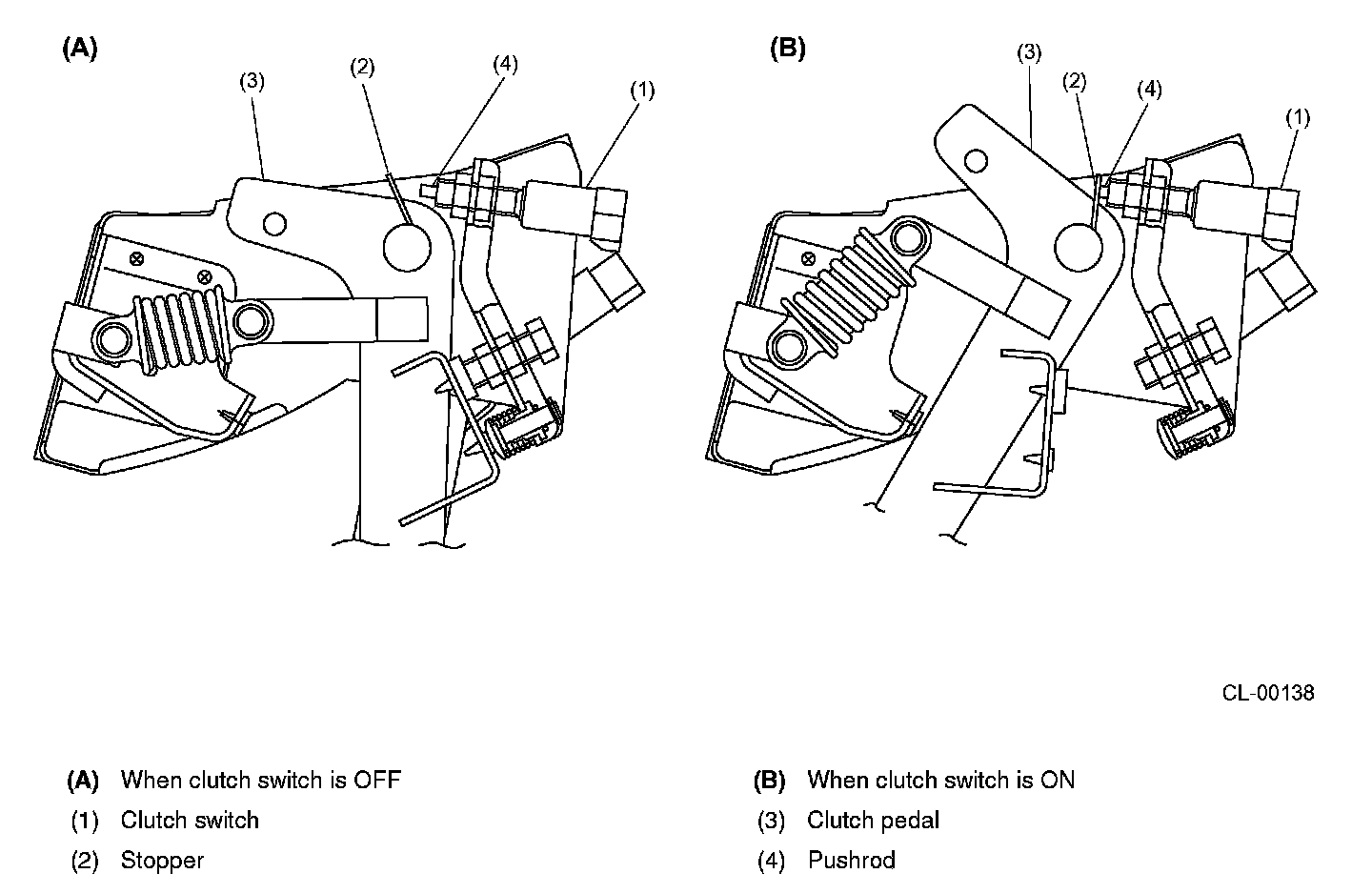

Schematic Drawings:

When the clutch pedal is fully depressed, the stopper on the pedal pushes the clutch switch pushrod inwards.
When the pushrod is pressed in, the switch turns ON and connects the ignition switch to the starter circuit enabling engine start.
