Tire Pressure Warning Light Does Not Come OFF

TIRE PRESSURE WARNING LIGHT DOES NOT COME OFF

DETECTING CONDITION:
- Defective combination meter
- Defective harness
- Tire pressure is low.
- Transmitter (ID) is not registered.

TROUBLE SYMPTOM:
Tire pressure warning light does not go off after engine starts.

Wiring Diagram:

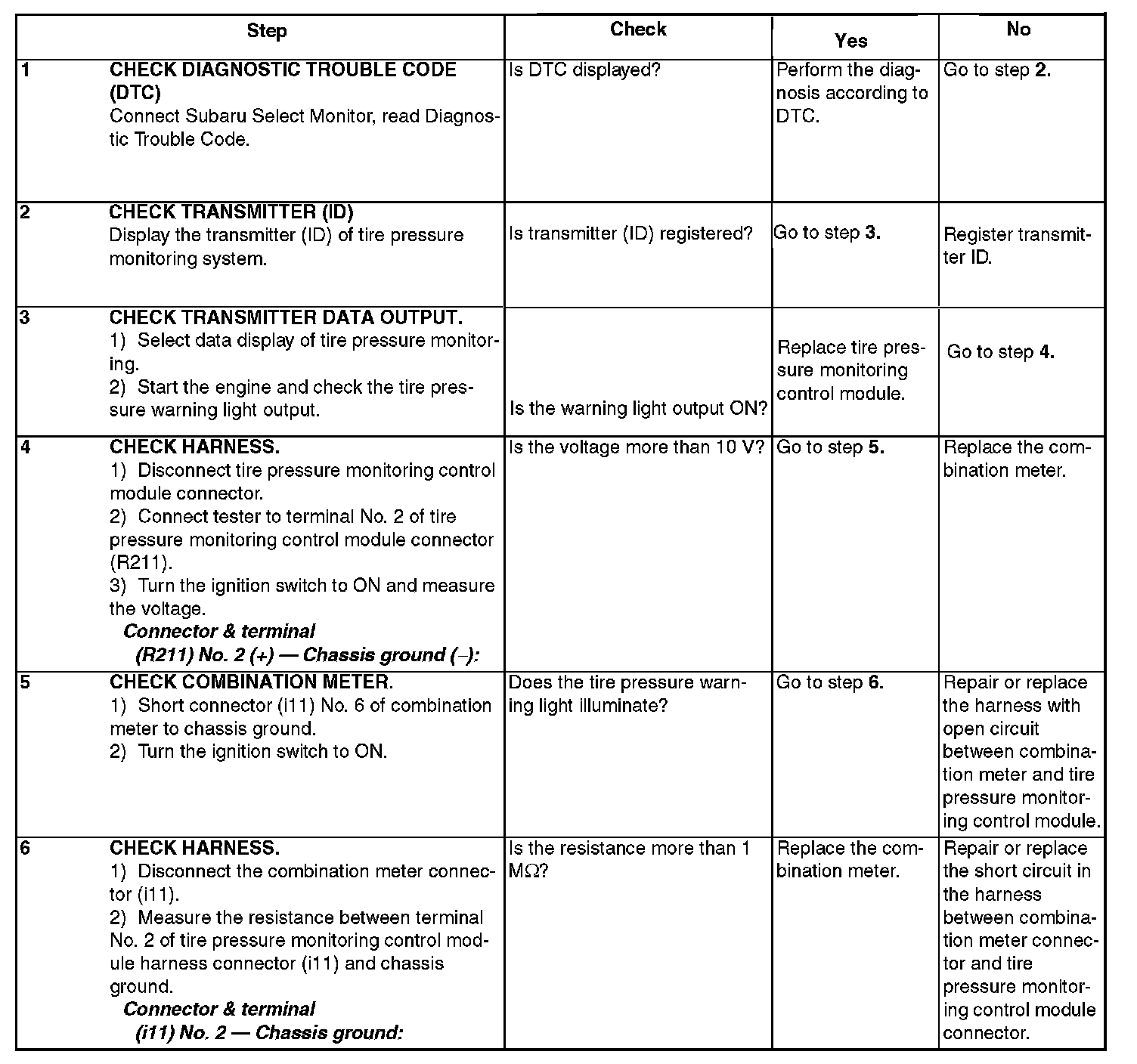

Step 1 - 6:
