Home >> Subaru >> 2005 >> Legacy F6-3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> GND-06

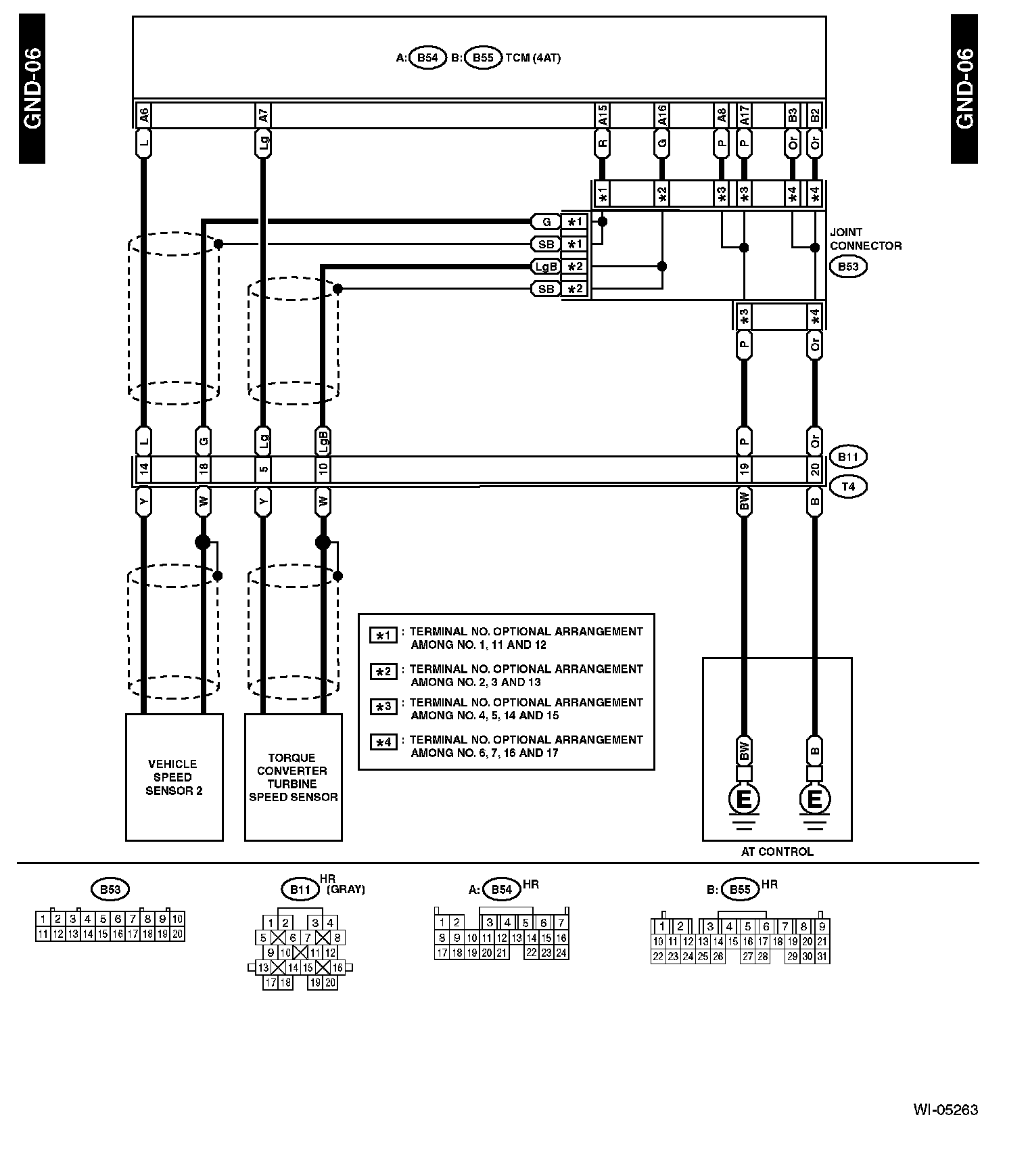

GND-06

GND-06:
