Home >> Subaru >> 2005 >> Legacy F6-3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> E/G(H6)-12

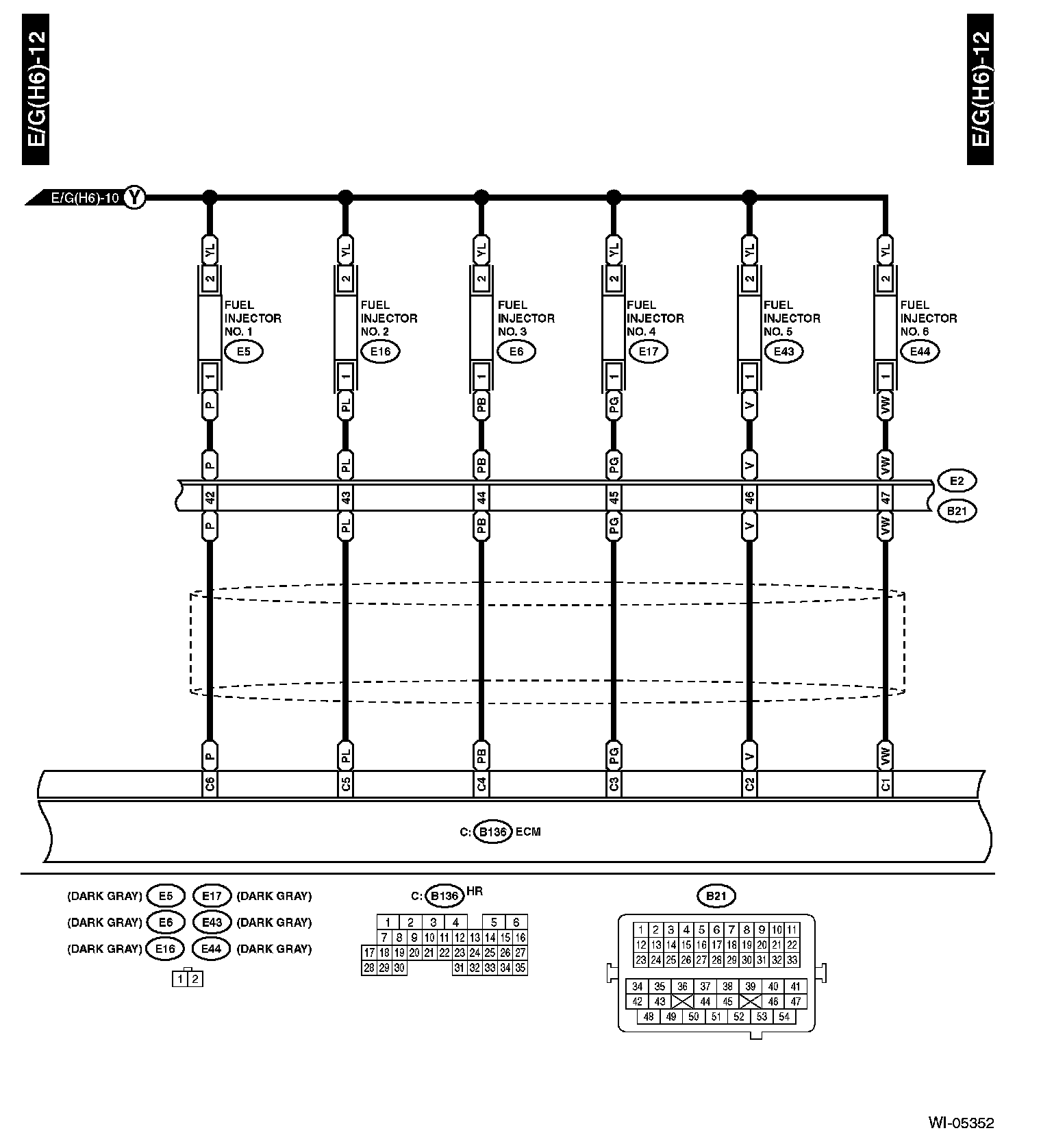

E/G(H6)-12

E/G(H6)-12:
