A: Removal

WARNING: This page is about a different variant/trim than selected.

WARNING:

NOTE: Fuel level sensor is built in fuel pump assembly.

Remove the fuel pump assembly. < Ref. to REMOVAL , Fuel Pump. >
Disconnect the connector from the fuel pump bracket.

Fig 1: Disconnecting Connector From Fuel Pump Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel temperature sensor.

Fig 2: Removing Fuel Temperature Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which installs the fuel level sensor on mounting bracket.

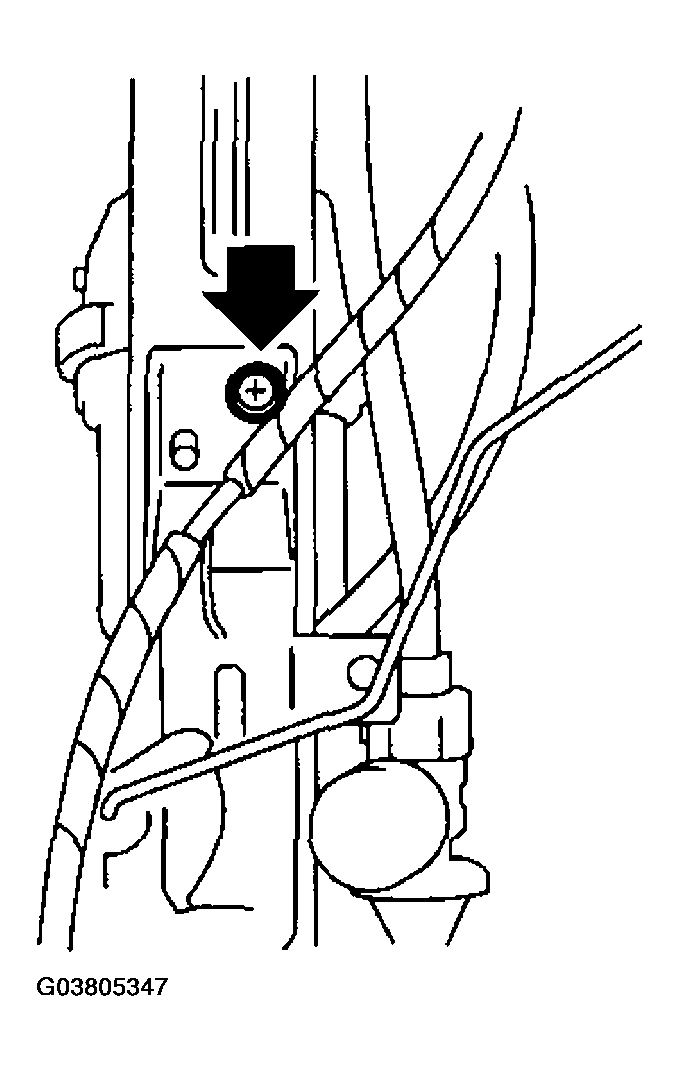

Fig 3: Removing Bolt
Courtesy of SUBARU OF AMERICA, INC.
