Intake - Induction (H4DOTC): Intercooler: Removal

Disconnect the PCV hose from PCV pipe.

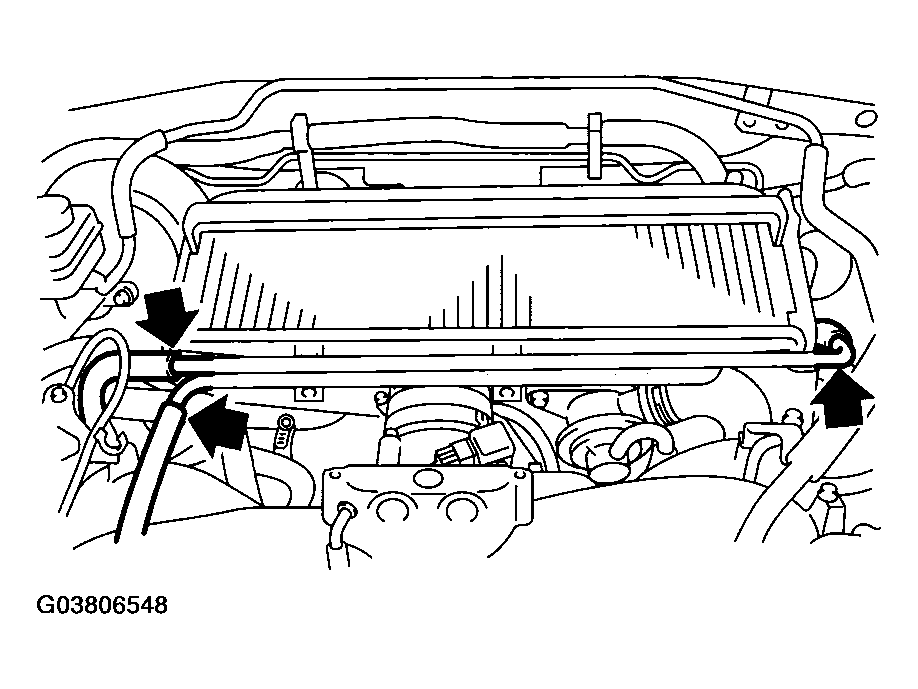

Fig 1: Disconnecting PCV Hose From PCV Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove the PCV pipe from intercooler.

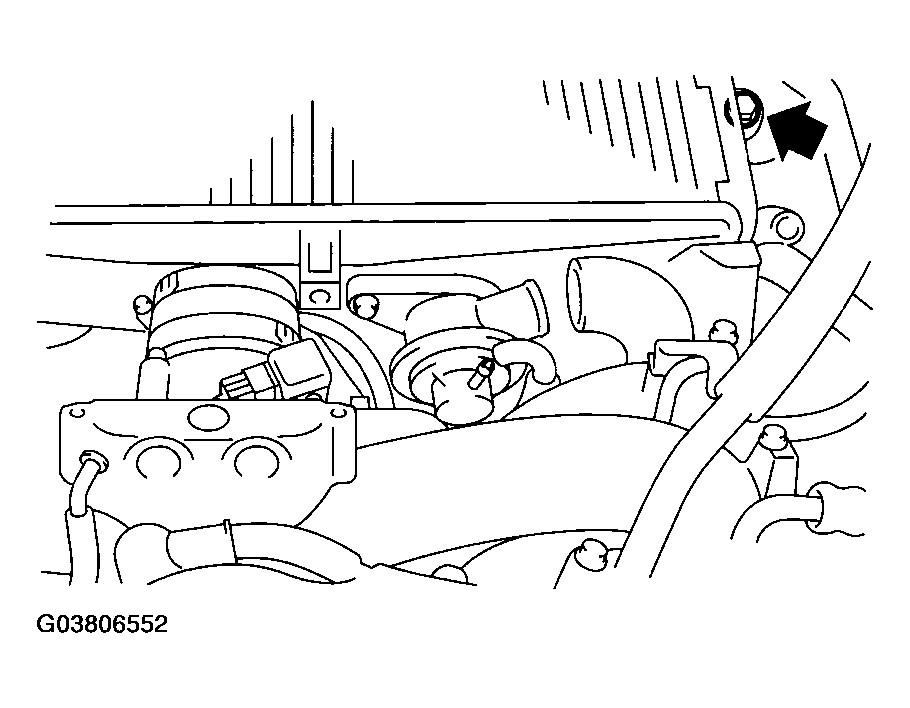

Fig 2: Removing PCV Pipe From Intercooler
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the hose from air bypass valve.

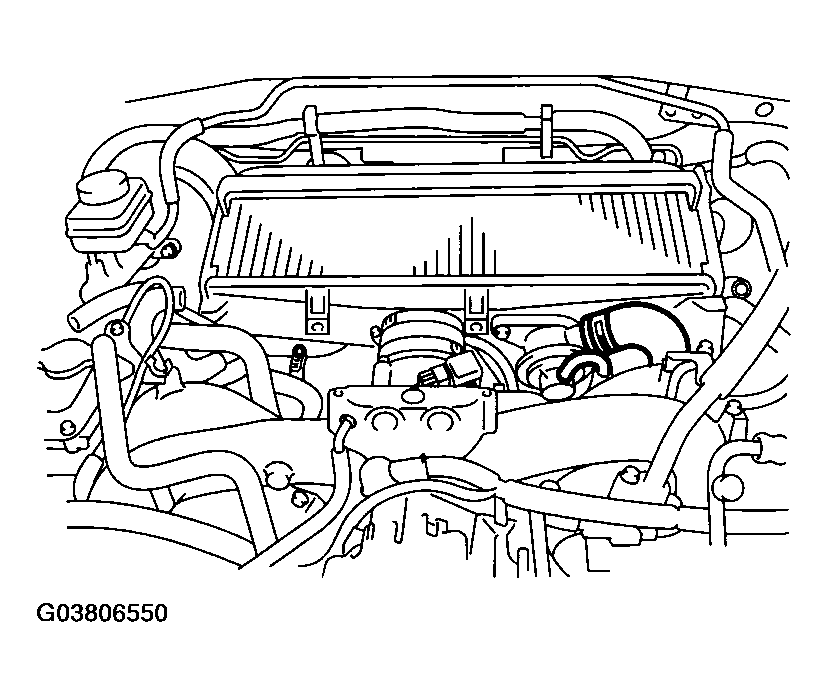

Fig 3: Disconnecting Hose From Air By-Pass Valve
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which secure intercooler to bracket.

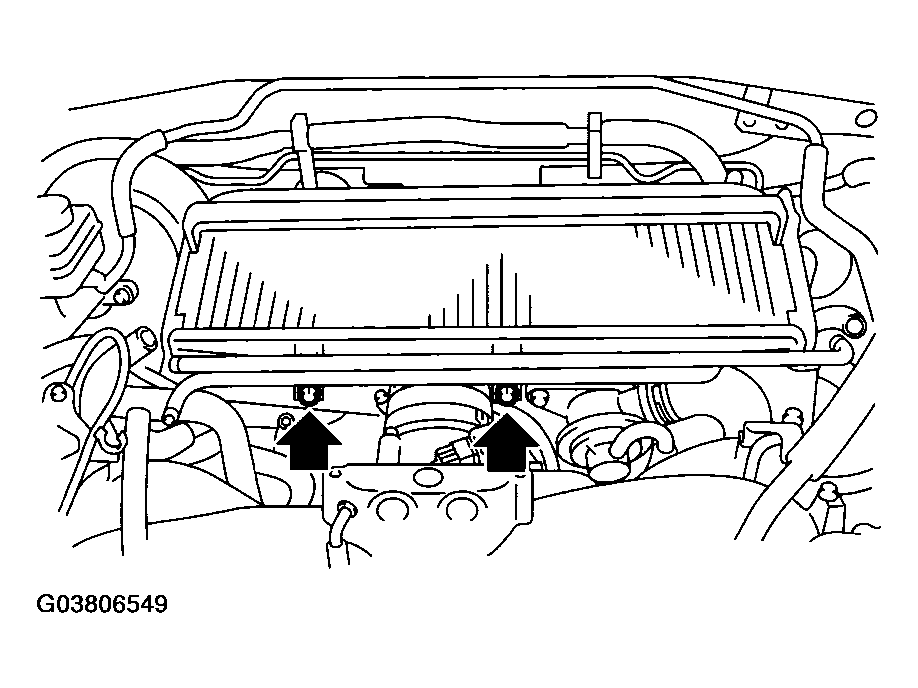

Fig 4: Removing Bolts
Courtesy of SUBARU OF AMERICA, INC.

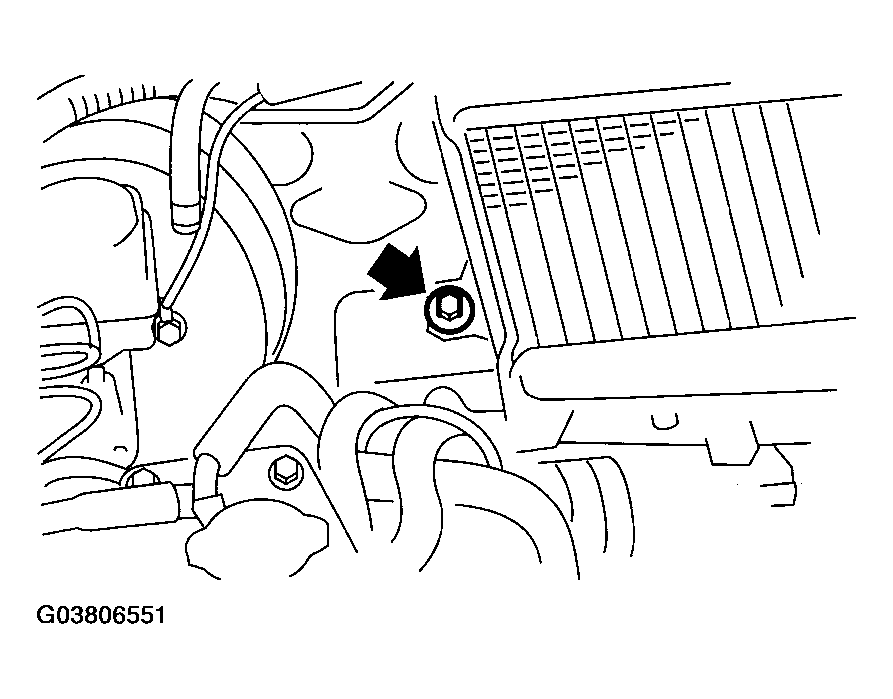

Fig 5: Removing Bracket Bolt
Courtesy of SUBARU OF AMERICA, INC.
Loosen the clamp (A) which connects turbocharger and intercooler duct.
Loosen the clamp (B) which connects throttle body and intercooler.

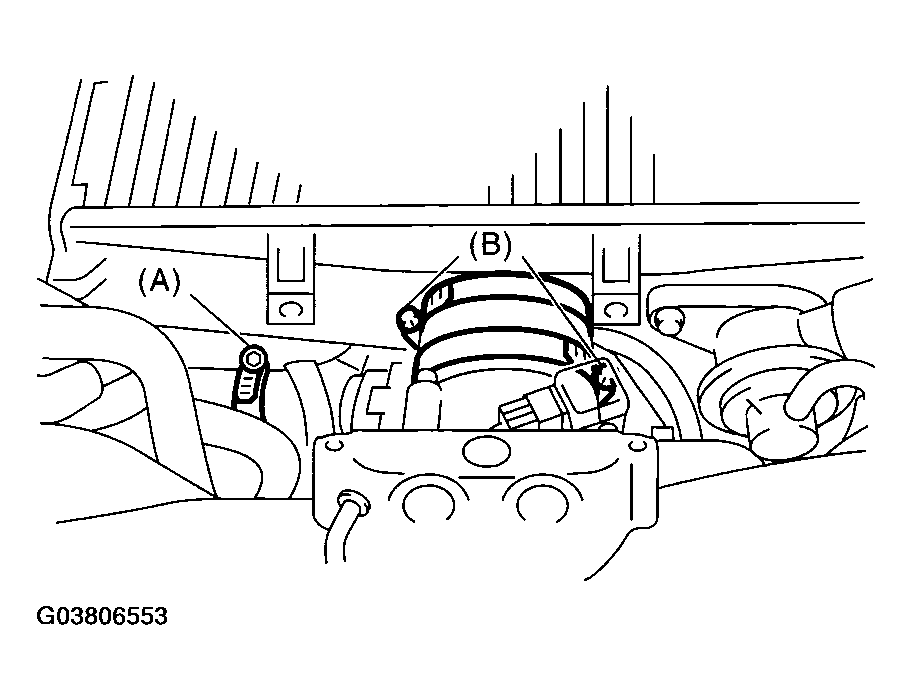

Fig 6: Loosening Clamp
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the intercooler duct from turbocharger.
Remove the intercooler from throttle body.
