Intake - Induction (H4DOTC): Turbocharger: Removal

Set the vehicle on a lift.
Disconnect the ground cable from battery.

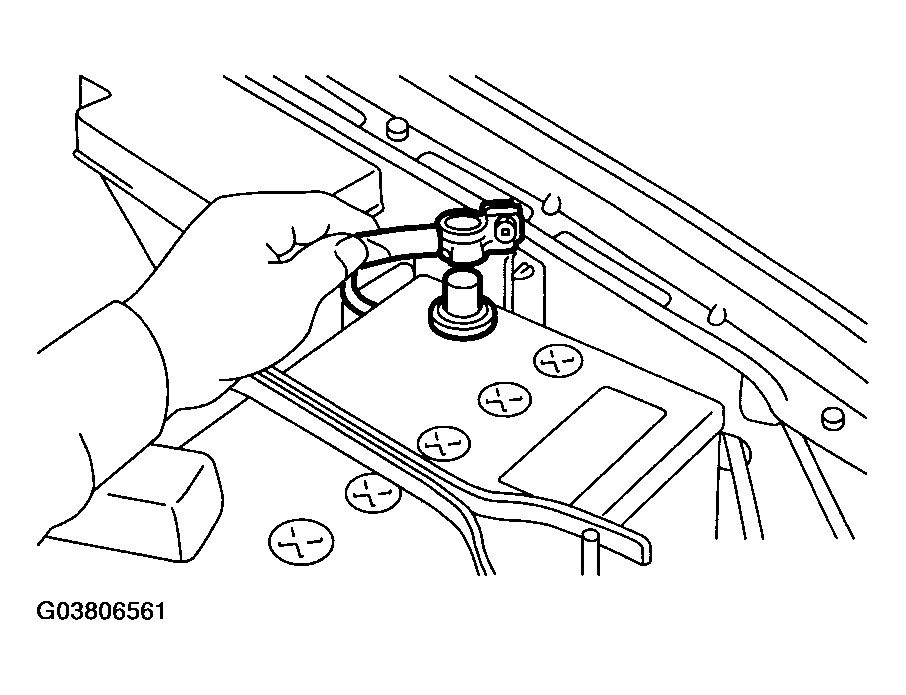

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the center exhaust pipe. < Ref. to A: REMOVAL , Center Exhaust Pipe. >
Lower the vehicle.
Separate the turbocharger joint pipe from turbocharger.

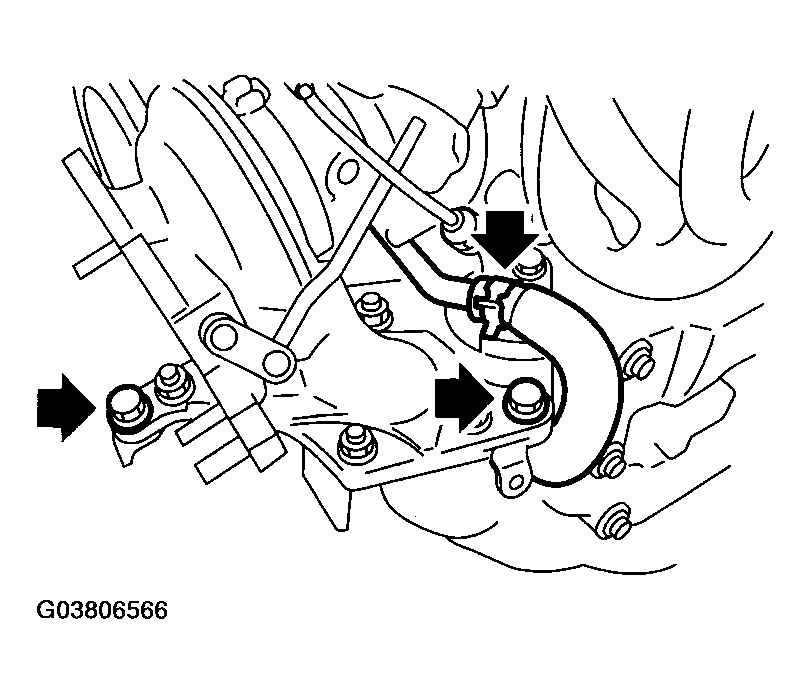

Fig 2: Separating Turbocharger Joint Pipe From Turbocharger
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the engine coolant hose which is connected to coolant filler tank.

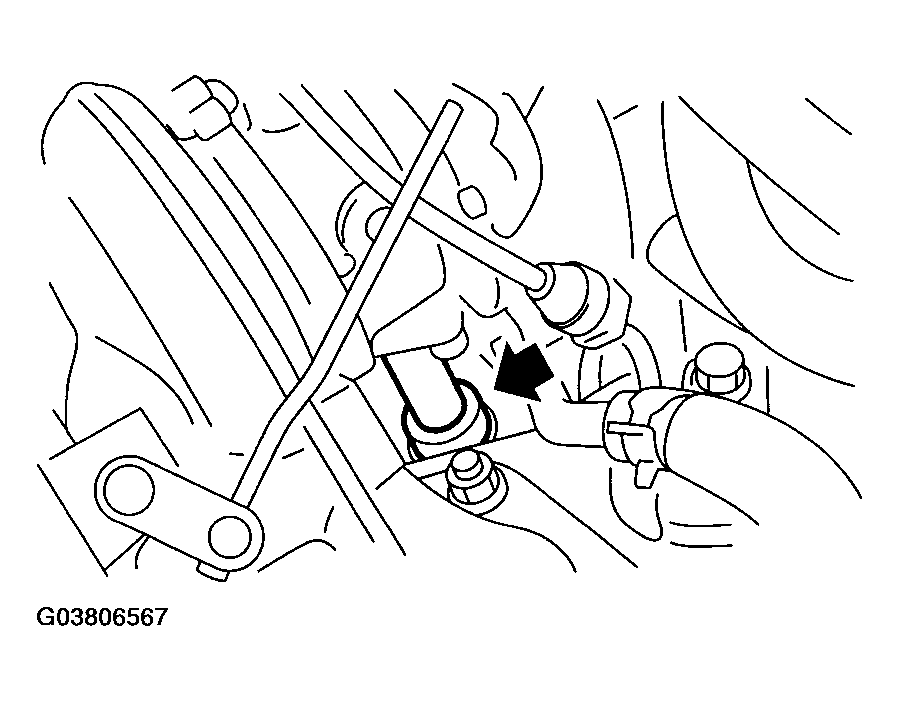

Fig 3: Disconnecting Engine Coolant Hose
Courtesy of SUBARU OF AMERICA, INC.
Loosen the clamp which secures turbocharger to intake duct.

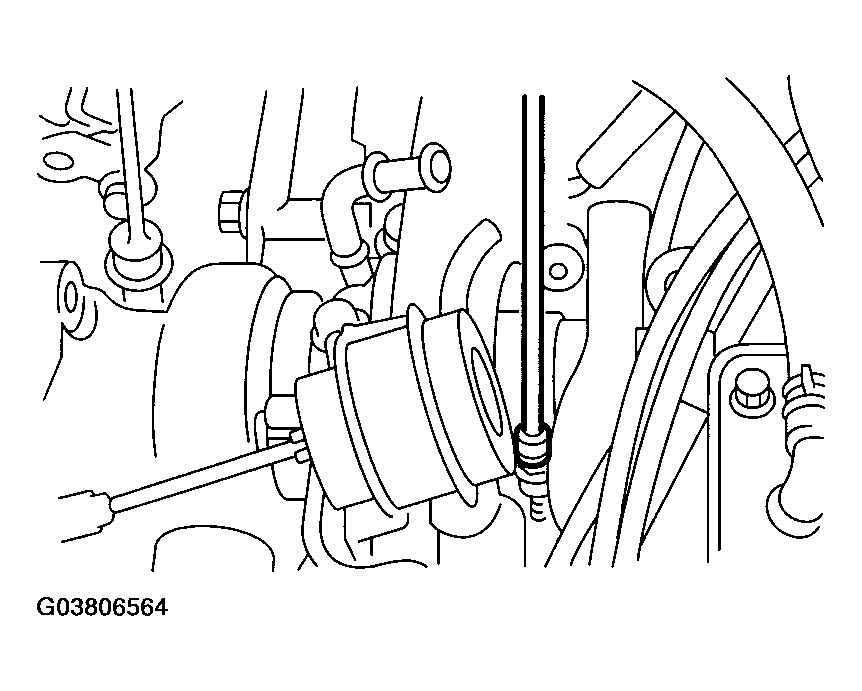

Fig 4: Loosening Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which secures bracket of oil pipe to turbocharger.
Remove the oil pipe from turbocharger.

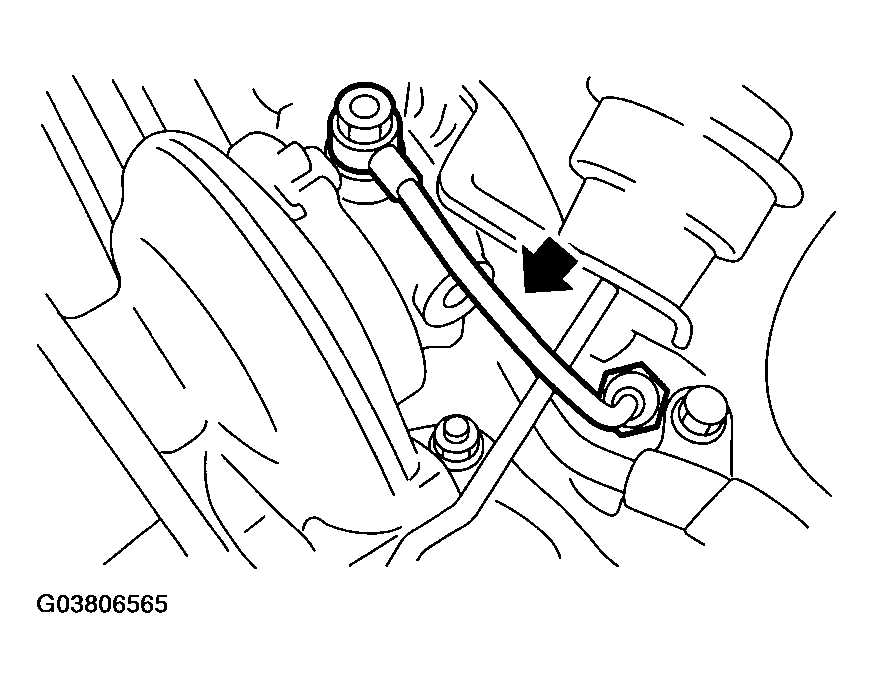

Fig 5: Removing Oil Pipe From Turbocharger
Courtesy of SUBARU OF AMERICA, INC.
Remove the turbocharger bracket.

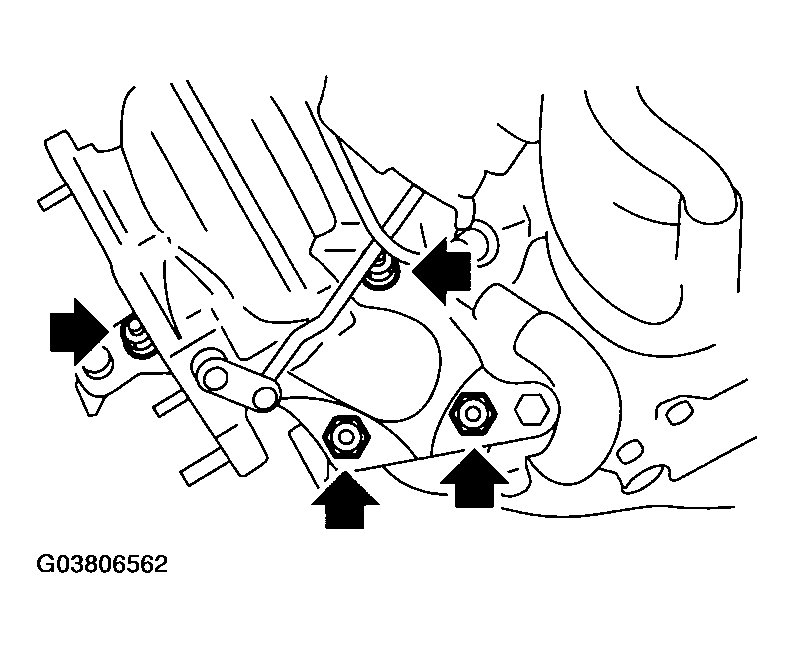

Fig 6: Removing Turbocharger Bracket
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the oil outlet hose from pipe.

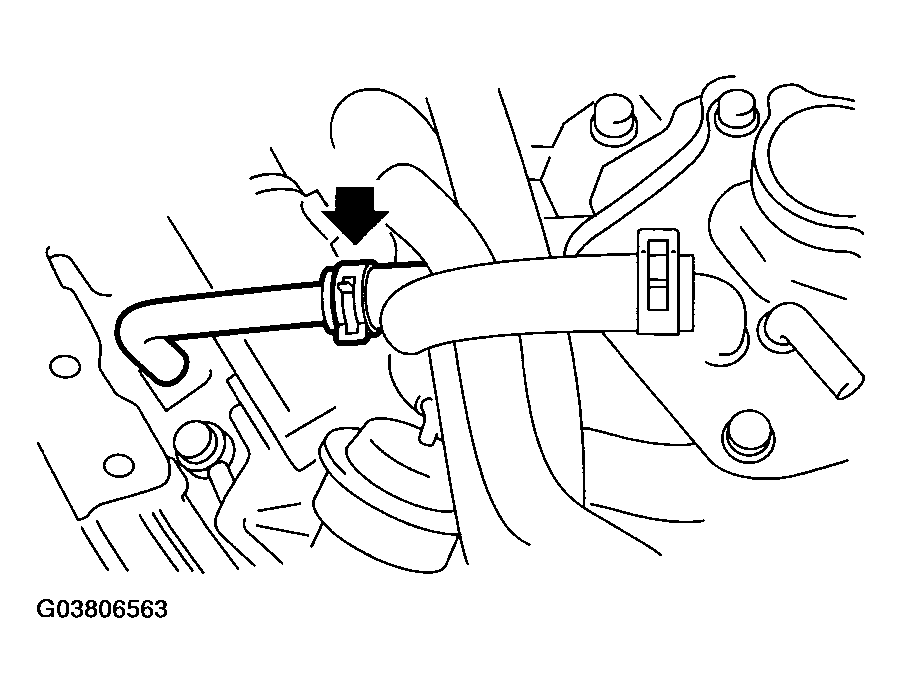

Fig 7: Disconnecting Oil Outlet Hose From Pipe
Courtesy of SUBARU OF AMERICA, INC.
Take out the turbocharger from engine compartment.
