Intake - Induction (H4DOTC): Intercooler: Installation

Install in the reverse order of removal.

Tightening torque:

16 N.m (1.6 kgf-m, 11.6 ft-lb)

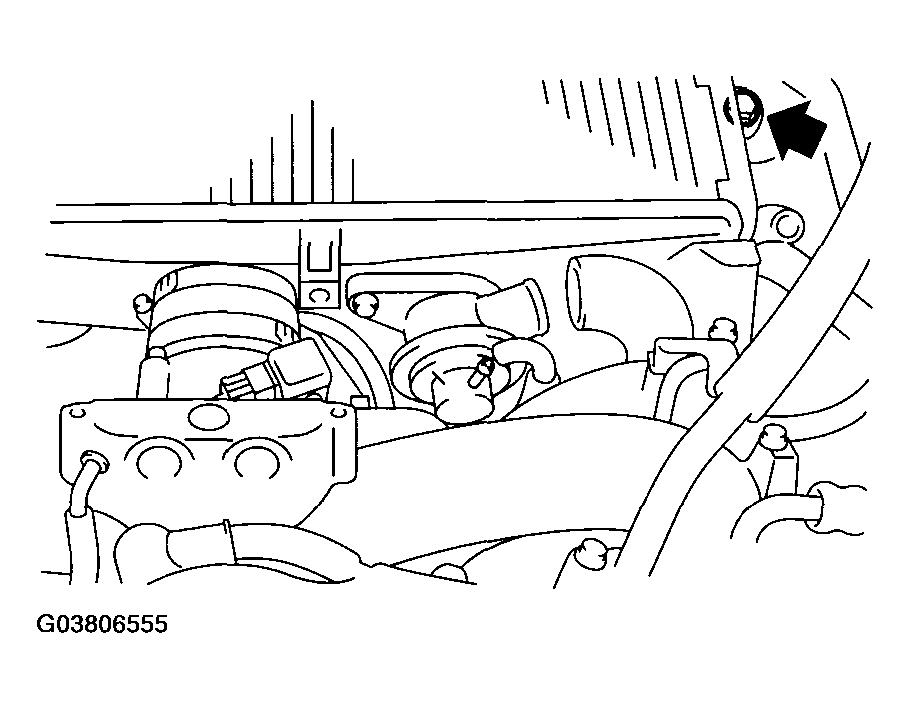

Fig 1: Installing Bolt

Courtesy of SUBARU OF AMERICA, INC.

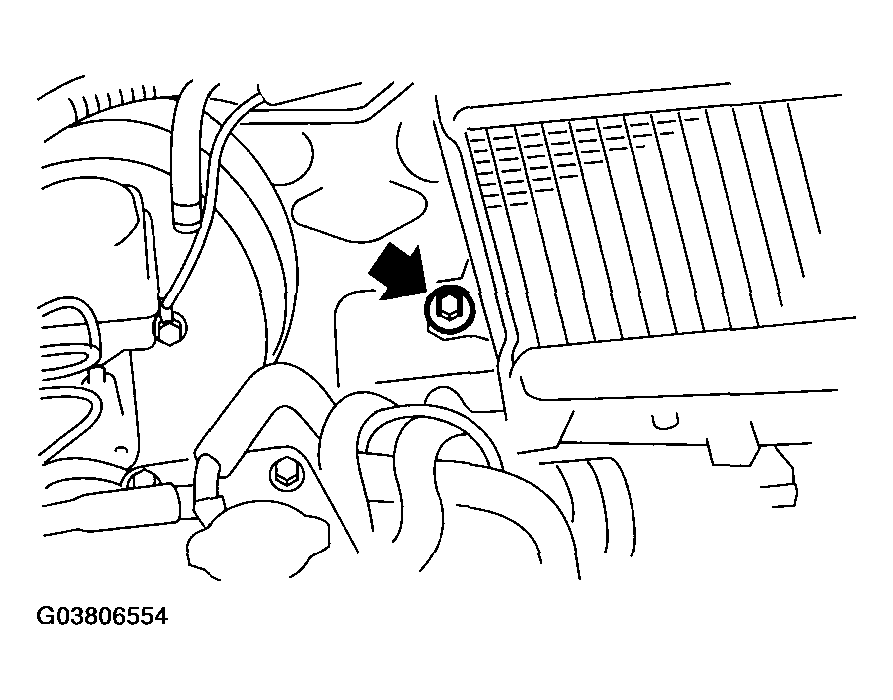

Fig 2: Installing Bracket Bolt

Courtesy of SUBARU OF AMERICA, INC.
