Intake - Induction (H4DOTC): Intercooler: Disassembly

Remove the air bypass valve from intercooler.

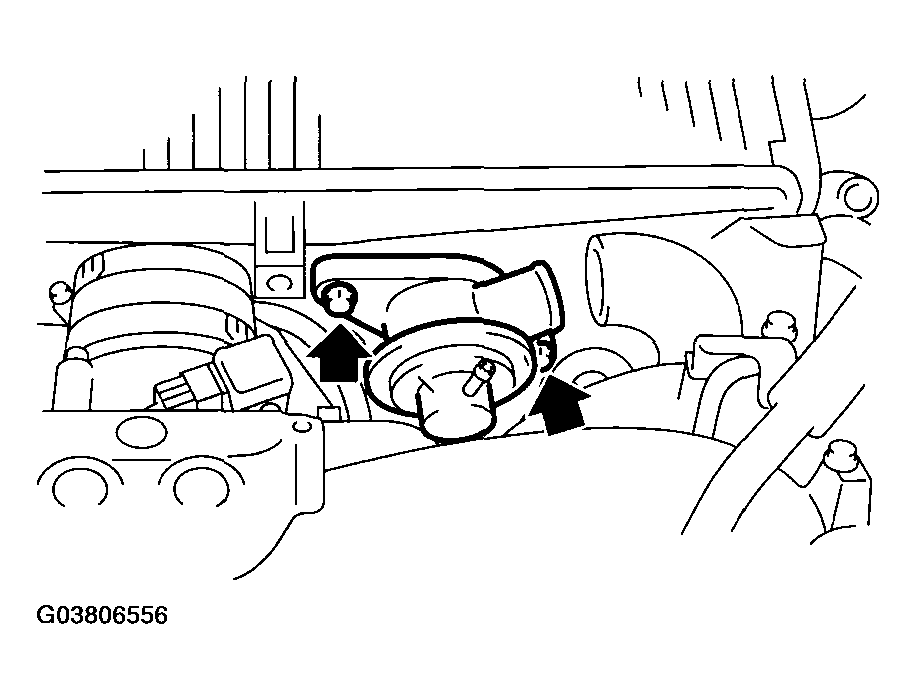

Fig 1: Removing Air By-Pass Valve From Intercooler
Courtesy of SUBARU OF AMERICA, INC.
Remove the intercooler ducts from intercooler.

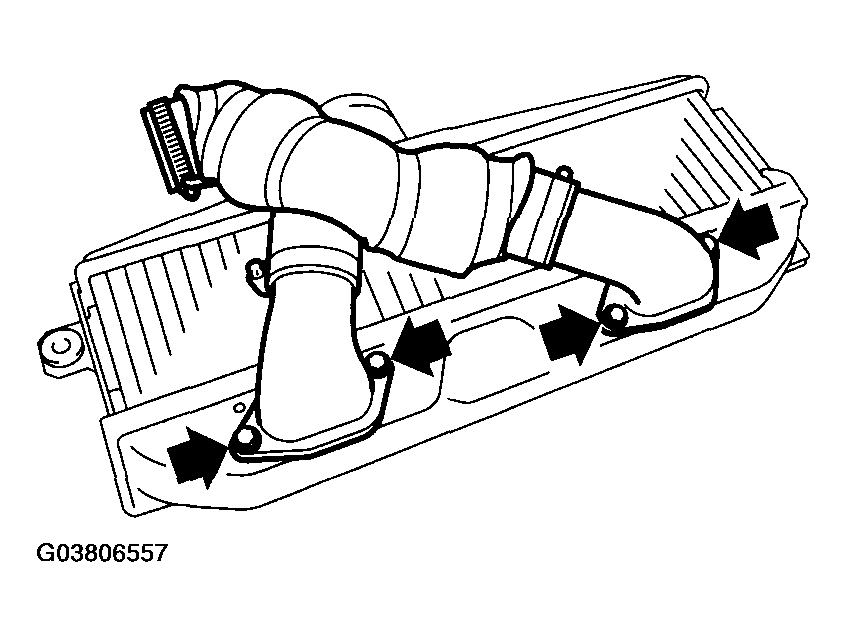

Fig 2: Removing Intercooler Ducts From Intercooler
Courtesy of SUBARU OF AMERICA, INC.
Separate the ducts.

Fig 3: Separating Ducts
Courtesy of SUBARU OF AMERICA, INC.
