Intake - Induction (H4DOTC): Intercooler: Assembly

Assemble in the reverse order of disassembly.

NOTE: Install the O-ring in proper position.

Tightening torque:

16 N.m (1.6 kgf-m, 11.6 ft-lb)

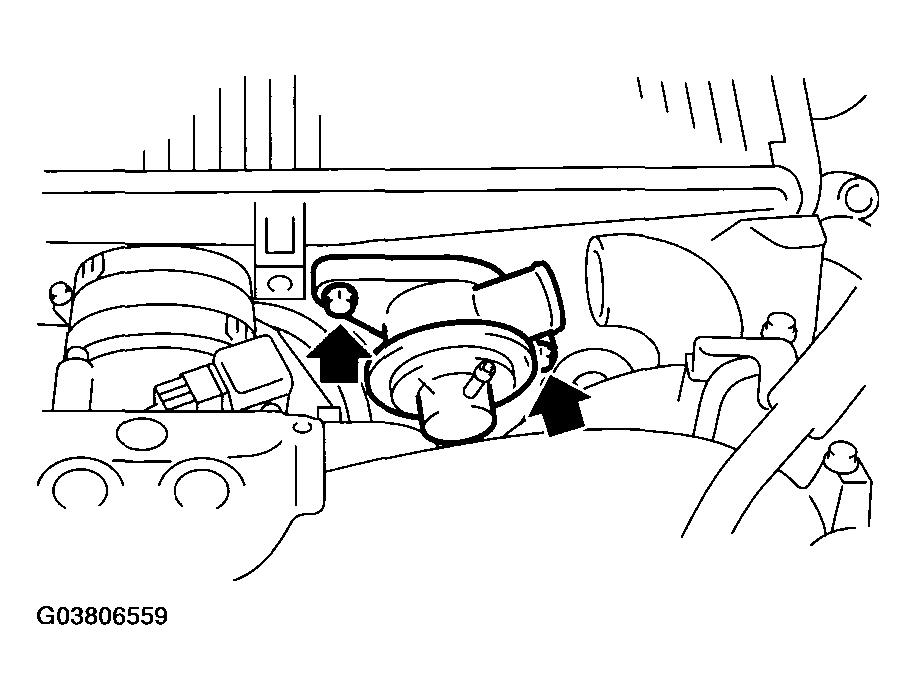

Fig 1: Installing Air By-Pass Valve

Courtesy of SUBARU OF AMERICA, INC.

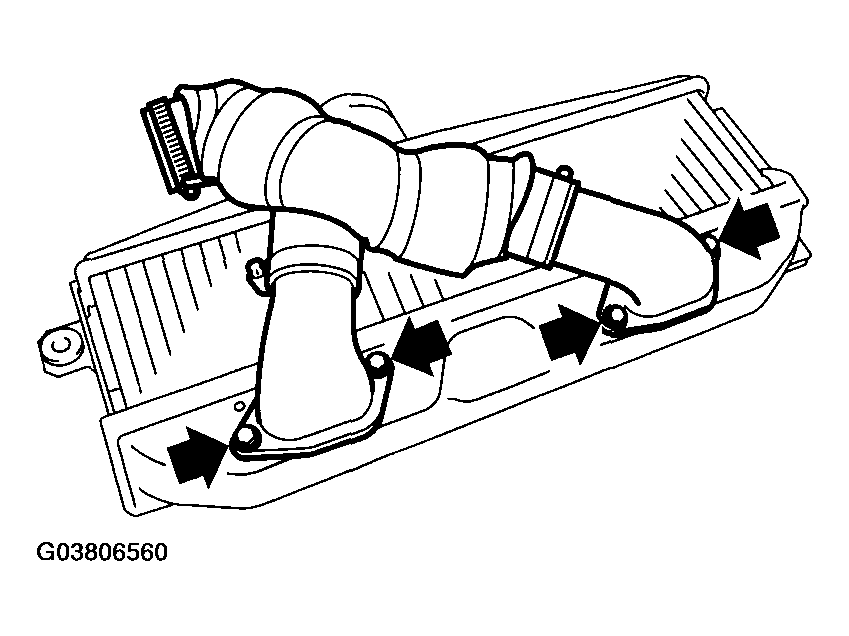

Fig 2: Installing Intercooler Ducts

Courtesy of SUBARU OF AMERICA, INC.
