Intake Duct: Removal

  1. Disconnect the ground cable from battery.

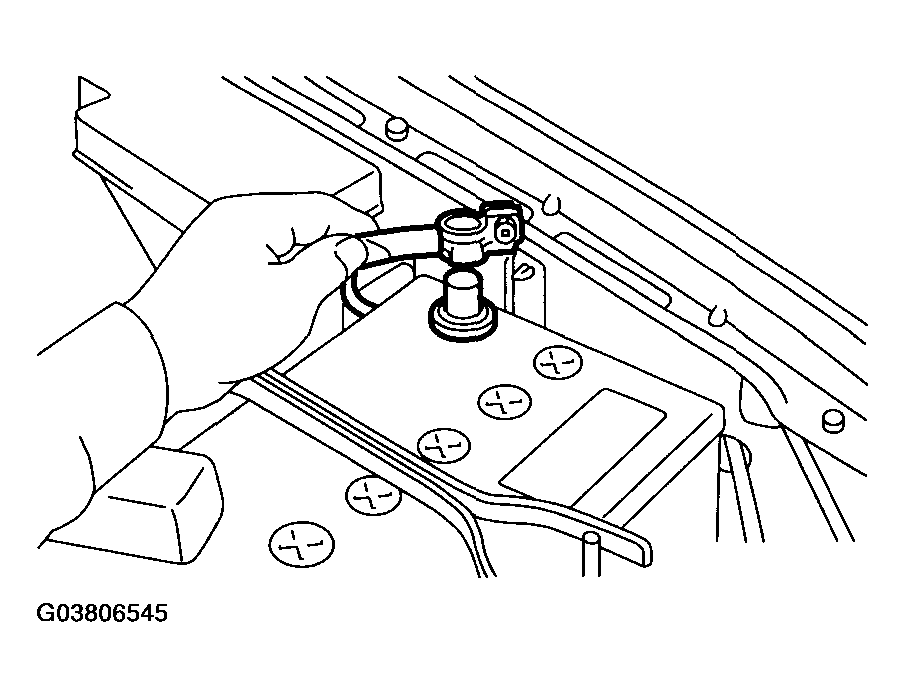

    Fig 1: Disconnecting Ground Cable From Battery
    G03806545Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the intake manifold.

    < Ref. to REMOVAL . >

  3. Remove the sensor, engine harness and fuel pipe attached to intake manifold. < Ref. to DISASSEMBLY . >
  4. Remove the intake duct from intake manifold.
    Fig 2: Removing Intake Duct From Intake Manifold
    G03806546Courtesy of SUBARU OF AMERICA, INC.
