Intake - Induction (H4DOTC): General Description: Components: Turbocharger

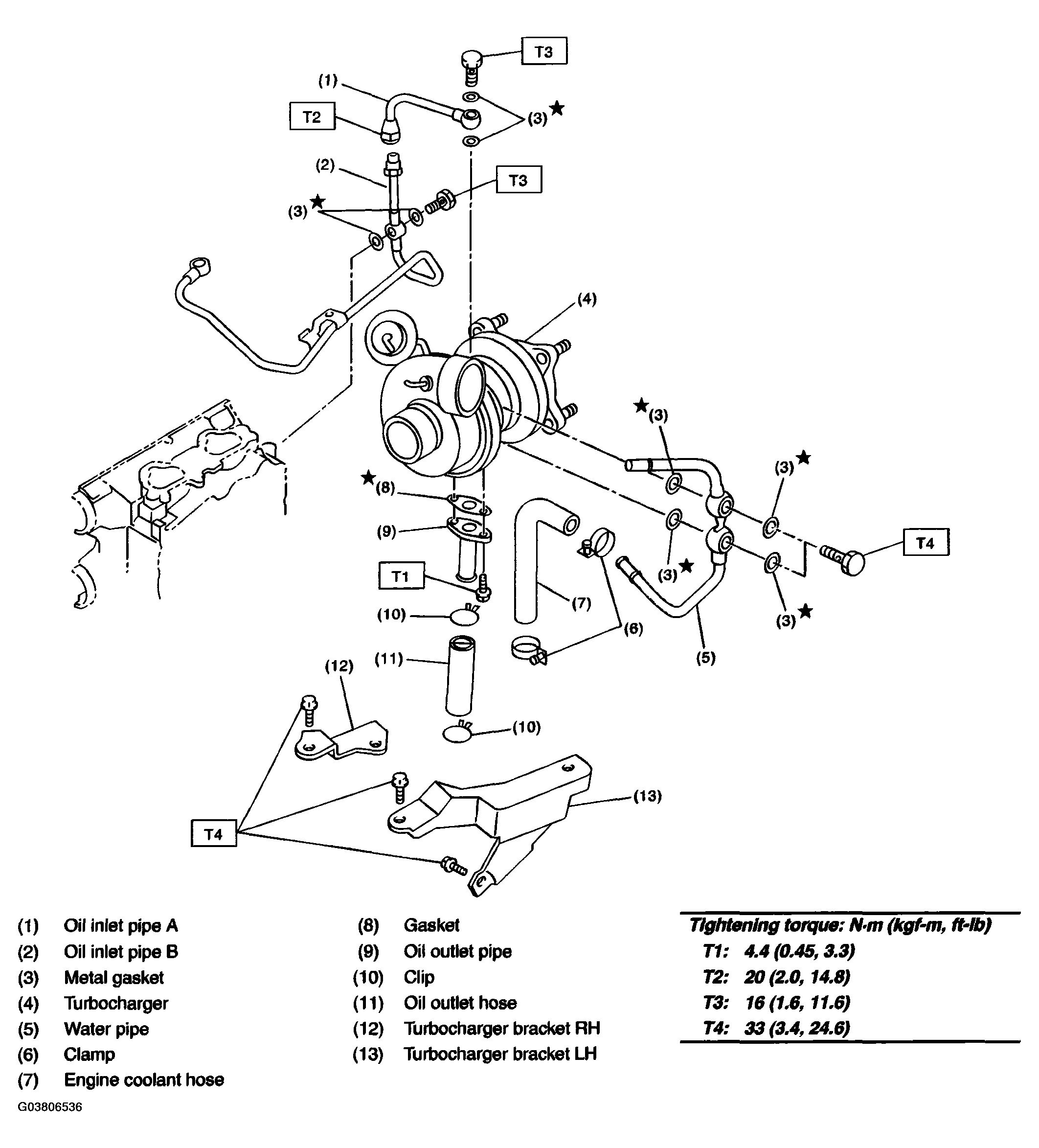

Fig 1: Identifying Turbocharger Components

G03806536

Courtesy of SUBARU OF AMERICA, INC.
