Air Intake Duct: Installation

Install in the reverse order of removal.

Tightening torque:

7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

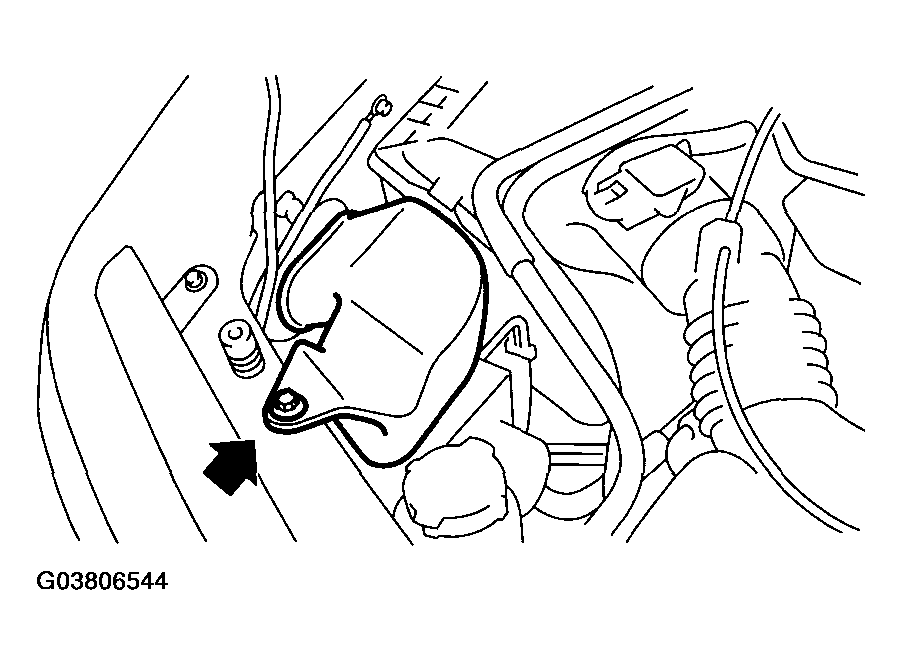

Fig 1: Installing Bolt

G03806544

Courtesy of SUBARU OF AMERICA, INC.
