Air Cleaner Case: Installation

Install in the reverse order of removal.

Tightening torque:

33 N.m (3.4 kgf-m, 24.6 ft-lb)

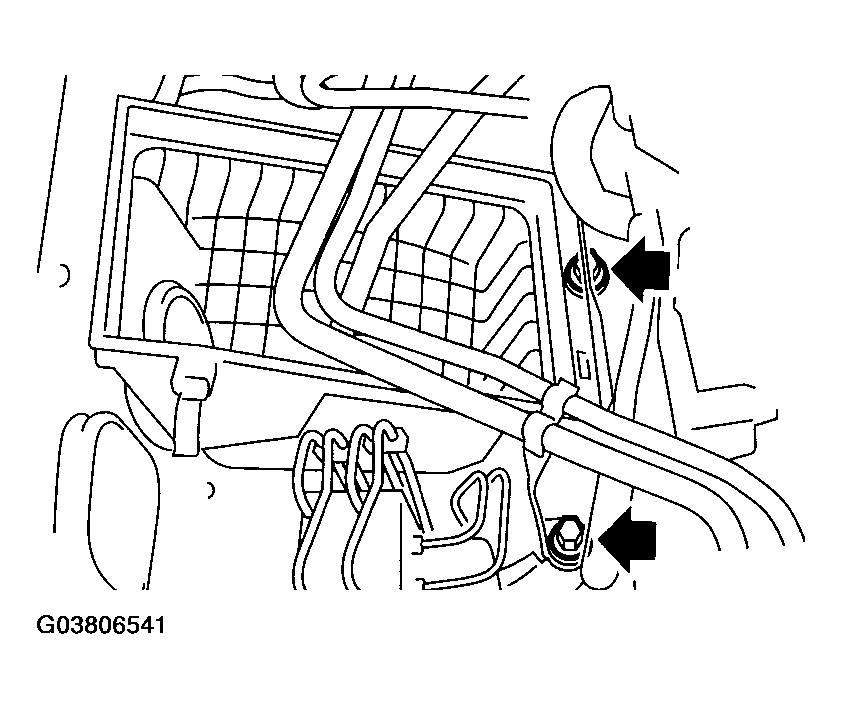

Fig 1: Installing Air Cleaner Upper Cover

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Before installing the air cleaner upper cover, align the holes with protruding portions of air cleaner lower case, then secure the upper cover to lower case.

Fig 2: Aligning Holes With Protruding Portions Of Air Cleaner Lower Case

Courtesy of SUBARU OF AMERICA, INC.
